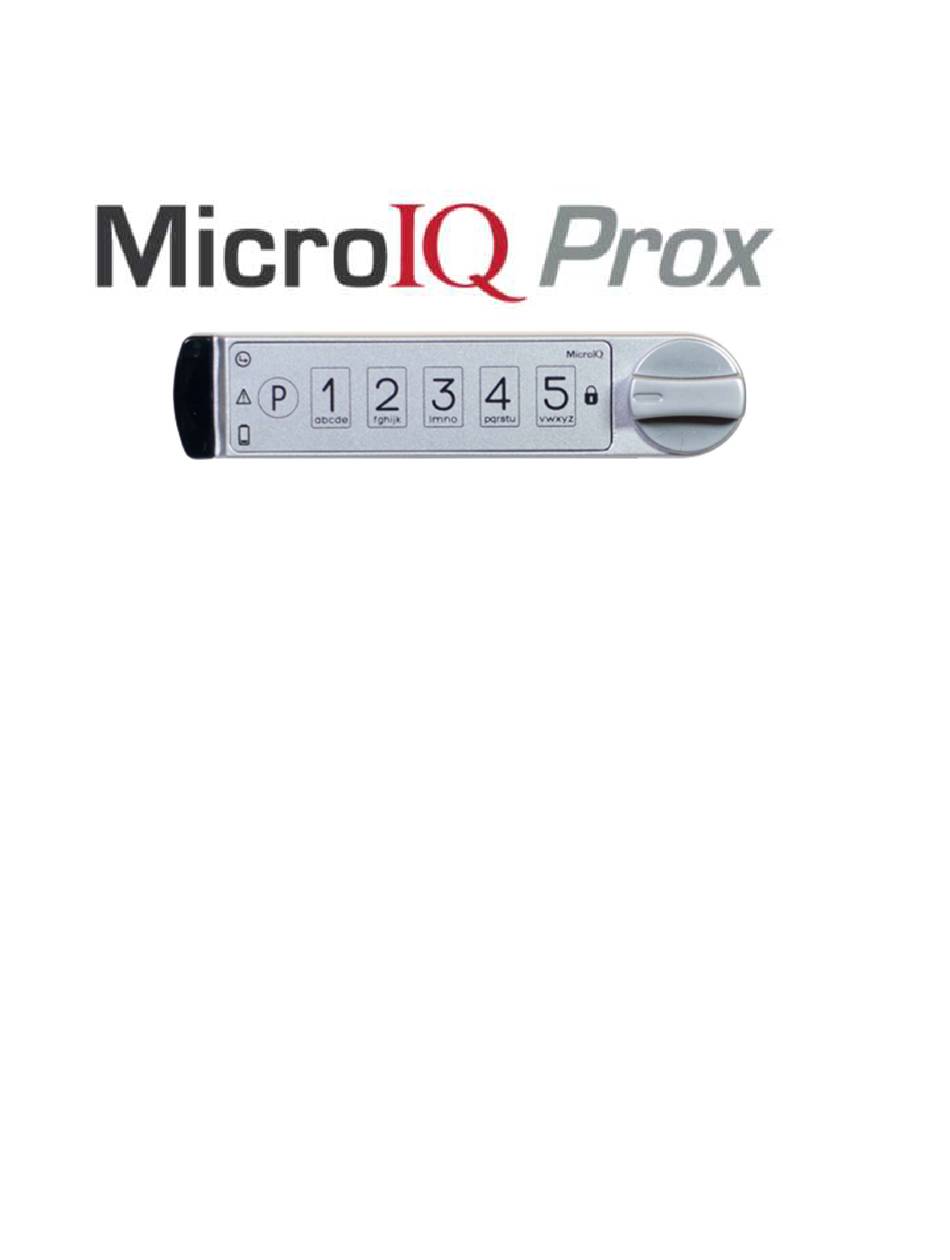

- Page 1 MODELS CW, RW, SW, UW MicroTraq App & Keypad (Local) Administration Instructions LOCKER MODE Page 1 of 13 8/27/2020...
-
Page 2: Table Of Contents
Contents Introduction ..............................3 Modes ............................... 3 Access ................................ 3 Administration ............................4 MicroTraq App Administration ........................4 Installation & App Set Up .......................... 4 Commission / Decommission Locks ......................7 Lock Identification and Set Up ........................8 Manage User Access ..........................8 Lock Functions and Commands ........................ -
Page 3: Introduction
Introduction This document details how to set up and use the MicroIQProx lock with either the MicroTraq app or the keypad on the lock. These instructions are specific to locks in locker mode. Close proximity to the lock is required. Modes The MicroIQProx lock can operate in two modes: station mode or locker mode. -
Page 4: Administration
Administration MicroIQProx locks can be set up using the MicroTraq app or the keypad. The MicroTraq app has the following administration capabilities: commission & decommission locks enroll ProxCard remove ProxCard access upload audit trails unlock command change keypad code switch operating modes MicroTraq App Administration Installation &... - Page 5 Next, download and install the MicroTraq app: Next, set up the MicroTraq app: Open the MicroTraq app when you are nearby a MicroIQProx lock (that has the battery installed). When prompted, select ALLOW in the pop-up screen. This is an Android requirement and the app will not function if you deny this request.
- Page 6 At the log in screen, enter the credentials that were provided and select OK. If the username or password is not valid, an error message will be displayed. Enter the correct credentials and note it may take up to 30 seconds for the error message to clear.
-
Page 7: Commission / Decommission Locks
Commission / Decommission Locks Each lock must be ‘commissioned’ to use the MicroTraq app. Commissioning the lock will add the lock to the users account and will enable the communication between the lock and the MicroTraq app. In the MicroTraq app: Turn ON the ‘scanning for locks’... -
Page 8: Lock Identification And Set Up
Lock Identification and Set Up In the MicroTraq app, turn ON the scanning for locks function. If the lock is not detected, push the P button on the MicroIQProx lock keypad to enable to connection. In the app, press on the lock name for 3 seconds. -
Page 9: Lock Functions And Commands
Lock Functions and Commands Use the OPS tab to operate the lock. Functions include: Unlock Switch operating modes Add or remove ProxCards (user and master) Delete locks Auto Connect Feature The auto connect feature of the MicroTraq app is found in settings (gear icon). When ON, the app will automatically connect to nearby locks. -
Page 10: Computer Viewer
Computer Viewer Audit history can be viewed from a computer by installing an app. The app requires Windows and an internet connection. Download the microIQLogViewerSetup.exe from the link provided in your email. Double click on the download file to install At the Window Defender Smart Screen, click on “More Info”... -
Page 11: Keypad Administration
Keypad Administration Set up and administration of the MicroIQProx can also be performed directly with the keypad. If the lock was commissioned with the MicroTraq app, it will have to be decommissioned in order to use the keypad for programming. Programming Chart Page 11 of 13 8/27/2020... -
Page 12: Examples
Turn the knob to the locked position. Unlocking With a ProxCards: Present the valid ProxCard to the lock. The MicroIQ icon should illuminate. If not, press the P to wake the lock and present the ProxCards card again. The green LED will illuminate and the knob can be turned to the unlocked position. -
Page 13: Bypass The Active User Code Or Proxcard
Bypass the Active User Code or ProxCard With the master code: Press and hold the P on the lock keypad for 5 seconds. The green LED will illuminate. Enter 55 and then P on the lock keypad. The green and yellow LEDs will illuminate. Enter the master code and then P on the lock keypad.
