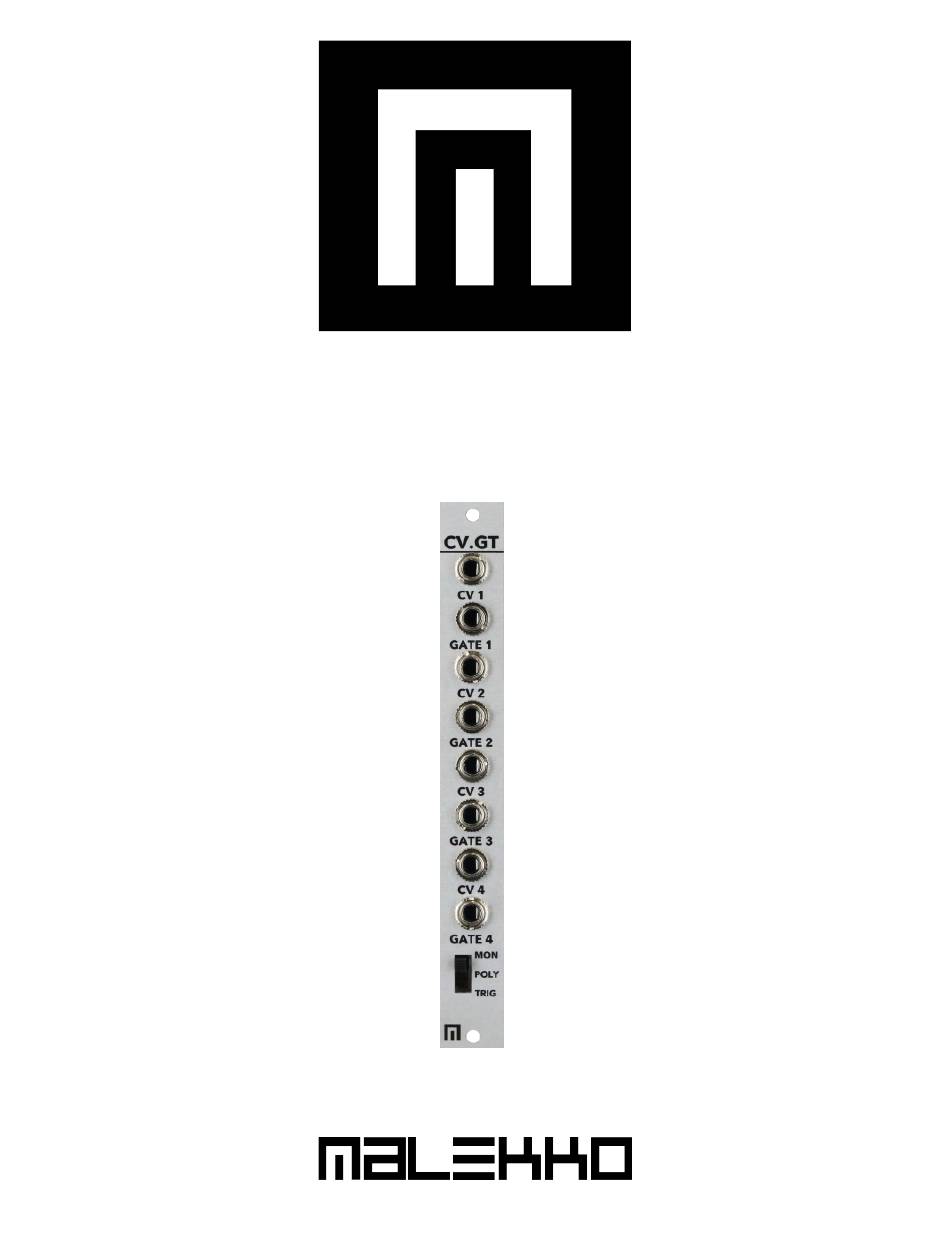

- Page 1 CV/GATE MANUAL V.1 ww w. m a l ek k o h e a vy i n d u s try.co m 814 SE 14TH AVENUE PORTLAND OR 97214...
- Page 2 CV/GATE MANUAL V.1 TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION HOW TO USE WARRANTY MALEKKOHEAVYINDUSTRY.COM...
- Page 3 SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 3HP, 30mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm jacks): 0-5V Logic I/O MAX CURRENT: +12V: 19mA -12V: 1mA +5V: n/a PG. 1 MALEKKOHEAVYINDUSTRY.COM...
- Page 4 Power up! If your case does not turn on properly then you have installed the module incorrectly. Simply power down and make sure to follow the diagram when reconnecting the module. POWER: LINE UP RED STRIPE TO THIS SIDE 6-PIN CONNECTION TO MALEKKO SYNC SYNC CV GATE PG. 2...
- Page 5 DESCRIPTION CV/Gate is an expander module for Malekko Sync (connects via 6-pin cable includ- ed). Malekko SYNC sends incoming MIDI information or trigger information to CV/GATE expander outputs in 3 selectable modes (Mono, Poly and Drum Trigger Modes). Features include:...
- Page 6 Malekko Sync module) will output to CV 1 + GATE 1 and so forth. Make sure you have the MIDI tracks in your DAW to output to Malekko Sync CV output + GATE output #3 appropriately. POLY MODE: Incoming MIDI...
- Page 7 WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
