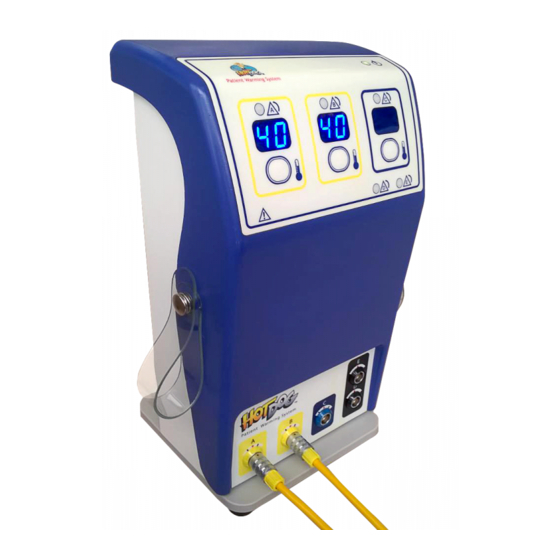

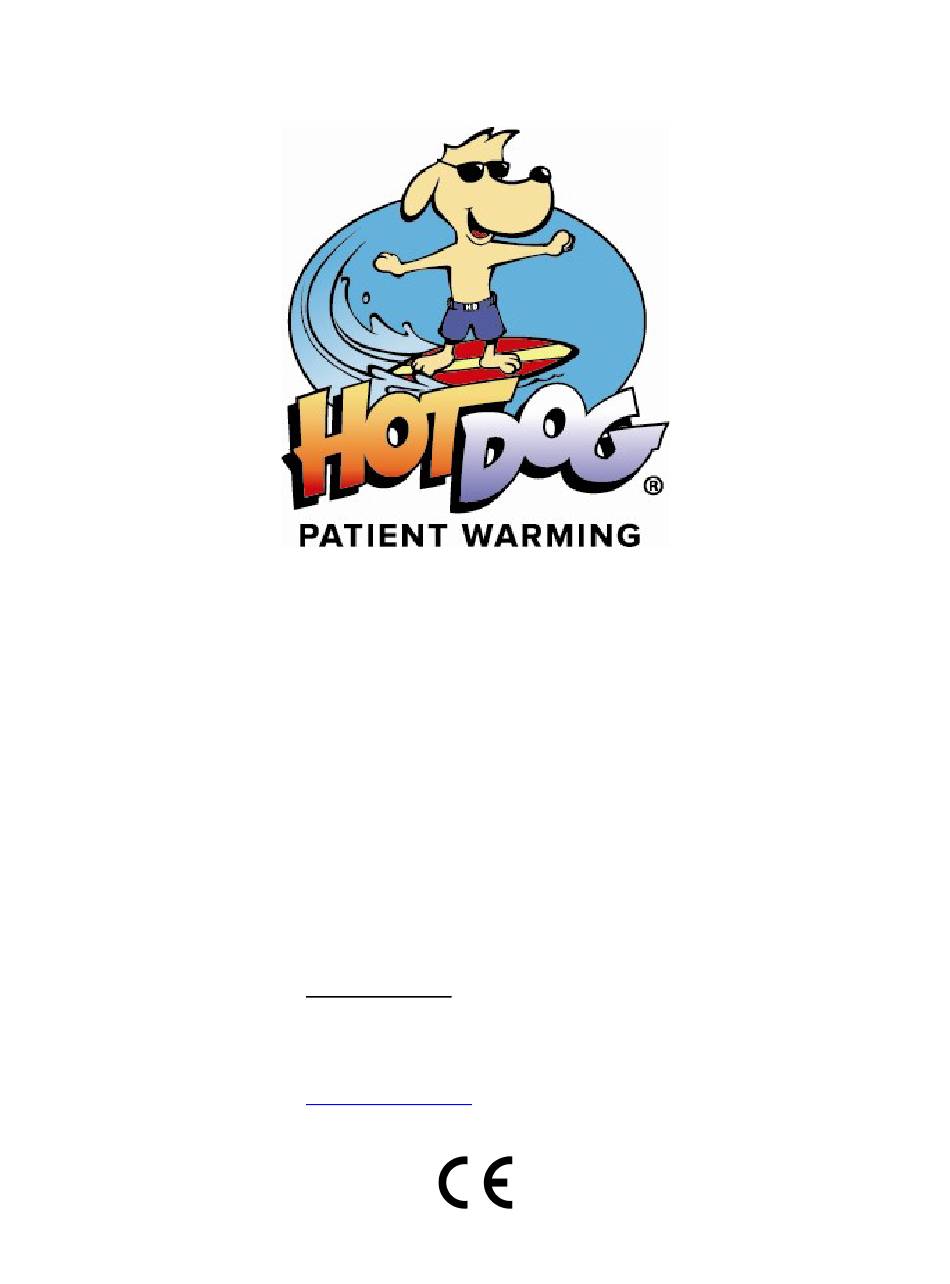

- Page 1 HotDog Veterinary Patient Warming System Controller Model WC52-R(VET) User Manual www.vetwarming.com Manufactured by: Augustine Temperature Management, LLC 6581 City West Parkway Eden Prairie, MN 55344 USA TEL 952.465.3500 FAX 952.465.3501 www.vetwarming.com...
-
Page 2: Table Of Contents
Warnings ..................3 Precautions ..................4 Initial Setup & Assembly ..............4 Contents ..................4 Mounting the HotDog Controller to an IV Pole ........5 Control Panel Features & Operating Modes ........... 6 Instructions for Use ................8 Pressure Reduction ................9 Dental Procedures ................ -
Page 3: Introduction
Page 3 INTRODUCTION Device Description The HotDog Veterinary Patient Warming System consists of a Controller, and a reusable Warming Blanket. It is a veterinary product for use only with animals. Controller: Allows you to select the temperature for your Warming Blankets. The WC52R (VET) operates 2 Blankets. -
Page 4: Precautions
1—HotDog Controller Model WC52R (Vet) 1—IV pole mounting hardware, including the clamp and knob 1—Mains power cord Reusable HotDog accessories/ connecting cables part A101 (Vet) are sold separately. If you intend to connect two Blankets, two cables will be needed... -
Page 5: Mounting The Hotdog Controller To An Iv Pole
Veterinary Controller Page 5 Mounting the HotDog Controller to an IV Pole After removing the controller from the box, it can be mounted to an IV pole. Place the Controller IV pole clamp around the IV pole and turn the clamp handle clockwise until securely tightened. To remove the Controller from the IV pole, turn the clamp handle counterclockwise until the unit releases. - Page 6 User Manual: HotDog Veterinary Controller Page 6 How to Operate the Controller (For information about Warming Blankets, refer to the Warming Blanket Instructions for Use.) Plug the gray power cord into the Controller and the electrical outlet. 2. Turn the Controller on. The power switch is located on the back of the Controller.
- Page 7 User Manual: HotDog Veterinary Controller Page 7 1. Plug in Port A for a single Warming Blanket. When the cable is properly inserted into Controller, an audible sound indicates that the Blanket is properly connected and the port icon illuminates on the screen.
-
Page 8: Instructions For Use
User Manual: HotDog Veterinary Controller Page 8 GENERAL INSTRUCTIONS USE UNDER THE DIRECT SUPERVISION OF A CLINICIAN. 1. Select the Warming Blanket size that is the best fit for your patient, covering as much of your patient as possible. 2. Position the Blanket under, over, or around the patient as desired, with the black side facing the patient. -
Page 9: Pressure Reduction
The Warming Blanket is not a pressure-reduction device. Steps must be taken to mitigate heat-on-pressure situations when the Blanket is under the patient on hard surfaces, surgery tables, or dental grates. Use a pressure-reduction device (such as the HotDog Pressure Reduction Pad) between the Blanket and the hard surface. -
Page 10: Frequently Asked Questions
Blankets do not contain carbon fiber or ink, which could break and create hot spots. 2. Why is HotDog warming safe? HotDog’s Controller is really a microprocessor with many built-in safety features. It monitors connected warming devices at the patient and will automatically stop operation if readings are outside of safe parameters. -
Page 11: Error Codes: Alerts And Alarms
Use a pressure-reduction device (such as the HotDog Pressure Reduction Pad) between the Blanket and the hard surface to eliminate pressure points from occurring, especially at bony prominences. - Page 12 User Manual: HotDog Veterinary Controller Page 12 Error Error Description Problem Solving Steps Codes When the temperature exceeds one degree above the set point, the Alarm sounds and power is removed from the Warming Blanket. Unplug the Blanket to reset the Alarm. Wait 5 minutes and Over-Temperature then reconnect the Blanket.
-
Page 13: Definition Of Product Symbols
User Manual: HotDog Veterinary Controller Page 13 DEFINITION OF PRODUCT SYMBOLS See information for See IFU for Warnings and Temperature Sensor use at the provided Precautions website. Natural Rubber Latex Alarm Not Sterile Free Indicates separate treatment Mains Power On... - Page 14 User Manual: HotDog Veterinary Controller Page 14 Safety System All alarm conditions are classified as Medium Priority Technical Alarms Primary Over-temp Alarm Ports A and B (Warming Blanket) Alarm sounds when temperature sensor is at set point + 1°C Port C - NA...
-
Page 15: Electromagnetic Compatibility (Emc)
Guidance and manufacturer’s declaration – electromagnetic emissions The Hot Dog Veterinary Patient Warming System is intended for use in the electromagnetic environment specified below. The user of the HotDog Veterinary Patient Warming System should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 16 Guidance and manufacturer’s declaration – electromagnetic immunity The HotDog Veterinary Patient Warming System is intended for use in the electromagnetic environment specified below. The user of the HotDog Veterinary Patient Warming System should assure that it is used in such an environment.
- Page 17 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the HotDog Veterinary Patient Warming System is used exceeds the applicable RF compliance level above, the HotDog Veterinary Patient Warming System should be observed to verify normal operation.
- Page 18 Customer Service Contact Phone: +1-952-465-3500 Email: CS@AugSurg.com HotDog is a trademark of Augustine Temperature Management, registered in the U.S. Patent & Trademark Office. Devices are protected by some or all of the following patents: (US Patents 7,543,344; 7,714,255; 7,851,729; 7,786,408; 8,062,343; 8,283,602; 8,604,391; 8,624,164;...
