Summary of Contents for Quictent GB-01

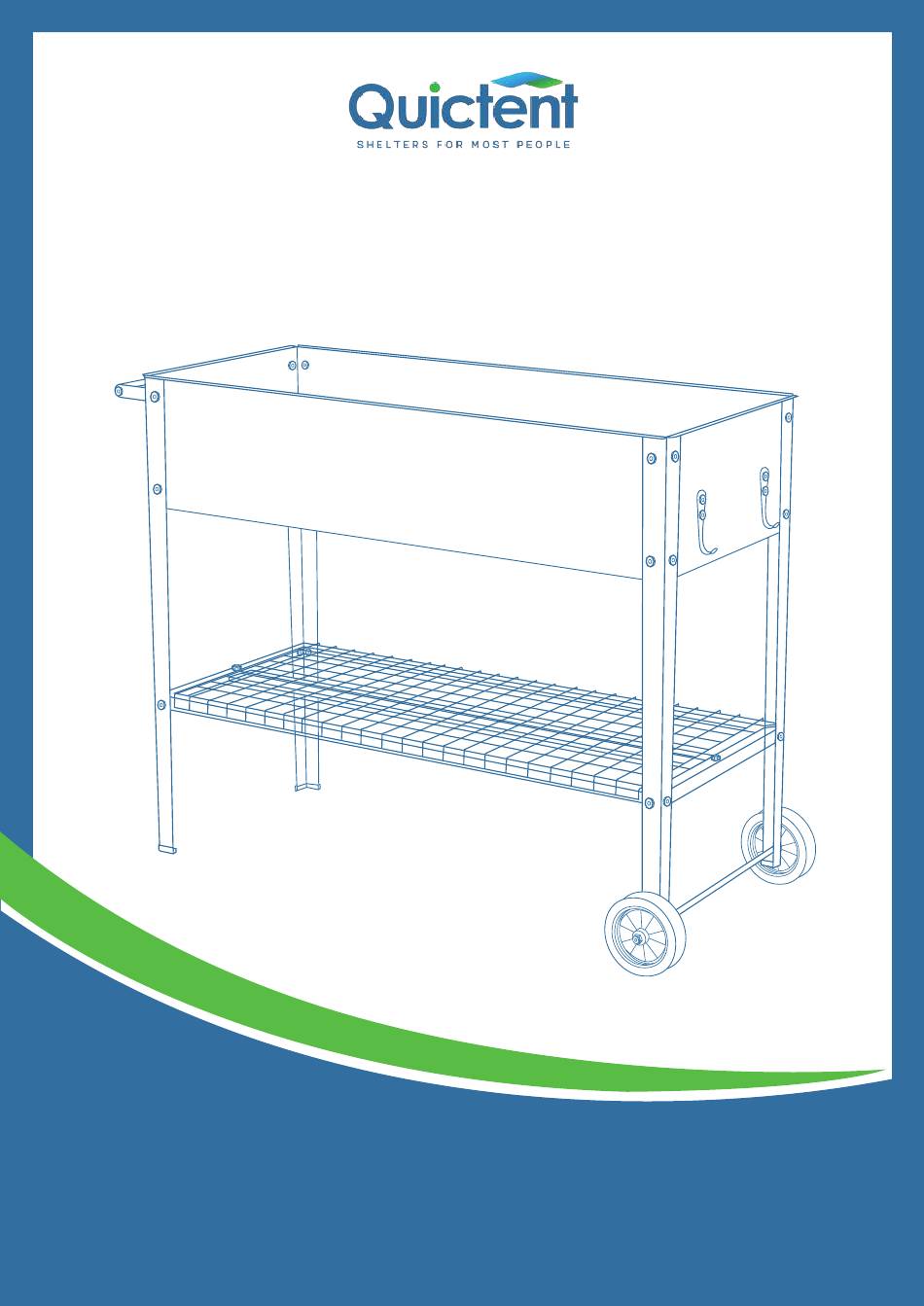

- Page 1 USER MANUAL Please read, understand, and practice the guidelines in this user manual before use, and keep it for future reference. 37.4" x 15.7" x 31.5"...
- Page 2 Table of Contents About Quictent ................1 Parts List ......................................5 Assembly ..................13 Warranty IMPORTANT We’d love to hear from our customers. If you have any questions about the manual or would like us to help in any way, please feel free to contact the support team.
- Page 3 Garden Beds from Quictent 49" x 37.4" x 36" GB-01 49" x 37.4" x 36" GB-02...
- Page 4 72.8" x 37.4" x 36" GB-51 72.8" x 37.4" x 36" GB-51G...
- Page 5 35.4" x 23.6" x 35.4" WGB-01 48" x 48" x 11" WGB-02...
- Page 6 47" x 35.4" x 12" GB-03S 47" x 35.4" x 22.4" GB-03H 47" x 35.4" x 12" GB-03S 47" x 35.4" x 22.4" GB-03H 71" x 35.4" x 12" GB-04S 71" x 35.4" x 22.4" GB-04H...
-
Page 7: About Quictent
“Quictent Instructions” online for the latest version. About Quictent Founded in the early 21st century, Quictent has grown into a popular brand with reliable products and excellent customer service during the past decades. We started with pop up canopies, and then expanded to other more categories of shelters... -
Page 8: Parts List
Parts List You’ll receive one (1) box for this model. Please pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List, so does the quantity for each part. If you need any help, please email the support team with the order number, required parts (name, quantity, and part number for each), and photos (or videos, if applicable), we will get back and help out soon. - Page 9 Part Diagram Description Quantity Number Long Metal Sheet Short Metal Sheet (Regular) Short Metal Sheet with Holes (To Attach the Hook) Leg Post (Regular) Leg Post with Holes (Where the Wheel Should be Attached)
- Page 10 Part Diagram Description Quantity Number Handle Fitting Handle Short Pole for Metal Shelf Long Side Pole for Metal Shelf Long Middle Pole for Metal Shelf Bottom Metal Shelf Axle Wheel...
-
Page 11: Assembly
Part Diagram Description Quantity Number Metal Sheet with Drain Hook Screw Pack ( Parts Included are 48 x Bolt, 48 x Nut, 1 x Small Wrench, and 1 x Allen Key) Assembly Reminders! Before the assembly, please check to make sure that you have all the parts listed in the Parts List. - Page 12 Step 1 As shown, layout the 2 x Long Metal Sheets (#A), 1 x Short Metal Sheet (1 x #B or 1 x #C), and 2 x Leg Posts (#E), then connect them with bolts and nuts at each corner joint. Reminders! Please do NOT tighten the bolts with nuts in this step.
- Page 13 Step 2 Connect the other Short Metal Sheet (#C if you used the part #B in the previous step, and vice versa) with the Long Metal Sheets (#A), add the 2 x Leg Posts (#D) and the 2 x Handle Fittings (#F) to the two corner joints, and then connect with bolts and nuts at each corner.
- Page 14 Step 4 Assemble the framework of the bottom metal shelf with the parts (#H, #I & #J). Attach the 2 x poles (#H, Short Pole for Metal Shelf) to the Leg Posts (#D & #E). Place the 2 x poles (#I, Long Side Pole for Metal Shelf) on the edge. Place the 1 x pole (#J, Long Middle Pole for Metal Shelf) in the middle of the Short Pole (#H).
- Page 15 Step 5 Assemble the wheels. Insert the ends of the Axle (#L) into the pre-drilled holes on the Leg Posts (#E). Add the 2 x Wheels (#M) to the ends of the Axle (#L). Tighten the axle and the wheels together with nuts.
- Page 16 Step 6 Assemble the Bottom Metal Shelf (#K). Tighten all the bolts with nuts and turn over the assembled struc- ture. Place the Bottom Metal Shelf (#K) upside down on the poles for the metal shelf.
- Page 17 Step 7 Place the Metal Sheet with Drain (#N) on the extended parts of the metal sheets (#A, #B & #C), slightly arch the metal sheet for an easier fit, then tighten them with bolts and nuts.
- Page 18 Step 8 Attach the 2 x Hooks (#O) to the Short Metal Sheet (#C) with bolts and nuts.
-
Page 19: Warranty
Required parts (name, quantity, and part number for each) Pictures (or video clips, if applicable) WARNING Restructuring the product without written permission from Quictent in advance would VOID the warranty. Damages due to improper use in severe weather conditions, including but not limited to high winds, heavy rain, sleet, snow, etc., will NOT be covered by the...
