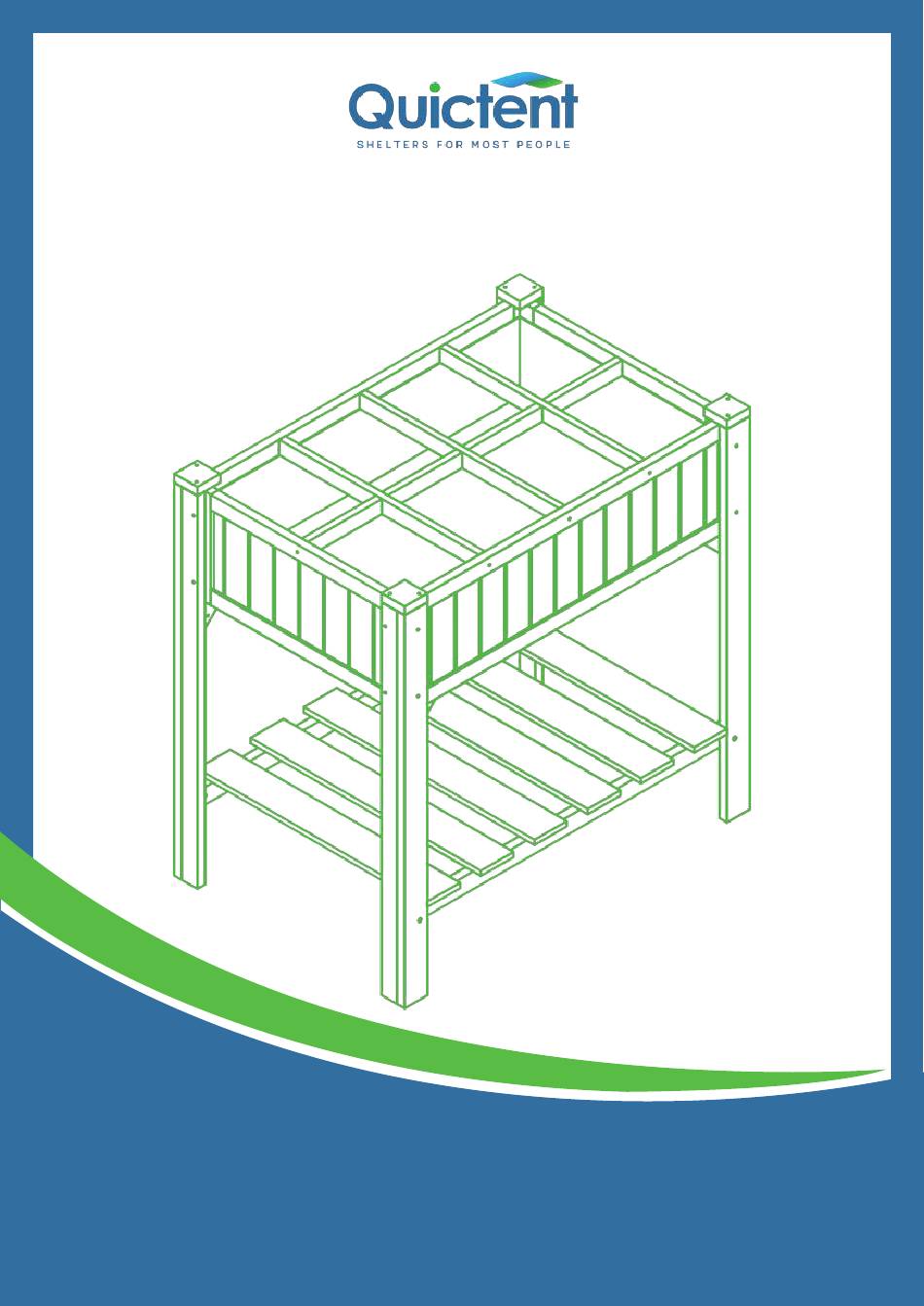

USER MANUAL
Please read, understand, and practice the guidelines in this user manual
before use, and keep it for future reference.
35.4" x 23.6" x 35.4"
48" x 48" x 11"
* The Parts List varies by the model. Please check which one you have.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WGB-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Quictent WGB-01

  • Page 1 USER MANUAL Please read, understand, and practice the guidelines in this user manual before use, and keep it for future reference. 35.4" x 23.6" x 35.4" 48" x 48" x 11” * The Parts List varies by the model. Please check which one you have.
  • Page 2 Table of Contents About Quictent ................6 ..........35.4" x 23.6" x 35.4" (Model #WGB-01) ............48" x 48" x 11" (Model #WGB-02) ..................17 Warranty ..................Appendix IMPORTANT We’d love to hear from our customers. If you have any questions about the manual or would like us to help in any way, please feel free to contact the support team.
  • Page 3 Garden Beds from Quictent * Only WGB-01 & WGB-02 have instructions in this manual 49" x 37.4" x 36" GB-01 49" x 37.4" x 36" GB-02...
  • Page 4 72.8" x 37.4" x 36" GB-51 72.8" x 37.4" x 36" GB-51G...
  • Page 5 35.4" x 23.6" x 35.4" WGB-01 48" x 48" x 11" WGB-02...
  • Page 6 47" x 35.4" x 12" GB-03S 47" x 35.4" x 22.4" GB-03H 47" x 35.4" x 12" GB-03S 47" x 35.4" x 22.4" GB-03H 71" x 35.4" x 12" GB-04S 71" x 35.4" x 22.4" GB-04H...
  • Page 7 This user manual applies to Quictent wooden raised garden beds. It will help you to get to know your Quictent wooden raised garden bed. Please read the guidelines in this manual and keep the manual for future reference. We may update the manual without notice in advance. You can always search “Quictent Instructions”...
  • Page 8 35.4" x 23.6" x 35.4" (Model # WGB-01) You’ll receive one (1) box for this model. Please pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List (Table 1), so does the quantity for each part. If you need any help, please email the sales@quictents.com...
  • Page 9 Parts List Reminders! The T-Type Plant Tags (#13) and the Planting Shovel (#14) are used to make your future planting easy, you’ll not use them during the assembly. There are Part #A, Part #B, Part #C, Part #D, and Part #E in the Screw Bag (#10), please refer to the Table 2 Details for Screw Bag below.
  • Page 10 Part Diagram Description Quantity Number Bottom Wooden Board Long Dividing Bar Short Dividing Bar Leg Cap Screw Bag (Learn More from the Table 2 Below) Non-Woven Cloth Glove 2 (1 Pair) T-Type Plant Tag Planting Shovel 1 (Set)
  • Page 11 Table 2. Details for Screw Bag (#10) Part Diagram Description Quantity Number 3 x 35 mm Screw 3.5 x 35 mm Screw 3.5 x 40 mm Screw 3.5 x 45 mm Screw M6 x 60 mm Bolt Assembly Reminders! Before the assembly, please check to make sure that you have all the parts listed in the Parts List.
  • Page 12 Step 1 Layout and assemble the garden bed with 2 x part #1 (Long Wooden Board), 2 x part #2 (Short Wooden Board), and 8 x part #C (3.5 x 40 mm Screw). Reminders! Please lay down the side of the wooden board with screw holes on the ground.
  • Page 13 Step 3 Reinforce the structure with 4 x part #5 (Supporting Block). You’ll use 12 x part #D (3.5 x 45 mm Screw). Step 4 Assemble the part #4 (Wood- en Shelf) by using 4 x part #E (M6 x 60 mm Bolt). Step 5 Turn over the assembled frame, then attach the part #6...
  • Page 14 Step 6 Create the (Optional step!) grids with the 1 x part #7 (Long Dividing Bar) and the 3 x part #8 (Short Dividing Bar). You'll use 8 x part #A (3 x 35 mm Screw) to fix all the parts. Step 7 To better protect the leg posts and secure the garden...
  • Page 15 48" x 48" x 11" (Model #WGB-02) You’ll receive one (1) box for this model. Please pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List, so does the quantity for each part. If you need any help, please email the support team sales@quictents.com maxlead.us@gmail.com with the order number,...
  • Page 16 Part Diagram Description Quantity Number Outer Wooden Board 1214 mm Inner Wooden Board 1174 mm Exterior Corner Bracket Interior Corner Bracket Screw (3.5 x 20 mm) Weed Barrier Glove 2 (1 Pair) T-Type Plant Tag Assembly Reminders! Before the assembly, please check to make sure that you have all the parts listed in the Parts List.
  • Page 17 Step 1 Layout the 2 x part #1 (Outer Wooden Board) and the 2 x part #2 (Inner Wooden Board) as instructed, then connect them with 4 x part #3 (Exterior Corner Bracket) and 24 x part #5 (Screw). Step 2 Reinforce the bed with the 4 x part #4 (Interior Corner Bracket) and 24 x part #5...
  • Page 18 Required parts (name, quantity, and part number for each) Pictures (or video clips, if applicable) WARNING Restructuring the product without written permission from Quictent in advance would VOID the warranty. Damages due to improper use in severe weather conditions, including but not limited to high winds, heavy rain, sleet, snow, etc., will NOT be covered by the...
  • Page 19 find one that goes well with your needs. Party Tent Preparing for parties and events? We've got your back. Quictent party tents in different sizes are available. From a small-sized one in 10' x 8' to some regular sizes in 10' x 20' or 10' x 30' to a large one in 20' x 40', you can always find a perfect solution...
  • Page 20 Metal Gazebo Owning a Quictent metal gazebo is just like having another beautiful room in your backyard! The powder-coated steel frame is heavy-duty and can stand firmly outdoors for a long time. The mosquito netting adds privacy and protects you from bugs.
  • Page 21 Shelter for Vehicle Carport The Quictent carports share something in common: They are heavy-duty, easy-to-as- semble, and of the most importance, supported by an industrial-leading after-sales service. You can choose from the ones with or without sidewalls depending on your needs.
  • Page 22 RV Cover The Quictent RV covers are a great investment for trailers of all kinds. Besides the great protection provided by the 6-layered tear-, water-, and UV-resistant cover, extra reinforced wind straps are the bonus coming with each order.
  • Page 23 Shelter for Plant Greenhouse As a necessity for all gardeners, Quictent greenhouses provide an ideal environment to ensure efficient growth and longer growing seasons. Available in mini, medium, and large walk-in ones. Grow Tent We highly recommend Quictent grow tents for anyone wanting to grow indoors.
