Summary of Contents for Quictent B0BHS67H1K
- Page 2 Table of Contents About Quictent Parts List Assembly Warranty IMPORTANT We’d love to hear from our customers. If you have any questions about the manual or would like us to help in any way, please feel free to contact the...
- Page 3 Garden Beds from Quictent 6 x 3 x 1 FT (GB-12) 6 x 3 x 1.5 FT (GB-13) 6 x 3 x 2 FT (GB-14)
- Page 4 8 x 4 x 1 FT (GB-15) 8 x 4 x 1.5 FT (GB-16)

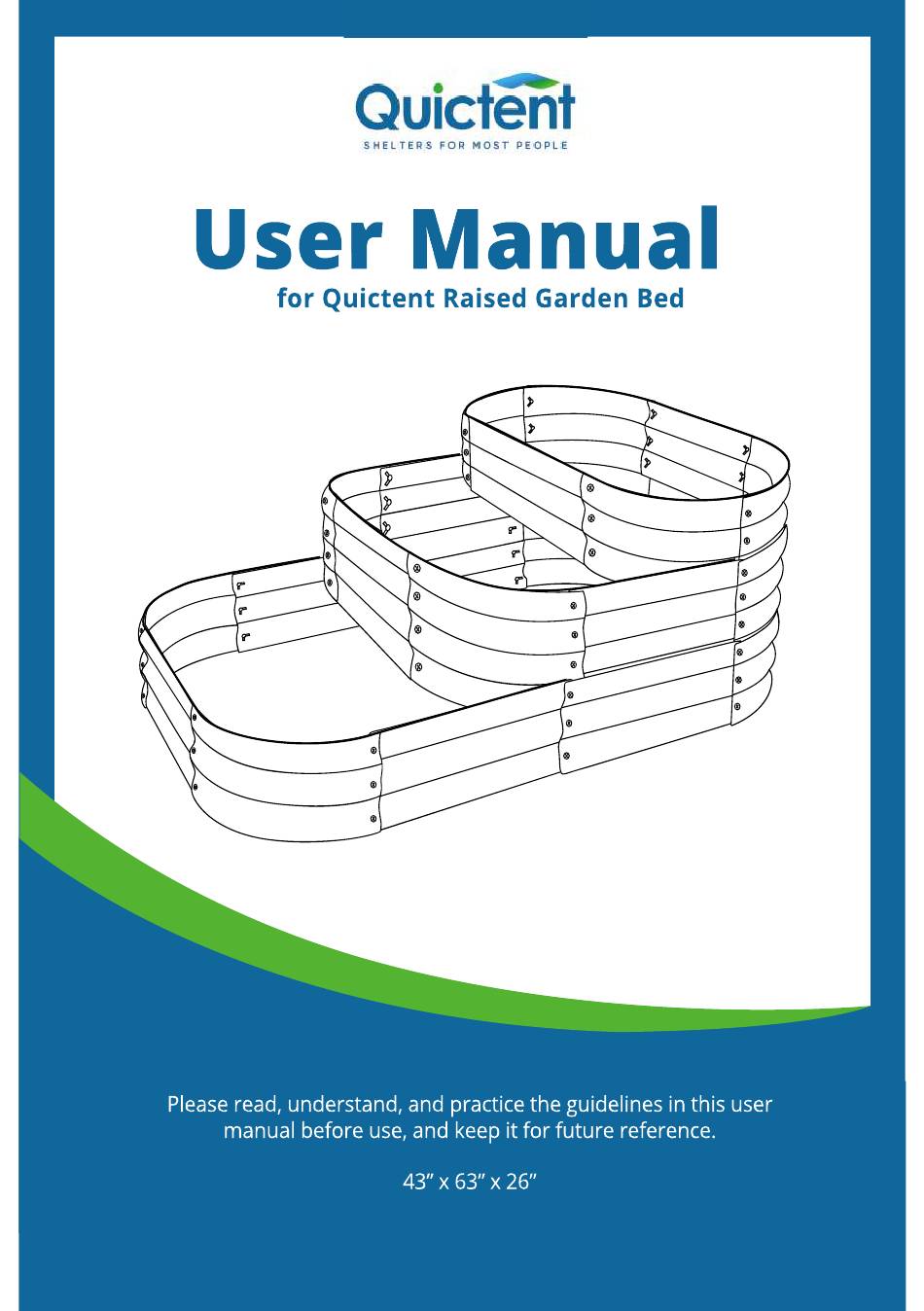

- Page 5 8 x 4 x 2 FT (GB-17) 43 x 63 x 26 IN (GB-18)
- Page 6 This user manual applies to Quictent Raised Garden Bed. It will help you to get to know your Quictent Raised Garden Bed. Please read the guidelines in this manual and keep the manual for future reference. We may update the manual without notice in advance. You can always search “Quictent Instructions”...
- Page 7 You’ll receive only one (1) box. Please make sure all parts are numbered and graphically indexed as shown, so does the quantity for each part upon arrival. If you need any help, please CONTACT the support team with the order number, required parts, quantity for each part, and photos (or videos, if applicable), we will get back to help out soon.
- Page 8 Part Quantity Diagram Description Number (PCS) Curved Panel (Width: 9.3” ) Straight Panel (Width: 9.3” ) Curved Panel (Width: 12” ) Straight Panel (Width: 12” ) Horizontal Rod Rubber Edging 9.8’ Rubber Edging 13’ Rubber Edging 16.7’ Screw Bag (15 x Long Screws &...
- Page 9 Reminders! Please note that the rolled edge of the panels should be placed on the top, and should be placed towards the inside of the product. The Curved Panels (#A1) should always be on the outside (away from the interior of the garden bed). Please insert the screw bolts from the outside to the inside.
- Page 10 Step 2. Move to the middle layer. Connect the Straight Panel (#B2) & 2 x Curved Reminders! As shown, the three panels need to be installed inside the bottom layer. Please pay attention to the location of the Part #A2 (exterior) and the Part #B2 (interior).
- Page 11 Keep Empty Long Screw No need to tighten Step 3. Connect Straight Panel (#B2) & Curved Panel (#A2) with the bottom layer, and repeat it to complete the other end. Please note that the Part #B2 is inside the Part #A2. Reminders! You should use long screws to connect the middle layer with the bottom layer.
- Page 12 Step 4. Connect 2 x Curved Panels (#A2) & 1 x Straight Panel (#B2) with short screws. Please note that all the Part #A2 are on the outside of the Part #B2. Step 5. Assemble the remaining panels of the middle layer. Please note that the Curved Panel (#A2) is inside of the bottom layer and outside of the Straight Panel (#B2).
- Page 13 Step 6. formed long rod in the middle of the bottom panels with long screws. Step 7. Move to the top layer. Connect the Straight Panel (#B1) & 2 x Curved Reminders! As shown, the three panels need to be installed inside the middle layer. Please pay attention to the location of Part #A1 (exterior) and Part #B1 (interior).
- Page 14 Reminders! You should use long screws to connect the top layer with the middle layer. And please note that for an easier installation thereafter, as shown, you do NOT need to tighten the two long screws in this step. Long Screw No need to tighten Step 8.
- Page 15 Step 9. As shown, align the rubber edgings with the top edge of each layer and press...
- Page 16 There are 3 installation methods to meet your...
- Page 17 Quantity required for each part Pictures (or video clips, if applicable) Warning Restructuring the product without written permission from Quictent in advance would VOID the warranty. Damages due to improper use in severe weather conditions, including but not limited to high winds, heavy rain, sleet, snow, etc., will NOT be covered by the...
