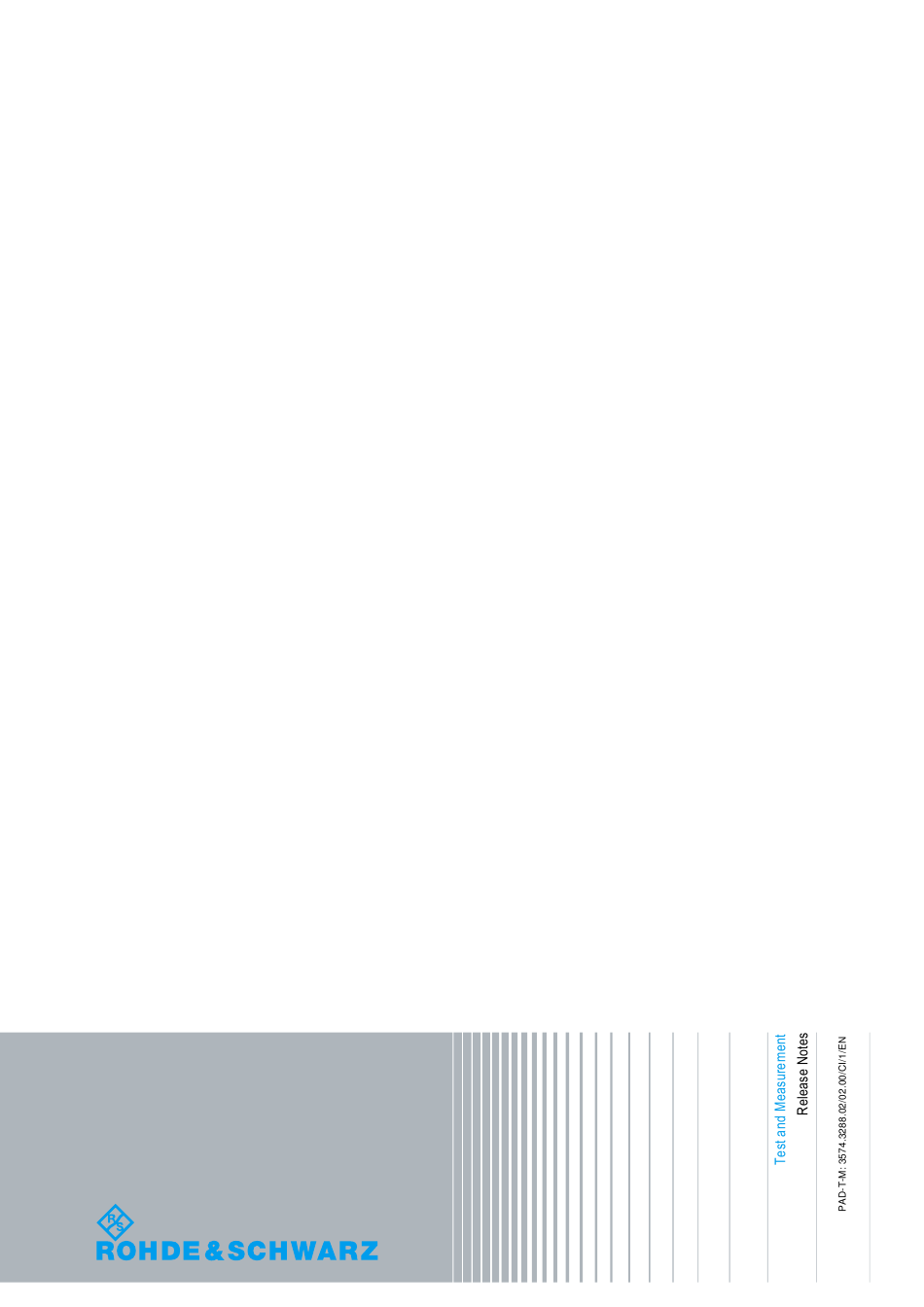

R&S
SMB100A
®
Release Notes
Firmware Version 4.20.028.58
© 2018 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Munich, Germany
Phone: +49 89 41 29 - 0
Fax: +49 89 41 29 12 - 164
E-mail:
mailto:info@rohde-schwarz.com
Internet:
http://www.rohde-schwarz.com
Subject to change
®
R&S
is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners.
The firmware of the instrument makes use of several valuable open source software packages. For information, see the "Open Source
Acknowledgment" on the user documentation CD-ROM (included in delivery).
®
The following abbreviations are used throughout this document: R& S
SMB100A is abbreviated as R&S SMB100A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R and S SMB100A and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz R and S SMB100A

Summary of Contents for Rohde & Schwarz R and S SMB100A

  • Page 1 R&S SMB100A ® Release Notes Firmware Version 4.20.028.58 © 2018 Rohde & Schwarz GmbH & Co. KG Muehldorfstr. 15, 81671 Munich, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 - 164 E-mail: mailto:info@rohde-schwarz.com Internet: http://www.rohde-schwarz.com Subject to change ®...

  • Page 2: Table Of Contents

    R&S SMB100A Contents Contents 1 Information on the Current Version and History ......3 Version 4.20.028.58 ...................... 4 Version 3.20.390.24 ...................... 4 Version 3.01.203.51 ...................... 5 Version 3.01.203.50 ...................... 5 Version 3.01.203.46 ...................... 5 Version 3.01.203.44 ...................... 6 Version 3.01.203.32 ...................... 6 Version 2.20.382.115 ....................

  • Page 3: Information On The Current Version And History

    R&S SMB100A Information on the Current Version and History 1 Information on the Current Version and History General information This document describes the procedure of applying a firmware update to the R&S®SMB100A Signal Generator. It furthermore describes the differences between the several firmware versions.

  • Page 4: Version 4.20.028.58

    R&S SMB100A Information on the Current Version and History The R&S®SMB100A provides a continuously growing number of device emulations. The current emulation set is described in chapter 2 "Information on the Current Version and History". 1.1 Version 4.20.028.58 Released: May 2018 New Functionality RefNo.

  • Page 5: Version 3.01.203.51

    R&S SMB100A Information on the Current Version and History Modified Functionality RefNo. Functions 138134 Calibration value of oscillator can be changed using protection level 2 138071 Improved FM deviation for stereo modulation up to 200 kHz 137801 Sweep will be stopped after modification of the sweeped value e.g. RF frequency 137541 Factory Preset of "RF OFF Mode"...

  • Page 6: Version 3.01.203.44

    R&S SMB100A Information on the Current Version and History Fixed Issues RefNo. Improvements 14177 Low Harmonic Filter cannot be configured via user interface (in 3.01.203.44). Fixed “Network Settings”-GUI in disconnected state. 14165 Enabling the pulse generator unexpectedly switches ALC to Sample & Hold, even if 14091 pulse modulation is off.
  • Page 7 R&S SMB100A Information on the Current Version and History RefNo. Functions [SOURce<HW>]:POWer:EMF:STATe ON|OFF|1|0 12380 Additional NRP-Z Power Sensors are accepted, e.g. NRP-Z211 and NRP-Z221 Warnings regarding overvoltage at modulation inputs can be disabled. Setting is 12361 available in modulation dialogs or via remote: "SOURce:INPut:MODext:WIGNore ON|OFF|1|0"...

  • Page 8: Version 2.20.382.115

    R&S SMB100A Information on the Current Version and History RefNo. Improvements 12599 Frequency values between 8 and 9kHz are not set properly Several issues regarding USB and remote control after applying a factory preset without 12169 subsequent power cycle Under some circumstances, *OPC? responds too early on instruments with mechanical 12049 attenuator 12043...

  • Page 9: Version 2.20.382.106

    R&S SMB100A Information on the Current Version and History 1.9 Version 2.20.382.106 Released: December 2012 New Functionality RefNo. Functions 10460 Support of RF board revision 1406.7371.02 External reference frequency can be switched between 5 and 10MHz (requires RF- 10560 Board revision 1406.7220 and higher) 10394 New emulation for Panasonic 8303 signal generator 10332...

  • Page 10: Version 2.20.382.35

    R&S SMB100A Information on the Current Version and History RefNo. Functions SMB-B5 (Stereo Coder): EON Burst-Length can be modified using direct mode 10304 instruction “EON-TA-BURST=x” or “EON-TA-BURST=x,y” with x and y between 4 and 8 New waveform “Sawtooth” for LF Generator (requires RF-Board revision 1406.7207 and 10259 higher) 9927...
  • Page 11 R&S SMB100A Information on the Current Version and History Modified Functionality RefNo. Functions SMB-B5 (Stereo Coder): Direct Commands are scanned in order to keep user interface 10134 up to date. Improved *RST Performance for instruments with SMB-B1(H) (OCXO) and SMB-B5 9979 (Stereo Coder) 9666...

  • Page 12: Version 2.20.237.31

    R&S SMB100A Information on the Current Version and History Known Issues RefNo. Known-Issues 10119 Phase Modulation: By user interface, deviation can only be entered in rad, not in degree. 1.12 Version 2.20.237.31 Released: August 2011 for SMB-B112(L), SMB-B120(L) and SMB-B140(L) New Functionality RefNo.

  • Page 13: Version 2.15.245.19

    R&S SMB100A Information on the Current Version and History RefNo. Improvements 9168 Ethernet socket connection may loose packages 9051 Several minor issues regarding importing and exporting lists With EMF State active, the current level unit was not preserved when instrument is 8476 powered off.

  • Page 14: Version 2.10.116.18

    R&S SMB100A Information on the Current Version and History 1.15 Version 2.10.116.18 Released: January 2010 New Functionality RefNo. Functions LF Output can be configured to provide an X-Voltage for RF sweep. See RF sweep 8133 configuration menu. This function requires an RF board of part number 1406.7207 or higher.
  • Page 15 R&S SMB100A Information on the Current Version and History RefNo. Improvements Network settings (e.g. IP-Address) were lost when configured while no network is 7761 attached Missing error message when attempting to disable USB mass storage while storage is 7695 attached 7664 SMB-B5: Several issues regarding Pilot Phase setting 7638...

  • Page 16: Information On Remote Emulations

    R&S SMB100A Information on Remote Emulations 2 Information on Remote Emulations The R&S®SMB100A signal generators offer a remote emulation feature that makes it possible to control the instrument by commands other than the built-in native SCPI commands. This feature allows the user to replace signal generators, e.g. from other manufacturers, with the R&S®SMB100A without having to change the remote control code.
  • Page 17 R&S SMB100A Information on Remote Emulations E8663 signal generator from B112, B120, B140, E8663 Agilent Technologies B112L, B120L, B140L 8340 signal generator from B112, B120, B140, HP8340 Hewlett-Packard / Agilent B112L, B120L, B140L Technologies 8341 signal generator from B112, B120, B140, HP8341 Hewlett-Packard / Agilent B112L, B120L, B140L...
  • Page 18 R&S SMB100A Information on Remote Emulations 8647 signal generator from HP8647 Hewlett-Packard / Agilent Technologies 8648 signal generator from HP8648 Hewlett-Packard / Agilent Technologies 8656 signal generator from HP8656 Hewlett-Packard / Agilent Technologies 8657 signal generator from HP8657 Hewlett-Packard / Agilent Technologies 8664 signal generator from HP8664...
  • Page 19 R&S SMB100A Information on Remote Emulations R&S®SML01 signal generator SMP02 from Rohde & Schwarz R&S®SML02 signal generator SMP03 from Rohde & Schwarz R&S®SML03 signal generator SMP04 from Rohde & Schwarz R&S®SMR20 signal generator B112, B120, B140, SMR20 from Rohde & Schwarz B112L, B120L, B140L R&S®SMR27 signal generator B112, B120, B140,...

  • Page 20: Firmware Update

    R&S SMB100A Firmware Update 3 Firmware Update 3.1 Update Information The update procedure requires that the instrument is operational. There is no need to uninstall the current firmware. In most cases instrument settings are preserved during the update, including user data and network settings. To perform this procedure, USB Device must be enabled in security settings.
  • Page 21 R&S SMB100A Firmware Update Check for stereo coder firmware update (SMB-B5) The option SMB-B5 contains its own local firmware. During reboot the instrument firmware checks whether an update of the stereo coder firmware is required. ● If the stereo coder firmware is already up to date, the instrument starts as usual. Wait until it is operational and continue with internal adjustments.

  • Page 22: Alternative Update Procedures

    R&S SMB100A Firmware Update 3.3 Alternative update procedures ● Apply USB memory stick while instrument is powered off The previously described firmware update procedure can also be initiated by applying the USB memory stick while instrument is powered off. In this case the update procedure is triggered during startup sequence right after the operating system is ready but before the instruments firmware starts.

  • Page 23: Open Source Acknowledgement

    R&S SMB100A Open Source Acknowledgement 4 Open Source Acknowledgement This instrument firmware makes use of valuable open source software packages. The most important of them are listed together with their corresponding open source license information in a separate Open Source Acknowledgement document. This document also contains the verbatim license texts and can be downloaded from www.rohde-schwarz.com.

  • Page 24: Customer Support

    R&S SMB100A Customer Support 5 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
