Installation/Commissioning of Tankspion-IoT Devices
Tankspion-IoT

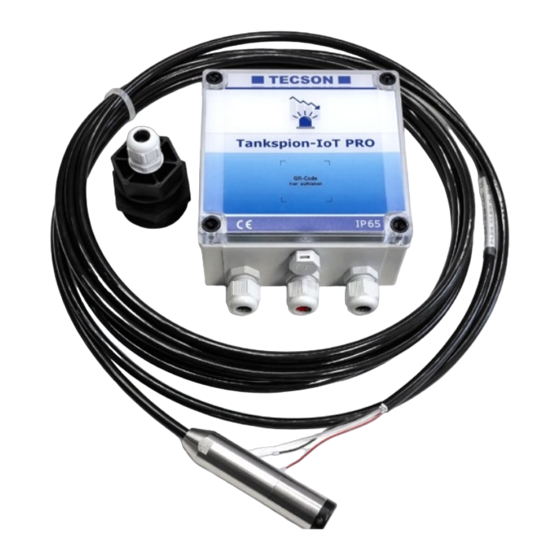

Tankspion-IoT PRO
Tankspion-IoT GPS
- Battery powered oil tank measuring system
- Reports via NB-IoT network to app
V2.1 | 11-2022
Firmware V2.0(+)
Firmware V2.11(+)
Firmware V2.15(+)
Content
General Notes
Mounting of Level Probe
Device Commissioning
Tankspion-Iot PRO
Tankspion-Iot GPS
Technical Data
Flash Codes
Battery Change
App Set Up (oil-SmartView)
QR Code Display on Tank
Installation and Commisioning of Tankspion-IoT devices
Page
2
3
4
6
8
10
11
11
12
15
1
Advertisement
Related Manuals for Tecson Tankspion-IoT
Summary of Contents for Tecson Tankspion-IoT

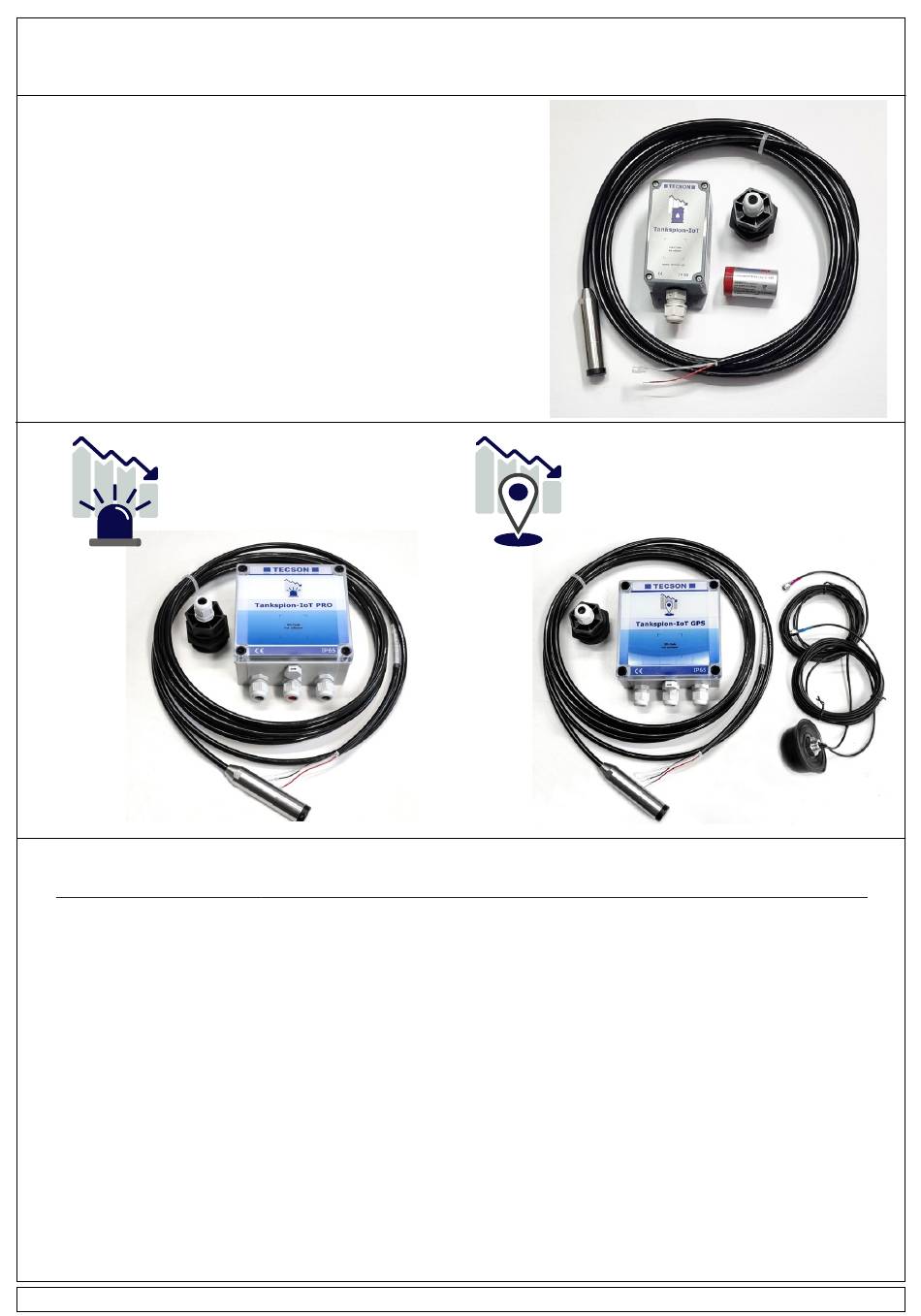

- Page 1 - Reports via NB-IoT network to app Content Page General Notes Mounting of Level Probe Device Commissioning Tankspion-Iot PRO Tankspion-Iot GPS Technical Data Flash Codes Battery Change App Set Up (oil-SmartView) QR Code Display on Tank V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 2 General Notes • The Tankspion-IoT is used to measure the tank content of unpressurized liquid tanks through a level probe with 4-20 mA signal connection (2 wire principle). • The device is a battery-powered level measurement system, with IoT integration via narrowband cellular network and remote data reporting to the secure web server oilview.de .
- Page 3 Pressure Compensation via probe cable: • A pressure compensation element is integrated in the PG screw connection of the device housing. Through this, the relative pressure probe receives the atmospheric reference pressure. V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 4 PG screw connection with Probe cable Wake up button pressure compensation Terminal Air capilary SIM card holer Lithium battery D cell 3,6V Status LED Spare part: Item no.: 13901 V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 5 You may stick the enclosed QR code on the device lid or, for example, on the oil tank, on the tank compartment door or, if necessary, further away. Via QR code, the most recent tank content data can be retrieved and displayed. V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 6 GND terminal. Alarm Contact Inputs: • The Tankspion-IoT PRO has two configurable contact inputs, e.g. for connection of a burner fault signal contact (potential-free switching contact, interconnect a relay if necessary). • Alarm message on occurrence of a signal at input 'Alarm 1' (DIG-IN + GND).
- Page 7 Connection of the Level Probe with Device Combination 'Tankspion-IOT PRO/ GPS' with 'LX-Device' Loop-Measurment with the TECSON tank content measuring devices: Connnect the measuring probe with its 2 wire signal cable to the Tankspion-IoT (Pro/GPS) • red to terminal 'P+' •...
- Page 8 For mobile applications, such as mobile heating systems or systems without a local address, such as wells, groundwater measuring points, lakes, waterways, etc., the Tankspion-IoT GPS also offers a GPS location service. The included weatherproof 4G LTE / GPS combination antenna has to be installed to enable the GPS function.
- Page 9 V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 10 Water Urea solution e.g. AdBlue according to DIN 70700 Gasoline Only after consultation, with flash point < 55°C at least with ATEC measuring probe and ATEX barrier Various other After consultation! V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 11 Is performed automatically. You do not need to do anything. The device independently searches for updates and carries those out automatically. The Tankspion-IoT is connected to the secure Tecson web server. If your device ever fails to mea- sure or report correctly, please contact the Tecson support team.
- Page 12 Scan the QR code with your smartphone to download the app. Alternatively: Open the store for apps. Under „search“ enter: oil-SmartView Click „oil-SmartView“ in the list and then click „install“. Google Playstore Apple Store V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 13 All input fields marked with an asterisk are mandatory fields in order to create a user account. If you want to retrieve the level data from the Tankspion-IoT via the OilView inventory manage- ment system, simply download the form and print it on your printer. You can also fill out the form directly on the screen.
- Page 14 Your tank and your app login are linked 1 : 1. The Tankspion IoT device has a protected connection with the TECSON web portal www.OilView.de. No data is lost if you change your smartphone. V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 15 The location of the plant is displayed in the bottom line. In addition to the normal display of the current level, the fillable space before refueling is also displayed, in accordance with the regulations of TRwS 791. V2.1 | 11-2022 Installation and Commisioning of Tankspion-IoT devices...
- Page 16 WEEE No.: DE 1863 9642 UST-ID/VAT ID: DE 298 763 956 www.tecson.de The manufacturer TECSON hereby declares compliance with the respective safety and test guidelines. The current declaration of conformity can be found as a PDF file (printable) on our web site www.tecson.de under the heading 'Documentation'.
