Summary of Contents for ELMARK AN-100

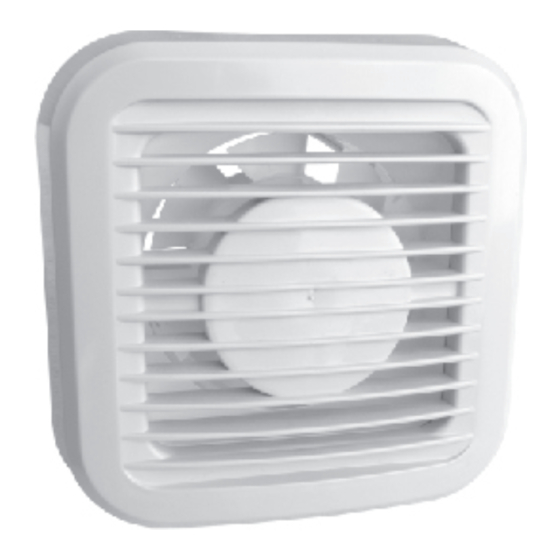

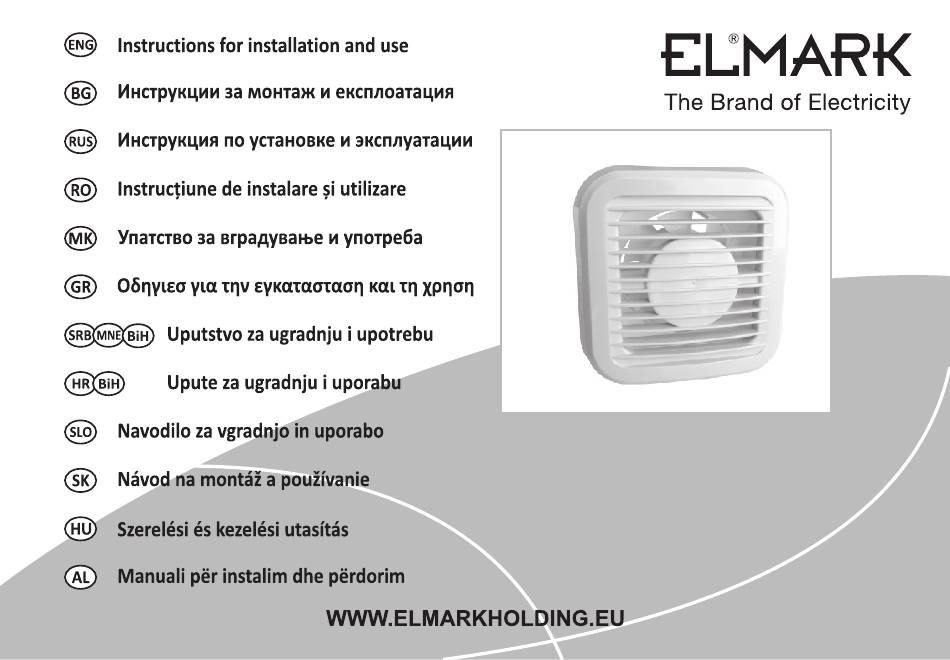

  • Page 1 AN-Ø100 AN-Ø120...

  • Page 2: Model Description

    INSTRUCTIONS FOR INSTALLATION AND USE MODEL DESCRIPTION PS - PULL SWITCH V - LAP PSV - PULL SWITCH + FLAP F - FLANGE VF - FLAP+FLANGE Pull Standard Flap Flange switch...
  • Page 3 IMPORTANT! Read these instructions carefully before use and keep it for future references. The installation and the adjustment of the ventilator can only be done by competent persons, trained to work with electric systems up to 1000V, who have read the given instructions for installation, adjustment and use. Characteristics of the power network to which the device is connected have to be within norms (standards) and effective regulations.

  • Page 4: Main Technical Characteristics

    MAIN TECHNICAL CHARACTERISTICS The ventilator is connected to electric power network (electric current) of AC voltage of 230 V and 50 Hz frequency. When it comes to electric shock protection, the ventilator belongs to Class II (230 V / 50 Hz). The ventilator is intended for exploitation in air temperatures in the range from +1 C to +40 C.
  • Page 5 Table 2. Dimensions (mm) TYPE ØA AN-Ø100 AN-Ø120 Table 1. AN-Ø100 AN-Ø120 Pe(mmcda) Pe(mmcda) Q(m /h) Q(m /h) Q(m /s) Q(m /s) 0.005 0.011 0.016 0.022 0.027 0.005 0.011 0.016 0.022 0.027 0.033 0.038 0.044 0.05 0.055 (mmcda) i Pà Q - Air flow (m /h) i (m /s) Pe - Pressure...
  • Page 6 PURPOSE OF THE VENTILATOR The ventilators are designed to ventilate housing or office space. They are used in premises and in places where spreading of humidity and odours needs to be prevented. They are not intended for use in work environments and housing facilities where air temperature exceeds 40 C.

  • Page 7: Connecting To Power Supply

    NOTE: - The ventilator must be installed on the height over 2.3 m from floor level! - Before removal of the ventilator front mask (A) always check whether the appliance is disconnected from power supply! Place the ventilator AN-Ø100 or AN-Ø120 into pre-drilled opening of an adequate size in the wall or the ceiling. Remove front mask (A), releasing the mask holder (1) with the tip of the screwdriver until it is released, and then pull the mask toward yourself.

  • Page 8: User Maintenance

    The electrical connection is achieved by connecting the power cable with the connector (C), blue wire with N contact and brown or black wire with L contact (fig 2). Press mask (A) on the frontal part of the ventilator (B), until it is firmly caught by the mask holder (1) (fig 1).
  • Page 34 ÚÈEL VENTILÁTORA Ventilátory sú konštruované pre vetranie obytných alebo prevádzkových priestorov. Používajú sa v miestnostiach a na miestach, kde treba zabráni šíreniu vlhkosti a pachov. Nie sú urèené pre použitie v pracovných a obytných priestoroch, kde teplota vzduchu prekraèuje 40 C. Zariadenie je zladené...
