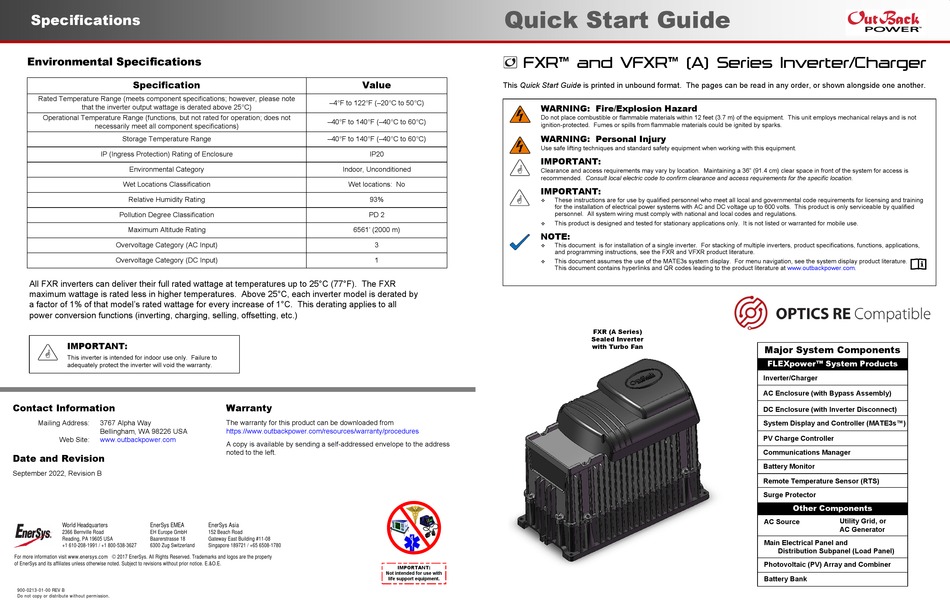

OutBack Power FXR Series Quick Start Manual

Specifications
Environmental Specifications
Specification
Rated Temperature Range (meets component specifications; however, please note
that the inverter output wattage is derated above 25°C)
Operational Temperature Range (functions, but not rated for operation; does not
necessarily meet all component specifications)
Storage Temperature Range
IP (Ingress Protection) Rating of Enclosure
Environmental Category
Wet Locations Classification
Relative Humidity Rating
Pollution Degree Classification
Maximum Altitude Rating
Overvoltage Category (AC Input)
Overvoltage Category (DC Input)
All FXR inverters can deliver their full rated wattage at temperatures up to 25°C (77°F). The FXR
maximum wattage is rated less in higher temperatures. Above 25°C, each inverter model is derated by
a factor of 1% of that model's rated wattage for every increase of 1°C. This derating applies to all
power conversion functions (inverting, charging, selling, offsetting, etc.)
IMPORTANT:
This inverter is intended for indoor use only. Failure to
adequately protect the inverter will void the warranty.
Contact Information
Mailing Address: 3767 Alpha Way
Bellingham, WA 98226 USA
Web Site: www.outbackpower.com
Date and Revision
September 2022, Revision B
World Headquarters EnerSys EMEA
2366 Bernville Road EH Europe GmbH
Reading, PA 19605 USA Baarerstrasse 18
+1 610-208-1991 / +1 800-538-3627 6300 Zug Switzerland
For more information visit www.enersys.com © 2017 EnerSys. All Rights Reserved. Trademarks and logos are the property
of EnerSys and its affiliates unless otherwise noted. Subject to revisions without prior notice. E.&O.E.
900-0213-01-00 REV B
Do not copy or distribute without permission.
Value
–4°F to 122°F (–20°C to 50°C)
–40°F to 140°F (–40°C to 60°C)
–40°F to 140°F (–40°C to 60°C)
IP20
Indoor, Unconditioned
Wet locations: No
93%
PD 2
6561' (2000 m)
3
1
Warranty
The warranty for this product can be downloaded from
https://www.outbackpower.com/resources/warranty/procedures
A copy is available by sending a self-addressed envelope to the address
noted to the left.
EnerSys Asia
152 Beach Road
Gateway East Building #11-08
Singapore 189721 / +65 6508-1780
Not intended for use with
Quick Start Guide
FXR™ and VFXR™ (A) Series Inverter/Charger
This Quick Start Guide is printed in unbound format. The pages can be read in any order, or shown alongside one another.
WARNING: Fire/Explosion Hazard
Do not place combustible or flammable materials within 12 feet (3.7 m) of the equipment. This unit employs mechanical relays and is not
ignition-protected. Fumes or spills from flammable materials could be ignited by sparks.
WARNING: Personal Injury
Use safe lifting techniques and standard safety equipment when working with this equipment.
IMPORTANT:
Clearance and access requirements may vary by location. Maintaining a 36" (91.4 cm) clear space in front of the system for access is
recommended. Consult local electric code to confirm clearance and access requirements for the specific location.
IMPORTANT:
These instructions are for use by qualified personnel who meet all local and governmental code requirements for licensing and training

for the installation of electrical power systems with AC and DC voltage up to 600 volts. This product is only serviceable by qualified
personnel. All system wiring must comply with national and local codes and regulations.
This product is designed and tested for stationary applications only. It is not listed or warranted for mobile use.

NOTE:
This document is for installation of a single inverter. For stacking of multiple inverters, product specifications, functions, applications,

and programming instructions, see the FXR and VFXR product literature.
This document assumes the use of the MATE3s system display. For menu navigation, see the system display product literature.

This document contains hyperlinks and QR codes leading to the product literature at www.outbackpower.com.
IMPORTANT:
life support equipment.

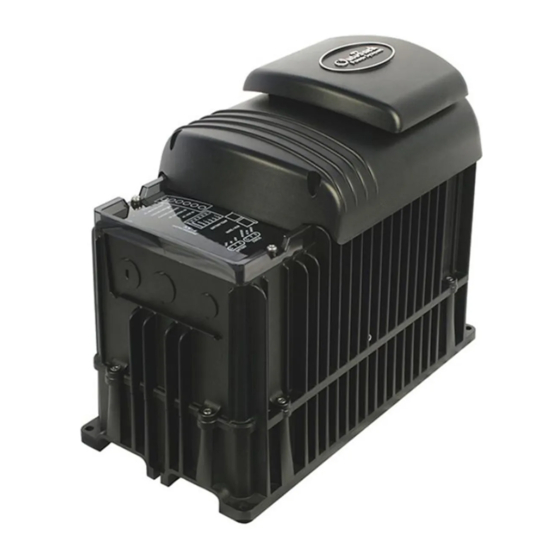

FXR (A Series)
Sealed Inverter
with Turbo Fan Major System Components
FLEXpower™ System Products
Inverter/Charger
AC Enclosure (with Bypass Assembly)
DC Enclosure (with Inverter Disconnect)
System Display and Controller (MATE3s™)
PV Charge Controller
Communications Manager
Battery Monitor
Remote Temperature Sensor (RTS)
Surge Protector
AC Source
Main Electrical Panel and
Photovoltaic (PV) Array and Combiner
Battery Bank
Other Components
Utility Grid, or
AC Generator
Distribution Subpanel (Load Panel)
