2.4 GHz Wireless Black & White
Video Security System with
1 camera
This product broadcasts over public airwaves and its
video and audio signals may be intercepted without
your consent.
FOR MORE INFORMATION
WWW.STRATEGICVISTA.COM
Before operating the system, please read this manual
thoroughly and retain it for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lorex SG4230
Summary of Contents for Lorex SG4230
- Page 1 2.4 GHz Wireless Black & White Video Security System with 1 camera This product broadcasts over public airwaves and its video and audio signals may be intercepted without your consent. FOR MORE INFORMATION WWW.STRATEGICVISTA.COM Before operating the system, please read this manual thoroughly and retain it for future reference.
-
Page 2: Fcc Class B Notice
CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of two Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage“... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS All the safety and operating instructions should be read before the Appliance is operated and retained for future reference. 1. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 2. -
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION & FEATURES……………………………………… SYSTEM INCLUDES………………………………………………….. CONTROLS AND FUNCTIONS Monitor …...….……………………..……... Camera ...….……………...……….……...…… INSTALLATION Camera ...……………….…... Monitor ...………... SYSTEM OPERATION Additional camera connection……………………………………. Auto Scanning……………………………………………………… Auto & Manual Viewing Options…………………………………. Selectable Dwell Settings………………………………………… Connecting The Monitor To A VCR ……...………………..……. OPTIONAL ACCESSORIES ... - Page 5 INTRODUCTION: Thank you for purchasing the 2.4 GHz Wireless B&W Video System. This is an ideal solution for monitoring your business or home, or for safeguarding your valuables. The package contains a 5.5” B&W Monitor, and 1 wireless B&W camera. The system allows you to automatically scan between locations with the convenience of connecting up to 4 cameras.
-
Page 6: System Includes

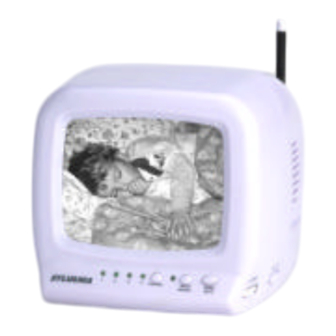

SYSTEM INCLUDES: 5.5” – 2.4 GHz B&W Monitor 1 - 2.4 GHz B&W Wireless Camera with camera stand & screws Also includes: 1 – 9V DC 500mA Adapter (Camera) 1 – 13.8V DC 1000mA Adapter (Monitor) 1 – RCA Audio/Video Cables Mounting hardware Window decals Owner’s Manual... - Page 7 MONITOR CONTROLS – FRONT & BACK PANEL MONITOR FRONT VIEW Location of Receiver Monitor controls 1. 2.4GHz Antenna - High gain dipole patch antenna receives audio and video signal from the camera. 2. CRT - 5.5” Diagonal Screen 3. Brightness Control – Allows you to adjust the brightness of the picture 4.
-
Page 8: Camera Controls
CAMERA CONTROLS Front/Side View 1. Microphone – Built-in condenser microphone provides listen-in audio capability from camera to monitor 2. Lens – B&W CMOS Image Sensor 3. 6 Infrared LED’s – Enhances the picture quality in low light conditions 4. Channel Selector Switch – Slide switch for channels 1-4 5. -
Page 9: Camera Installation
CAMERA INSTALLATION NOTE Ensure the power switch on the monitor and camera are set to the OFF position before proceeding with the following steps. 1. Attach the stand base to the wall or ceiling where you want to install the camera. -
Page 10: Operation
OPERATION Camera (1) Connect the power adapter to the camera power input and ensure the camera is turned “ON”. Ensure the camera is set to channel 1. Monitor (1) Connect the supplied power adaptor to the power input of the monitor. (2) Use the channel selection switch button and ensure the monitor is set to the same channel as the camera to view the picture. -
Page 11: Auto & Manual Viewing Options
Auto Scanning This video security system provides you the option to automatically switch between the four camera locations. If you have fewer than four cameras, you can also set the system to scan between three or two locations. Setting Auto Scan to 2 or 3 camera locations: 1. -
Page 12: Connecting The Monitor To A Vcr
OPERATION Connecting the monitor to a VCR for recording Monitor AC Adapter Connections for recording Connect the supplied audio/video cable from the back of the monitor to the Audio/Video In of the VCR. Please Note: To record, you must select the A/V or AUX channel on your VCR. -
Page 13: Optional Accessories
Picture rolls and jumps -Adjust antenna or scrambled picture direction FOR MORE INFORMATION www.strategicvista.com Lorex / Sylvania / Home Sentinel Causes and remedies Monitor - AC adapter not plugged in - Power switch not turned on - Monitor not turned on... -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Camera Image sensor Lens Picture Elements Scanning system Scanning frequency Sync. system Resolution Min. illuminations Video Output Gamma characteristics Auto Iris Microphone Transmitting frequency Modulation RF out level Video Output level Antenna Dimensions Battery Option Operating temperature Power source Monitor Screen Size Receiving frequency... -
Page 15: Care & Maintenance
CARE AND MAINTENANCE: Please follow these instructions to ensure proper care and maintenance of this system Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices.
