Lorex SG4230 Quick Setup Manual

2.4 GHz Black & White Video Security System with 1 Camera

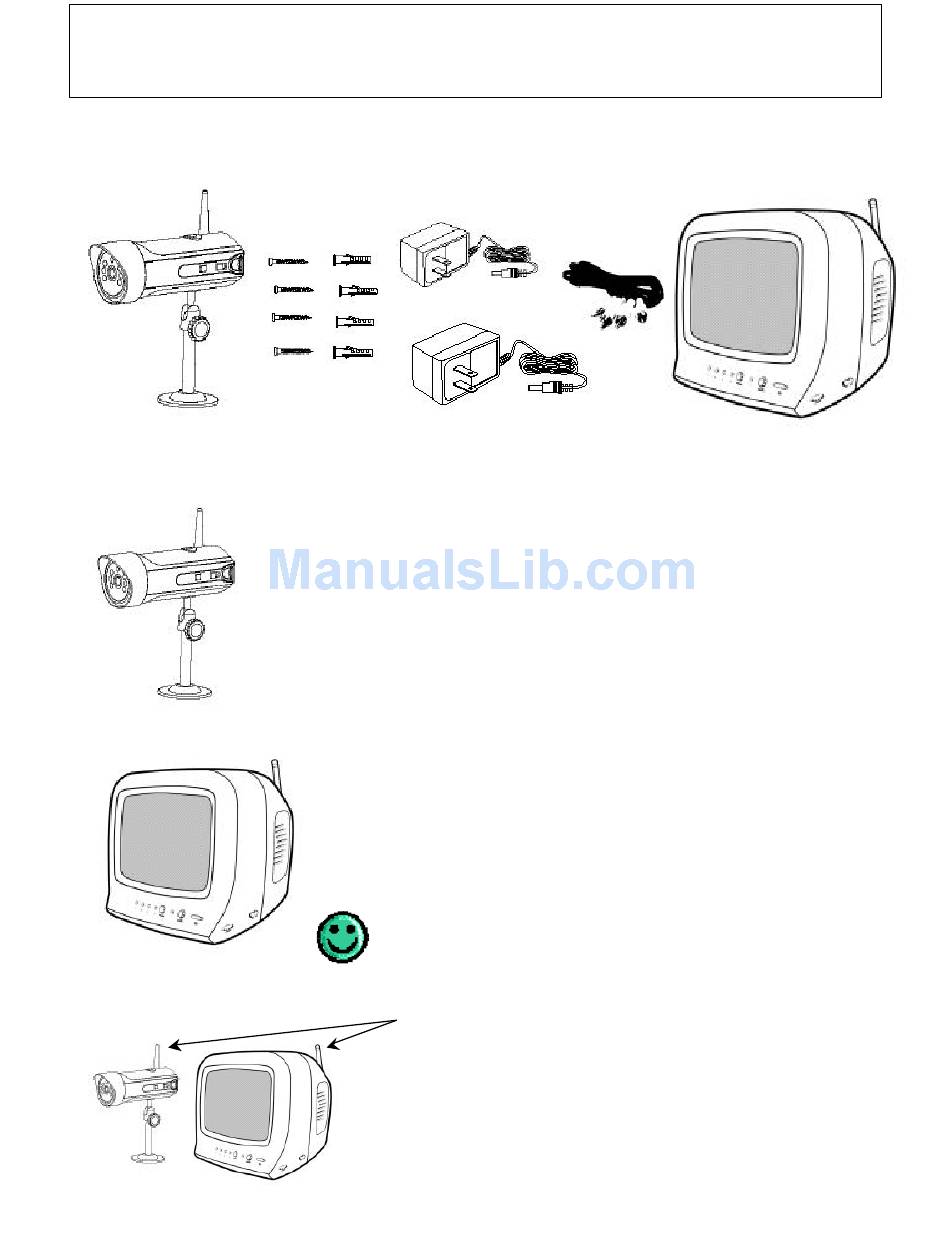

1. Unpack the system contents from the gift box

Camera
Mounting
Bracket

2. Connect the Wireless Video Camera

3. Set up the monitor

4. Adjust for Optimum Clarity

QUICK SET UP GUIDE
9V DC Power Adapter
Screws & Anchors
13.8V DC Power Adapter
(a) Mount the camera to a wall or desktop using the supplied
mounting bracket, screws and anchors
(b) Connect power to the camera using the 9V DC 500mA
adapter (or use the optional 4 "AA" batteries*, not included)
(c) Turn the camera "ON"
*Note: The battery power will last 7-8 hours. This option is
only intended for use in the event of a power failure.
(a) Place the monitor in the desired viewing location
(b) Connect power to the monitor using the 13.8V DC 1000mA
adapter
(c) Turn the monitor "ON" (the Power switch is located on the
right side of monitor)
Now that both the camera and monitor are powered and
turned "ON", you should be seeing the image from the
camera.
Antenna
Adjust the antenna to ensure clear picture reception. If
there's still interference, then change the channel on both
the camera and monitor between 1-4. The camera and
monitor must be set to the same channel.

FOR MORE INFORMATION

www.strategicvista.com
(for camera)
RCA Cable
(for monitor)
Monitor
