Technical information on this manual is property of XMART
▪
totally or partially without written approval of XMART.
XMART can introduce modifications in their products or manuals without further notice.
▪
XMART is not responsible of mistakes or missing information in this manual.
▪
XMART is not responsible for wrong use a third part can do of this information.
▪
Trademarks and logos in this manual are property of their owners.
▪
www.xmart-Inverter.com

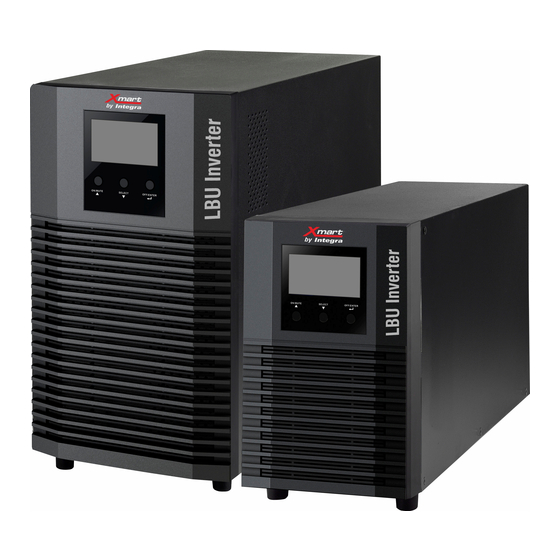

USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K
LBU-ONL 1.5K/2.25K/3K/4.5K
Inverter ONLINE DOUBLE CONVERSION
.
This manual Information cannot be copied or distributed
VER.2211.17-One (ENG)
VER. 2211.17
ENGLISH
USER MANUAL
TOWER INSTALLATION
230V SCHUKO
120V NEMA
220V NEMA
1
Advertisement
Table of Contents
Related Manuals for Integra Xmart LBU-ONL 1.5K
Summary of Contents for Integra Xmart LBU-ONL 1.5K
- Page 1 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K VER. 2211.17 ENGLISH USER MANUAL LBU-ONL 1.5K/2.25K/3K/4.5K Inverter ONLINE DOUBLE CONVERSION TOWER INSTALLATION 230V SCHUKO 120V NEMA 220V NEMA Technical information on this manual is property of XMART This manual Information cannot be copied or distributed ▪...
-
Page 2: Table Of Contents
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS 2. PRODUCT DESCRIPTION 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS 4. INSTALLATION 5. OPERATION MODES 6. OPERATION INTERFACE (KEYBOARD & LCD) 7. Inverter CONFIGURATION 8. ERROR & ALARMS CODES 9. -
Page 3: General Safety Instructions
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 1. GENERAL SAFETY INSTRUCTIONS WARNING: It is required to read and understand this manual. Follow all instructions given in this manual for starting up and operating this product. Only qualified technician must start-up, operate and maintain this product. Keep manuals as a guide for future consults. Inverter manufacturer or distributor will never be responsible for any accident produced by lack of knowledge or negligent practices at the moment of install, starting up or maintain this product. -
Page 4: Safety, Quality And Performance Standards
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS SAFETY - LOW VOLTAGE DIRECTIVE (2006/95/EC) IEC/EN 62040-1 Inverter Part 1-1: General & Safety Inverter in accessible areas ELECTROMAGNETIC COMPATIBILITY - EMC DIRECTIVE (2004/108/EC) Inverter, Part 2, Electromagnetic Compatibility: IEC/EN 62040-2 Low Freq. -
Page 5: Installation
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 4. INSTALLATION AC CONNECTIONS Install this Inverter indoors with a conditioned temperature free of dust. The site conditions must comply with room specifications required in the specifications table of this manual. Plug Inverter input power-cord to the wall socket with rated voltage according to your Inverter model. Connect your products to Inverter outlets without overloading Inverter. - Page 6 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K Battery Connection: Place Inverter module close to original XMART Batteries Array. If there are, check all Battery DC switches are in OFF position. Connect Inverter to first Battery String by using original DC cable In case system has more than 1 Battery String, connect String #1 to String #2, then String # 2 to String #3 and so on. www.xmart-Inverter.com VER.2211.17-One (ENG)
- Page 7 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K COMMUNICATION PORTS LBU-ONL series includes 2 serial ports: USB & RS232. Additionally, there is also a Smart Port to support different communication cards, such as: LAN SNMP card, Dry-Contacts card, RS-485 card among others. RS232 COMMUNICATION PORT Serial communication port –...
-
Page 8: Operation Modes
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 5. OPERATION MODES This is a True Online Double Conversion Inverter, and it is designed to offer clean, bump-less, and highest quality power to your computer related equipment protecting also your valuable data. Power delivered by Inverter is 100% sine wave as main line. According to AC main service, and how Inverter has been configured, it may operate in following modes: ONLINE NORMAL Mode: When Inverter is off by selecting ON push button in front panel Inverter enters ONLINE NORMAL mode if AC main service is inside acceptable input range. - Page 9 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K LCD SCREEN ACCORDING TO OPERATION MODE: (FOR 230VAC models) LCD screens for 120V models are similar to screens described in this section for 230V. OPERATION MODES DESCRIPTION LCD SCREEN A- When bypass is not allowed Inverter output is powered-off (0V).
- Page 10 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 6. OPERATOR INTERFACE: KEYBOARD & LCD FRONT PANEL: <ON / MUTE> INVERTER TURN-ON: Keep it pushed for 2 seconds. If button is released before required time Inverter will not turn on. ALARM MUTE Some no critical alarms can be muted when this key is selected Operator can manually initiate a self-test when Inverter is ONLINE, ECO or FREQUENCY SELF TEST CONVERTER mode if this key is selected for 3 seconds.
- Page 11 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K LCD DESCRIPTION LCD can be divided in 6 functional areas: OUTPUT INFORMATION: Displays: AC Input voltage, DC Battery voltage, Input frequency (in Hz) INPUT INFORMATION: Displays: AC output voltage, Output frequency (in Hz) ALARMS & ERRORS This section of the LCD displays active alarms and errors providing codes and descriptive symbols.
- Page 12 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K FLOWCHART – Inverter STATES & MODES This section graphically displays operation mode and status of the Inverter: (1) : Valid AC Input detected (2) : Battery symbol (3) : Converters (Rectifier & Inverter) (4) : Inverter output powered (4)+[P]: Programmable output powered (5) : BYAPSS internal static line active (6) : ECO mode active...
-
Page 13: Inverter Configuration
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 7. INVERTER CONFIGURATION Configuration menu allows setting of functions and parameters of the Inverter. Menu is activated by pressing < SELECT > during 5 seconds with Inverter in STAND-BY or BYPASS mode (powered but without activation of ON button). - Page 14 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K CF: FREQUENCY OUTPUT VALUE - If CF Mode is Disabled, PAR 02 shows BAT and Initial frequency at Battery mode can be set to: BAT 50 = 50Hz BAT 60 = 60Hz - If CF Mode is Enabled, PAR 02 shows CF and Output Frequency in ONLINE mode can be set as: CF 50 = 50Hz CF 60 = 60Hz...
- Page 15 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K PROG-OUTPUT: MAXIMUM RUNTIME FOR PROGRAMMABLE OUTLETS: 0-999: Time in minutes for programable outlets in Battery mode (if function 10 is enable). Factory set: 999 min. This setting does not affect runtime for standard Inverter outlets. MAXIMUM RUNTIME: This function sets maximum time in Battery mode for standard outlets.
- Page 16 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K ACCEPTABLE INPUT RANGE: 120V Models: HLS: (High Limit Setting): 140/145/150Vac LLS: (Low Limit Setting): 55/60/65/70/75/80Vac 230V models 230V: HLS: (High Limit Setting): 280/290/300Vac LLS: (Low Limit Setting): 110/120/130/140/150/160Vac LCD CODES AND TEXTS: TEXTS DESCRIPTION Active Open Active Close Battery AH Battery...
- Page 17 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 8. ALARM & ERROR CODES IMPORTANT: All alarms and errors are informed on the LCD by dedicated codes and symbols. ALARMS: Are usually represented by blinking codes or symbols. Audible alarm beeps are also intermittent for ▪...
-
Page 18: Error & Alarms Codes
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K ERROR CODES Error states are produced when Inverter detects a critical problem that avoids its normal operation in ONLINE mode. This condition is described by steady symbol and code on LCD. A continuous beep is also generated by the Inverter. FAILURE CODE ICON... -
Page 19: Troubleshooting
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 9. TROUBLESHOOTING PROBLEM PROBABLE CAUSE & SOLUCION Discharged Batteries: Recharge Batteries during 4-6 h. Short runtime in Battery mode Old Batteries: Batteries must be replaced by new ones ALARMS PROBABLE CAUSE & SOLUCION High power consumption connected to Inverter: Disconnect no critical equipment from Inverter. -
Page 20: Software
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 10. SOFTWARE Our monitoring software allows user to manage Inverter and monitoring of all its features. Main software features are: • Configuring Inverter parameters, • Automatic shutdown for protected PCs (OS and files) when long blackouts force Inverter to power-off •... -
Page 21: Batteries: Recharging
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 12. BATTERIES: RECHARGING This Inverter includes a powerful and modern battery charger powered by AC input Charger Configuration: Maximum recharging current can be configured in the LCD frontal panel. Maximum current must be configured according to the capacity of the battery bank. -
Page 22: Support & Warranty
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 13. SUPPORT & WARRANTY Support: If a failure or problem is detected please check troubleshooting section in user manual. If problem cannot be solved, please contact authorized service center or authorized dealer. Batteries: Rechargeable batteries can be charged and discharged hundreds of times. However, they will eventually wear out. This is not a defect or failure so that batteries wear out is not covered by this warranty. -
Page 23: Rear Panel
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 14. REAR PANEL Standard Inverter Outlets Emergency Power Off connector Programmable Outlets USB & RS232 AC Input Smart Port Surge Protected RJ45 sockets DC connector for external batteries www.xmart-Inverter.com VER.2211.17-One (ENG) -
Page 24: Specifications
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 15. SPECIFICATIONS (1/2) www.xmart-Inverter.com VER.2211.17-One (ENG) - Page 25 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 15. SPECIFICATIONS (2/2) 1.5K ONLINE INVERTER - LBU-ONL INDICATORS / INDICADORES UPS status, Load level, Battery, Input/Output voltage, Discharge timer, and Fault LCD / Pantalla de Cristal Liquido (LCD) Estado del UPS, Consumo, Baterías, Voltaje Entrada/Salida, Autonomía, Diagnóstico ALARM / ALARMAS Beep Alarms / Alarma Sonora: (Batt.
-
Page 26: Backup Tables
USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K 16. BACKUP TABLES IMPORTANT NOTES: Backup times shown in this section are approximate. Some values have been measured in lab tests while others have been calculated using discharge tables supplied by battery manufacturers. The deeper the battery discharge, shorter their lifespan will be. For instance: a GEL battery can manage about 400 deep 100% discharge. - Page 27 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K MODEL: LBU-ONL 1.5K BATTERY ARRAY BACKUP TABLE BATTERY ARRAY: 24VDC (2 12VDC Batts in each String) BATT. CAPACITY 45AH 45AH 45AH 65AH 65AH 65AH 100AH 100AH # OF STRINGS TOTAL CURRENT 135A 130A 195A 100A 200A 1180 1768...
- Page 28 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K MODEL: LBU-ONL 2.25K BATTERY ARRAY BACKUP TABLE BATTERY ARRAY: 36VDC (3x 12VDC Batts in each String) BATT. CAPACITY 45AH 45AH 45AH 45AH 65AH 65AH 65AH 100AH 100AH # OF STRINGS TOTAL CURRENT 135A 180A 130A 195A 100A 200A...
- Page 29 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K MODEL: LBU-ONL 3K BATTERY ARRAY BACKUP TABLE BATTERY ARRAY: 48VDC (4x 12VDC Batts in each String) BATT. CAPACITY 45AH 45AH 45AH 65AH 65AH 65AH 100AH 100AH # OF STRINGS TOTAL CURRENT 135A 130A 195A 100A 200A 1.340 2.000...
- Page 30 USER MANUAL - LBU-ONL 1.5K/2.25K/3K/4.5K MODEL: LBU-ONL 4.5K BATTERY ARRAY BACKUP TABLE BATTERY ARRAY: 72VDC (6x 12VDC Batts in each String) BATT. CAPACITY 45AH 45AH 45AH 65AH 65AH 65AH 100AH 100AH # OF STRINGS TOTAL CURRENT 135A 130A 195A 100A 200A 1025 1500...
- Page 31 EUROPE LATAM Miami FL 33196, USA Sabadell, Barcelona. 08202. Spain Santiago de Chile, Chile sales@xmart-Inverter.com sales@xmart-Inverter.com sales@xmart-Inverter.com...
