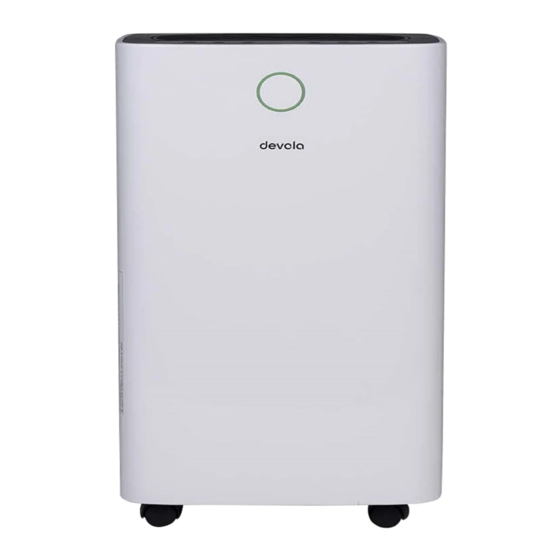

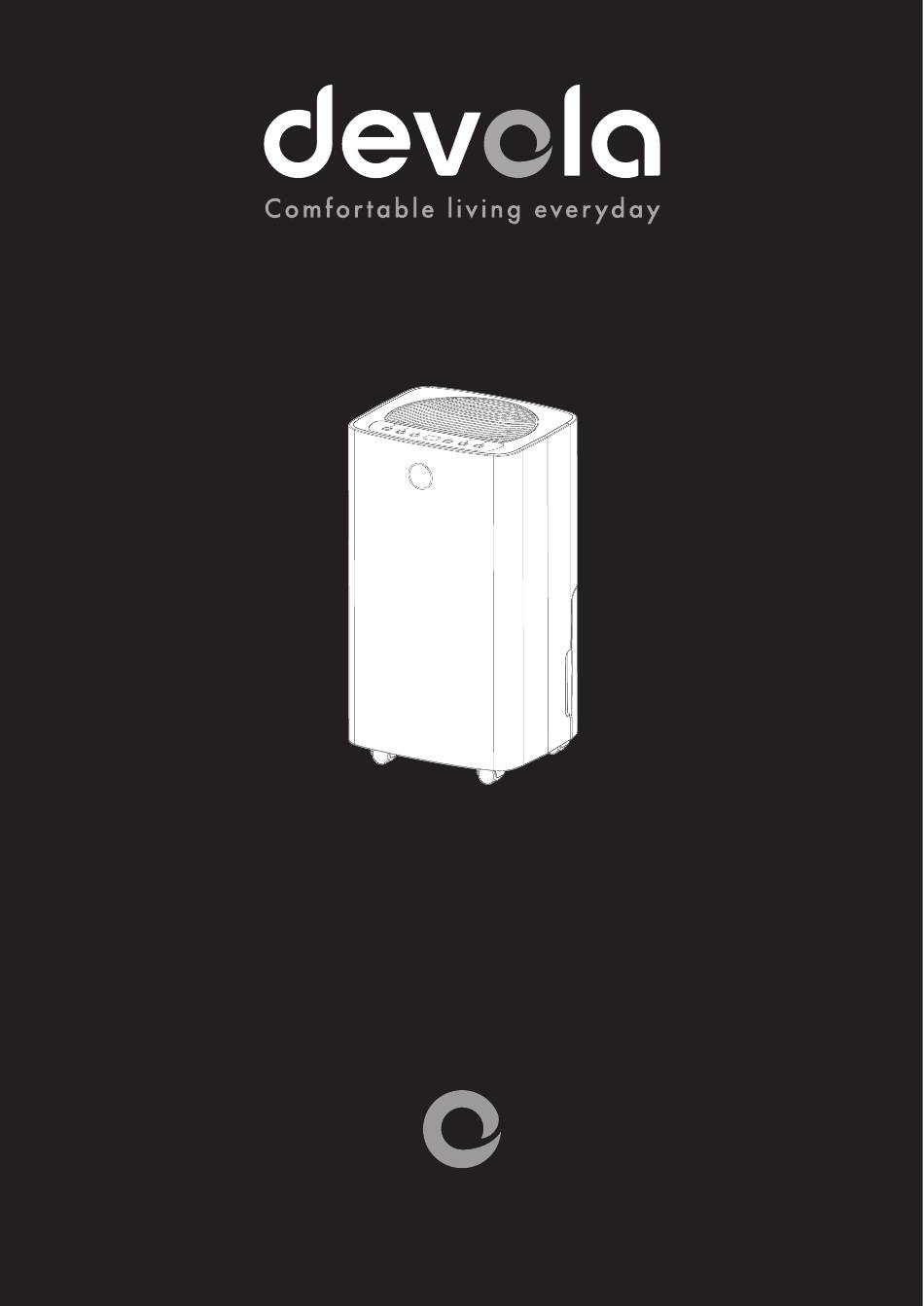

- Page 1 Instruction Manual Devola 12L Compressor Dehumidifier DV12L | DV12LWF devola.co.uk...
-
Page 3: Table Of Contents
CONTENT 1. BEFORE YOU BEGIN................1-2 2. FOR YOUR SAFETY................3-7 3. PRODUCT OVERVIEW................8-9 4. INSTALLATION..................10-11 5. OPERATION..................12-16 6. MAINTENANCE..................17 7. TROUBLESHOOTING................18 8. DECOMMISSIONING................19... -
Page 4: Before You Begin
1. BEFORE YOU BEGIN Please read the operating instructions carefully before using your dehumidifier for the first time. 1.1 PRODUCT DESCRIPTION The dehumidifier is used to remove excessive moisture from the air. The resulting reduction in relative humidity protects buildings and their contents from the adverse effects of excess humidity. - Page 5 1.2 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and...
-
Page 6: For Your Safety
2. FOR YOUR SAFETY Your safety is the most important thing we concerned! Please read this manual carefully and fully understand before operating your dehumidifier. OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ... - Page 7 The unit shall be installed in accordance with national wiring regulations. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacture. The appliance shall be stored in a room without continuously operation sources (for example: open flames, an operating gas appliance or an operating electric heater).
- Page 8 PLEASE MAKE SURE THE MACHINE WILL KEEP STANDING UPRIGHT FOR 24 HOURS BEFORE YOUR FIST TIME USAGE ELSE MAY DAMAGE COMPRESSOR OF DEHUMIDIFIER SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing a dehumidifier with R290. 2.2.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
- Page 9 hand. Have a dry powder orCO2 fire extinguisher adjacent to the charging area. 2.2.6 No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
- Page 10 which are inherently resistant to being corroded or are suitably protected against being so corroded. 2.2.9 Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.
-
Page 11: Product Overview
3. PRODUCT OVERVIEW FRONT VIEW Control Panel Air Outlet 3 Color indicator light Front shell Castors Back Shell Air Filter Power cord Continuous drainage hole Water tank - 8 -... -
Page 12: Installation
4. INSTALLATION 4.1 LOCATION 1. Place the unit on a firm, level surface in an area with at least 30cm of free space around it to allow for proper air circulation. 2. Never install the unit where it could be subject to： ... - Page 13 4.2 OPERATING THE DEVICE SAFELY Check the device after unpacking for any damages or scratches on it. Operate this unit in an ambient temperature from 5°C to 35°C. Do not use in the outdoors. This dehumidifier is intended for indoor residential applications only.
-
Page 14: Operation
5. OPERATION CONTROL PANEL POWER button Press the power button to turn on the machine, the running indicator lights will be on and the machine will enter common mode automatically Press the power button again to turn off the machine, the running indicator lights will be off and the compressor will stop immediately,the fan will also stop after 30 seconds later. - Page 15 ● Continuously dehumidify mode: Under this mode, the machine will continuously dehumidify in high fan speed, The humidity setting function and fan speed setting function is ineffective . You can not set humidity data and fan speed under this mode. ●...
- Page 16 to 80%RH , and 5%RH for one step. The humidity setting will cycle like below : 30%RH- 35%RH - 40%RH - 45%RH - 50%RH - 55%RH- 60%RH - 65%RH -70%RH - 75%RH- 80%RH-30%RH The humidity setting function is effective under Common mode, and ineffective under continuously dehumidify mode and sleeping mode .
- Page 17 you to clean the water tank Clear the water tank full alarm When the machine alarm for water tank full , press any button to stop the alarm. You can not operate the machine when machine alarm until you empty the water tank and return it back to right position of machine body “Smart Life-Smart Living”...
- Page 18 can operate the appliance using the app. 8. Press and hold the Timer button for about 5 seconds, the appliance disconnect, the Wi-Fi lamp lights off. 5.2 DRAINAGE There are two ways of removal collected water produced by the machine A.
- Page 19 5.2.2 CONTINUOUS DRAINAGE For continuous operation or unattended dehumidification, please connect the water hose to the machine for continuous drainage. Condensate water can be automatically flow into a bucket or drain by gravity. Set the unit in a horizontal surface and stable position. ...
-
Page 20: Maintenance
6. MAINTENANCE CLEANING THE AIR FILTER • Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit. The air filter requires regular cleaning. The air filter is removable for easy cleaning. -
Page 21: Troubleshooting
7.TROUBLE SHOOTING OPERATION TEMPERATURE 5°C ≤ Ambient Temp. ≤ 35°C When the ambient temp is lower 5 °C or higher than 35°C, the dehumidifier will stop operation. When 5°C ≤ Ambient temp. ≤ 18°C, the machine will automatically defrost ; during defrosting, the compressor will stop working and the fan keep running. -
Page 22: Decommissioning
8. DECOMMISSIONING 8.1STORAGE Long-term storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Press power button to switch off and unplug the unit. - Page 24 Register your warranty online within 30 days of purchase. www.devola.co.uk/warranty www.devola.co.uk/warranty 10% OFF Use this discount code on your next order DEV10 DEV10 Scan for technical details DV12L DV12LWF devola.co.uk Devola 97 Walsall Road, Birmingham B42 1TX Helpline 0800 043 8975 Email info@devola.co.uk...
