DEHUMIDIFIER INSTRUCTION MANUAL
Model (s):
DV16L/DV16LWF
DV20L/DV20LWF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV16L and is the answer not in the manual?

Questions and answers

Related Manuals for DEVOLA DV16L

Summary of Contents for DEVOLA DV16L

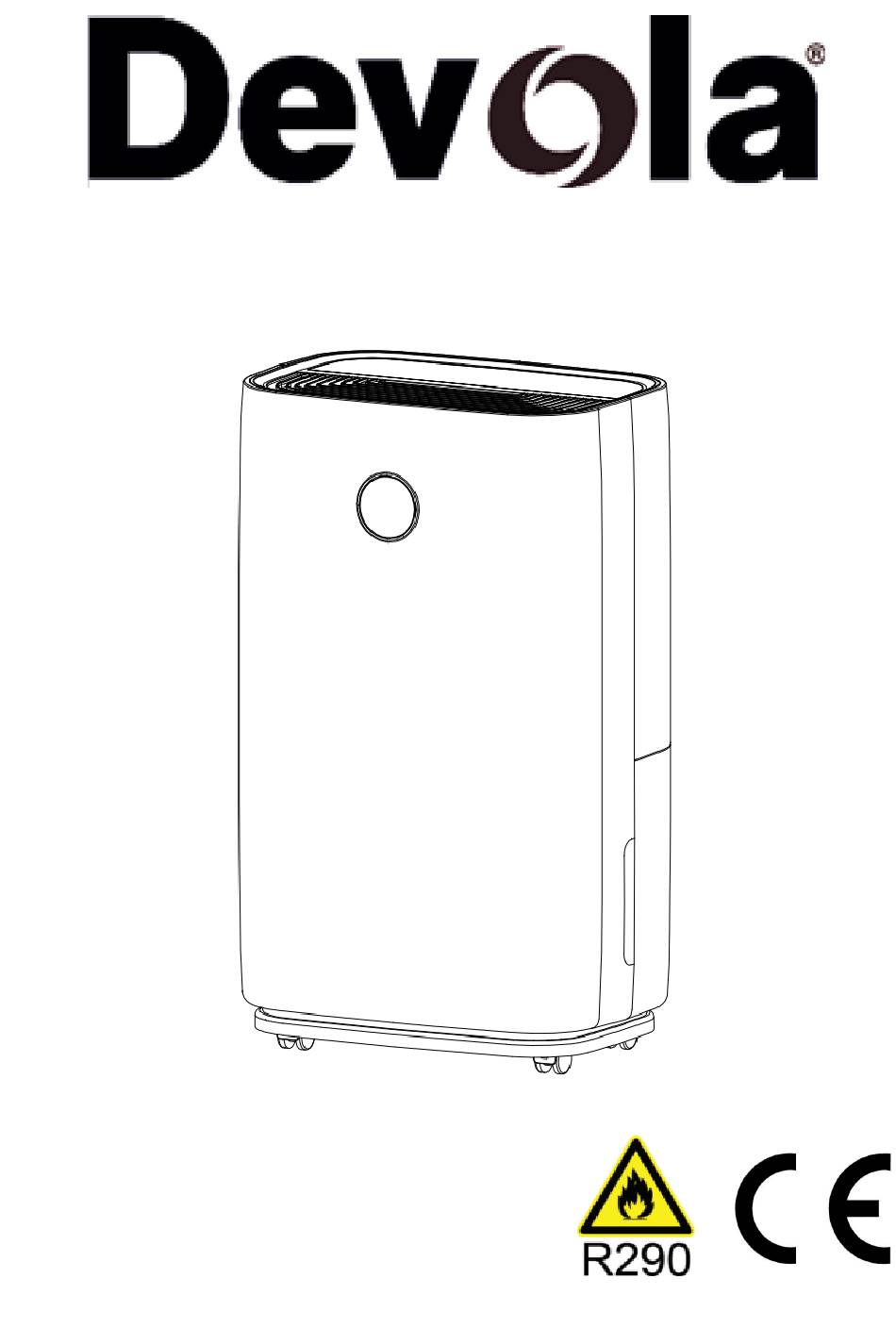

  • Page 1 DEHUMIDIFIER INSTRUCTION MANUAL Model (s): DV16L/DV16LWF DV20L/DV20LWF...

  • Page 2: Before You Begin

    Please keep this manual carefully for future reference! Thank you for purchasing our Devola dehumidifier. Be sure to read this manual carefully before using it. Any questions, please contact a professional service, or alternatively our customer service team for help.

  • Page 3: The Following Should Always Be Observed For Safety

    1.2 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY ⚫ This appliance is intended for domestic use but can also be for commercial use if the environment is safe to do so. ⚫ This appliance can be used by children aged 8 years and above. It can also be used by individuals with reduced physical, sensory, or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 4: For Your Safety

    2. FOR YOUR SAFETY Your safety is of upmost concern to us! Please read this manual carefully and fully understand before operating your dehumidifier. OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ⚫...
  • Page 5 ⚫ Do not put objects on the unit. ⚫ Do not climb or sit on the unit. ⚫ Do not insert fingers or other objects into the air outlet. ⚫ Do not touch the air inlet or the aluminum fins of the unit. ⚫...
  • Page 6 Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry, recognized assessment specification. Servicing should only be performed as recommended by the equipment manufacturer.
  • Page 7 2.2.5 Presence of fire extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment should be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area. 2.2.6 No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipework that contains or has contained flammable refrigerant should use any sources of...

  • Page 8: Product Overview

    – refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
  • Page 9 Handle Top panel Air Filter Water tank Back Shell Continuous drainage 口 3.1 FEATURES ✓ Powerful moisture removal (up to 20L/day dehumidification) ✓ Humidity Monitor shows current air humidity ✓ Auto mode automatically adjusts humidity levels ✓ A 12-hour timer to set the time of operation ✓...

  • Page 10: Installation

    4. INSTALLATION 4.1 LOCATION 1. Place the unit on a firm, level surface in an area with at least 30cm of free space around it to allow for proper air circulation. 2. Never install the unit where it could be subject to: ⚫...

  • Page 11: Operating The Device Safely

    4.2 OPERATING THE DEVICE SAFELY 1. Check the device after unpacking for any damage or scratches on it. 2. Operate this unit in an ambient temperature from 5°C to 35°C. 3. Do not use the unit outdoors. This dehumidifier is intended for indoor use only. 4.

  • Page 12: Operation

    5. OPERATION 5.1 DIGITAL DISPLAY 5.2 CONTROL PANEL 5.3 SETTINGS Power In the standby state, press the power button to turn on, the operation indicator lights up and the default fan speed is high, the LED shows ambient humidity. In the power-on state, press the power button to turn off, the running indicator light goes off and the compressor stops immediately, and then the fan will shut down after 30 seconds.
  • Page 13 ● Sleeping mode: Touch the sleep button, the button lights up and the sleep function will be activated. Press and hold the sleep button for 3 seconds to reset the filter. Timer Press the timer button to set the 0-12-hour timing function. The timer can only be set in 1-hour increments.
  • Page 14 Scan the corresponding QR code to directly download. Note: Depending on the provider, there may be costs incurred when downloading the app. Information on How to Use the App This appliance allows you to operate the appliance via your home network. A prerequisite is a permanent Wi- Fi connection to your router and the app “Smart Life-Smart Living”.
  • Page 15 6. Go to Small Home Appliances, select “Air Conditioner” and follow the instructions on your device. 7. Once the appliance has been successfully connected, the Wi-Fi indicator will illuminate. Now you can operate the appliance using the app. 8. Press and hold the Timer button for about 5 seconds, the appliance disconnects and the Wi-Fi indicator will switch off.
  • Page 16 Pull out the water tank Empty the water tank Replace the empty tank back into the unit...
  • Page 17 I Warning! ▪ Do not discard the magnets and plastic rivets in the tank. Otherwise, the dehumidifier cannot be started, or the machine will not automatically stop working when the water tank is full, and the condensed water overflow will damage the floor of the room.

  • Page 18: Maintenance

    Warning Please do not block the drain or drainpipe. If a blockage occurs the condensed water will flow into the tank. Please do not bend the drainpipe. The height of the drainpipe should be lower than the outlet. The drainpipe must be firmly connected to the outlet. 6.
  • Page 19 Rinse under running water or using the vacuum to clean the dust. Reassemble the air filter.

  • Page 20: Troubleshooting

    TROUBLESHOOTING SYMPTOM INSPECTION SOLUTION ✓ Check the power connection in secure. ➢ Insert the power cord securely into the wall outlet. ✓ Check if the water level indicator light is The unit is not operating. ➢ Empty the water tank and reinstall correctly. illuminated.

  • Page 21: Warranty

    This product is covered by a standard parts or replacement warranty for a period of 12 months from the date of purchase. Extend your warranty for 12 months for free by visiting www.devola.co.uk/warranty. Incorrect installation and failure to follow correct operating instructions are excluded. Consequential costs such as labour charges or damage to surroundings are expressly excluded.
