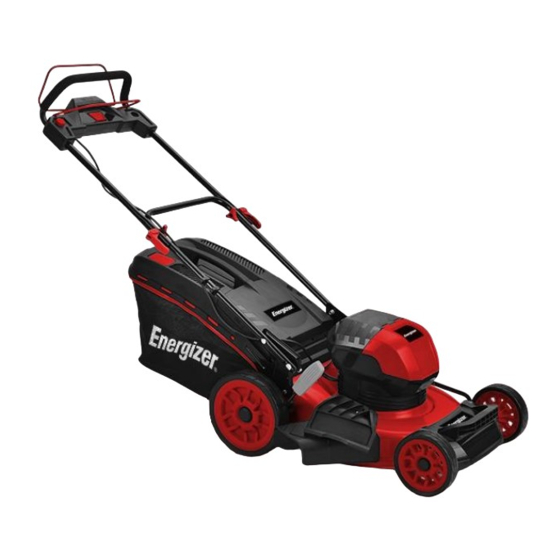

- Page 1 ORIGINAL INSTRUCTIONS >EN 40V CORDLESS LAWN MOWER EZ40VTDE46TN USER GUIDE CAUTION Read the instructions before using this machine.
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENT 1. INTENDED USE 2. SAFETY WARNING 3. SYMBOLES 4. THE PRODUCT 5. ASSEMBLY 6. OPERATION 7. CARE AND MAINTENANCE 8. SERVICE AND ADJUSTMENTS 9. TRANSPORTING LITHIUM BATTERIES 10. RECYCLING AND DISPOSING 11. CE DECLARATION OF CONFORMITY 12. WARRANTY 13. PRODUCT FAILURE 14. -
Page 5: Intended Use
1. INTENDED USE This mower is designed for natural grass mowing. Any other use is prohibited. It is suitable only for private use in a garden or plot. Lawnmowers designed for private plots or gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas. - Page 6 9) Avoid operating the equipment in wet grass. 10) Always be sure of your footing on slopes. 11) Walk, never run. 12) Mow across the face of slopes, never up and down. 13) Exercise extreme caution when changing direction on slopes. 14) Do not mow excessively steep slopes.
- Page 7 - Whenever you leave the machine. - Before clearing blockages or unclogging chute. - Before checking, cleaning or working on the lawnmower; - After striking a foreign object. Inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower. 24) If lawnmower starts to vibrate abnormally (check immediately): - Inspect for damage.
- Page 8 safety. 33) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine. 34) Always allow the machine to cool before storing. 35) After use and before storage, remove the battery from the machine and check for damage.
- Page 9 CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of children. - Keep children out of the mowing area and under the watchful care of a responsible adult. - Do not allow children under the age of 14 to operate this mower.
-
Page 10: Symboles
3. SYMBOLS Read this instruction book carefully before using the lawn mower and keep it in a safe place for future reference. Risk of projections. Keep bystanders away. Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove disabling device before maintenance. -
Page 11: The Product
This lawnmower is provided without battery and battery charger. Please buy a battery pack (battery + charger) from the same trademark of this tool. The recommended product is: ENERGIZER 40V LITHIUM-ION BATTERY CHARGER. Do not use a non recommended battery. Before using the battery and the charger, carefully read the instruction manuals provided... - Page 12 4.2 TECHNICAL DATA Model EZ40VTDE46TN Voltage 36Vd.c. (max. 40V d.c.) No load speed 2800-3300/min Cutting width 457 mm Cutting height 35-90mm (6 positions) Volume of grass catcher 60 L Net weight 22 kg Guarantee sound power level LwA 94 dB(A) Sound pressure level LpA 88.4 dB(A) K= 3 dB(A)
-
Page 13: Assembly
5. ASSEMBLY 5.1 UNPACKING Before beginning assembly of the product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. ... - Page 14 (Fig. B) NOTE: When using the grass catcher, do not install either the side discharge chute or the mulching plug. INSTALLING/REMOVING THE MULCHING PLUG (Fig C): 1) To remove the mulching plug, lift the rear discharge door (1). 2) Grasp the handle (2) of the mulching plug. 3) Lift and pull the mulching plug out using the handle.
- Page 15 (Fig D) NOTE: When using side discharge, do not install the grass catcher bag. Ensure the mulch plug is installed. TO INSTALL BATTERY PACK (Fig. E): 1) Lift and hold up the battery door (1). 2) Align the battery (2) with the mower’s battery port. 3) Make sure the battery release button (3) snaps in place and that the battery is fully seated and secure in the mower before beginning operation.
-
Page 16: Operation
6. OPERATION 6.1 STARTING/STOPPING (FIG F) Open the battery cover. Install the battery. Close the battery cover. Press and hold the safety lock-out button (1). Pull the bail level (2) upward to the handle to start the mower and release the button. - Page 17 6.7 SLOPE GAUGE WARNING: Slopes are a major factor related to accidents involving slips and falls, which can result in severe injury. Operating the mower on a slope requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, use the slope gauge that is included as part of this manual to measure slopes before operating this unit on a sloped or hilly area.
-
Page 18: Care And Maintenance
been allowed to grow longer than 4” (10cm), mow the lawn twice in order to reduce the grass height to a maximum of 3 1/4” (8.3cm). Walk at a steady pace. Overlap the cutting rows. Do not let the grass get too tall. If the grass gets too long, start at the highest cutting position and work down to the desired cutting height. -
Page 19: Service And Adjustments
NOTE: Be sure to replace the parts in the exact order in which they were removed. When installing the cutting blade, verify that it is installed with the curved ends pointing to the mower deck, and not toward the ground. 7.2 CLEANING THE MOWER WARNING: In order to reduce the risk of electric shock, do not expose the mower to water. -
Page 20: Transporting Lithium Batteries
The mower does not mulch Wet grass clippings are sticking to Wait until the grass dries before properly. the underside of the deck. mowing. The mulching plug is missing. Install the mulching plug. The mower is hard to push. The grass is too tall, or the cutting Raise the cutting height. -
Page 21: Ce Declaration Of Conformity
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below Cordless LAWNMOWER EZ40VTDE46TN Serial number: 20210133521-20210133680 Complies with the following European Directives: Machinery Directive 2006/42/EC... -
Page 22: Warranty
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 25 NOTES _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________...
