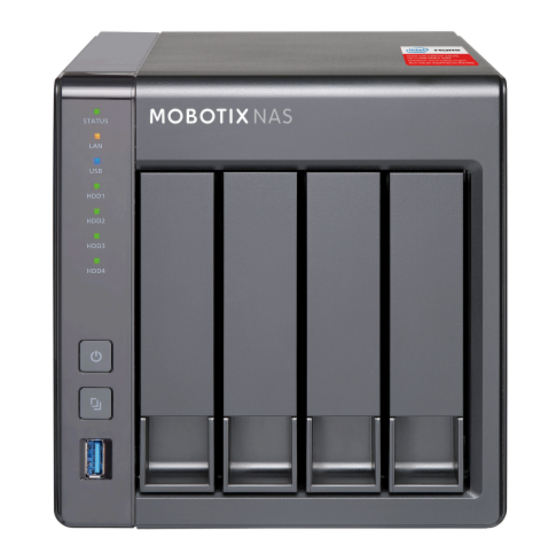

- Page 1 Quick Guide – MOBOTIX NAS & MOVE/ONVIF Cameras Setting up MOBOTIX NAS/MxManagementCenter Using MOVE/ONVIF Cameras...
-
Page 2: General Information
• MxManagementCenter: 2.2+ IMPORTANT: We recommend updating all system components to the latest software releases. Please download the latest releases of MxMC, MOBOTIX NAS, and MOBOTIX MOVE cameras from the MOBOTIX website www.mobotix.com: • Support > Download Center > Software Downloads... - Page 3 For bandwidth-optimized usage and professional applications, it is highly recommended to use H.264 (requires a license for MxManagementCenter). For more information on licensing models, please read the Compact Guide MxMC 2.0 from the MOBOTIX website www.mobotix.com: • Support > Download Center > Documentation > Brochures & Guides •...
- Page 4 Motivation The objective of this document is to set up a MOBOTIX NAS as a storage device for MOBOTIX Move-Kameras bzw. ONVIF-Kameras. The MOBOTIX NAS QVRProServer recording software is required for recording from MOBOTIX Move-Kameras bzw. ONVIF-Kameras on the NAS. For most efficient configuration of camera settings, use the Advanced Configuration feature of MxManagementCenter.
- Page 5 Enter the access privileges. You need access privileges of a user with ONVIF administration level access. For MOBOTIX MOVE cameras, the admin user in the camera’s web interface is also the ONVIF admin. For other camera brands (e.g., Axis), the roles for web interface admin and ONVIF admin are separate.
- Page 6 Step 2 – Adjust the Image Settings for Live and Recording Open lock icon to enter edit mode, then... 1. Right-click one or more selected MOVE/ONVIF cameras. 2. Open Connection Settings. 3. Select your image and codec settings. A Note on Image & Codec Settings: •...
- Page 7 A note on the Integration Key • The key will be automatically set while adding the camera. • The key is required for adding the camera in the MOBOTIX NAS. If the integration key is not shown below, please try the follow steps: •...
- Page 8 Step 4: Adding NAS in MxManagementCenter (1) Open the Components View of • MxMC In tab File Servers add a MOBOTIX • NAS (ONVIF)
- Page 9 Step 4: Adding NAS in MxManagementCenter (2) From the Download Links section, • download and install the Device Finder app Also Download the Container App and the • Recorder App • Optional: Download the latest NAS firmware (see also step 9)
- Page 10 Step 5: Device Finder • Select your MOBOTIX NAS • Note the IP-Adresse of the NAS • If your MOBOTIX NAS has not yet been initialized, start the Intelligent Installation Guide.
- Page 11 Step 6: Initially configure the NAS (1) - Set the access data • If necessary, change the NAS-Name • Set a password • Click on Next...
- Page 12 Step 6: Initially configure the NAS (2) – Optionally configure hard disks Be sure to configure the data carriers! Otherwise, errors may occur during the installation of apps. • Choose Configure Disk Now • Configure the available disks according to your requirements •...
- Page 13 Step 7: Setting up the NAS in the MxManagementCenter • Enter the access data for your NAS under File Server Settings • Click Configure NAS...
- Page 14 Step 8: Login to NAS Web Interface • Log in to the web interface of the NAS...
- Page 15 Step 9: optionally update firmware (1) Open the Control Panel •...
- Page 16 Step 9: optionally update firmware (2) Click on Firmware Update •...
- Page 17 Step 9: optionally update firmware (3) Select the firmware (see step 4) • Click on Update System • Follow the instructions on the screen •...
- Page 18 Step 10: Install Apps on NAS (1) - Recording software Open the App Center. •...
- Page 19 Step 10: Install App on NAS (2) - Recording Software 1. Click Install Manually. 2. Install the following apps (you downloaded them in step 4): • Container Station App • QVR Pro App...
- Page 20 Step 11: Initial setup of QVR Pro (1) Open the QVR Pro •...
- Page 21 Step 11: Initial setup of QVR Pro (2) Make sure that the system requirements are met! • When all system requirements are met, click Next...
- Page 22 Step 11: Initial setup of QVR Pro (3) • If date and time settings are correct, click Apply...
- Page 23 IMPORTANT: Reserve extra Recording Space if fully allocated and do not reboot the MOBOTIX NAS or add cameras before this task is you’d like to add MOBOTIX IoT cameras later on! finished! 1. Select Recording Storage. 2. Create Recording Space.
- Page 24 After the recording spaces have been completely allocated, open Camera Settings in QVR Pro (Recorder Software). QVR Pro is only suitable for MOVE/ONVIF cameras. Therefore, make sure that no MOBOTIX IoT cameras have been selected. You can recognize MOBOTIX IoT cameras by their MAC address.
- Page 25 Step 14: Add Cameras in QVR (2) In the next window, check whether MOBOTIX NAS has recognized the desired camera brand and IP address. Continue by adding any missing camera data, such as: Name: Enter a unique description (used in QVR Pro only).
- Page 26 Note: When the camera is added, two profiles (MxHiQuality for HiRes and MxLoQuality for LoRes) are automatically created in MxMC. The values set in MxMC for MxHiQuality are automatically transferred to the MOBOTIX NAS. Note: Simultaneous operation of Normal Recording and Event Recording is currently not supported.
- Page 27 Step 15: Finish MOBOTIX NAS Setup Finish and then close the wizard. In the Camera Settings window, check that all cameras have been added to the QVR Pro software. Wait about 5 min until the MOBOTIX NAS has connected to the new cameras.
- Page 28 Step 16: Assign Recording Paths in MxManagementCenter (1) 1. Right-click to open the menu. 2. Click on Components.
- Page 29 Step 16: Assign Recording Paths in MxManagementCenter (3) 1. Select Type MOBOTIX NAS (ONVIF). 2. Enter MOBOTIX NAS IP Address. 3. Enter user name and password. 4. Click on Test.
- Page 30 Step 17: Set up MxMC Recording Settings for Each Camera In the Recording Settings of MxManagementCenter, select the corresponding Recording Path (MOBOTIX NAS). Then make sure that the correct camera IP is specified under Device Directory. 1. Click on Recording Settings.
- Page 31 Done – MxMC Playback of MOVE/ONVIF Cameras Search by Date and Time Snapshot Export Playback (1x Speed) Mark Images Not Supported...
- Page 32 European Union, the U.S.A. and in other countries • Subject to change without Germany www.mobotix.com notice • MOBOTIX do not assume any liability for technical or editorial errors or omissions contained herein • All rights reserved • © MOBOTIX AG...
