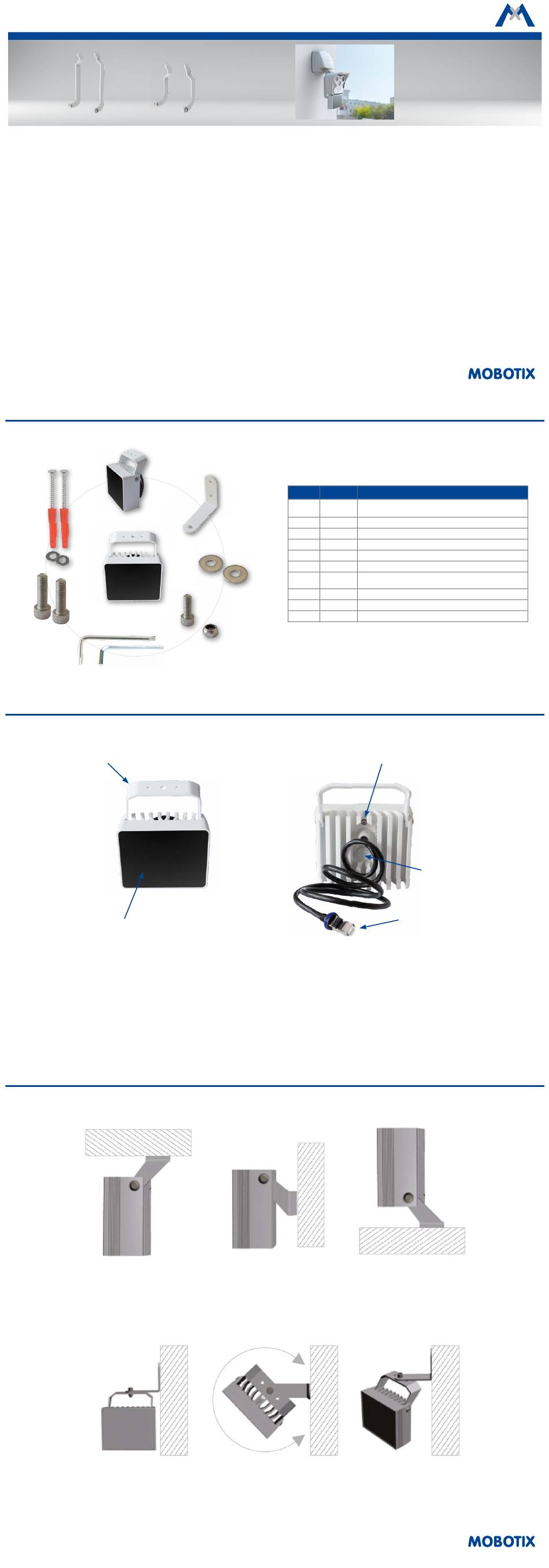

Mobotix MxIRLight Quick Install

Optional Accessories

MxIRLight
Mounting bracket for M15/M16
Mx-M-IRA-ML
• High-performance IR illuminator in a robust all-aluminum housing
• Simple mounting and easy installation
• PoE+ power supply: power consumption max. 19 W
• Direct connection to a MxSplitProtect or a network cable
• Integrated photosensor for automatic on and off switching

MxIRLight Standard Delivery

1.10
1.9
1.8
1.7
1.6
Product Features and Manner of Functioning
Standard bracket
Infrared-permeable protective glass
The photosensor on the back of the housing measures the ambient brightness. When the measured ambient light level drops below 3 lux, the IR illu-
minator switches on automatically and when the measured ambient brightness exceeds the threshold of 3 lux for more than 150 seconds, it switches
off automatically. This prevents the IR illuminator from switching off during short term increase in brightness caused by flashlights, vehicle headlights,
flashes, etc.
The supplied network cable with weatherproof RJ45 connector can be used to connect the IR illuminator to an MxSplitProtect without any additional
accessories. It can also be connected directly to a network cable, which is used for the PoE + power supply of the MxIRLight. Since the MOBOTIX RJ45
connectors are compatible with standard RJ45 sockets, they can be used for the weatherproof connection of commercially available connectors and
protective housings.
Mounting Possibilities
Mounting with standard bracket
Ceiling mount
Mounting with additional angle bracket (see item 1.2 "Standard Delivery")
Mounting bracket for M25/M26
Mx-M-IRA-M
1.1
1.2
1.4
1.5
Wall mount for continuous rotation about the vertical axis
Quick Install
MxIRLight
MxIRLight
Outdoor Infrared Illuminator (IP67)
PoE-supplied infrared illuminator (860 nm) for cameras
with black-and white image sensor, available in six product
variants with illumination angles from 15 ° to 120 °
More information:
www.mobotix.com > Products > Accessories > System Components > MxIRLight
32.950-001_EN_09/2017
Item Count
1.1 1
1.2 1
1.3 2
1.4 1
1.5 1
1.3
1.6 1
1.7 2
1.8 2
1.9 2
1.10 2
Wall mount
Part Name
Infrared illuminator in aluminum housing with pre-mounted
0.9 m patch cable with RJ45 connector
Angle bracket for wall mounting
Washer
Allen screw and nut
Allen wrench 3 mm
Torx wrench TX20
Allen screw M6x20 (to mount the mounting brackets,
optional accessories), stainless steel
Washer Ø 6.4 mm, stainless steel
Screw anchor S8
Wood screw 4.5x60 mm, stainless steel
Photosensor
Pressure compensation valve
Cable with MOBOTIX RJ45 connector
Floor mount
