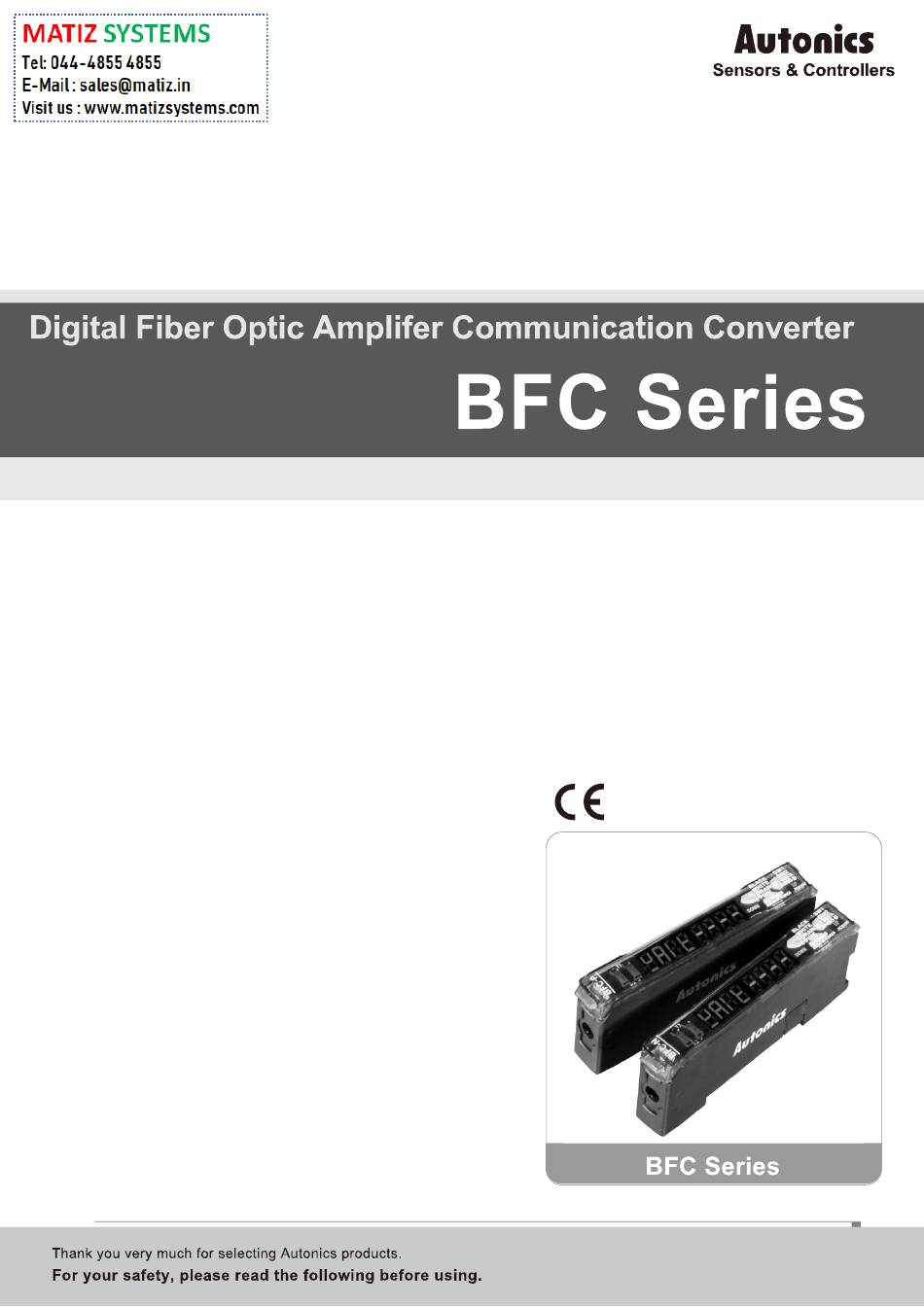

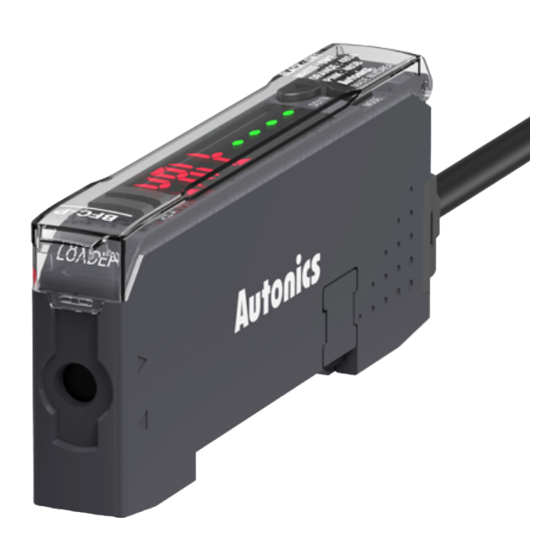

  • Page 1 USER MANUAL For COMMUNICATION © Copyright Reserved Autonics Co., Ltd.
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing an Autonics product. Please store this manual in a place where user can find easily, because it contains the guidance for the product and how to correctly use it. © Copyright Reserved Autonics Co., Ltd.

  • Page 4: User Manual Guide

    The manual's content may vary depending on changes to the product's software and  other unforeseen developments within Autonics, therefore, the contents of this manual is subject to change without prior notice. We manage to describe this manual more easily and accurately. Nevertheless, if you ...

  • Page 5: User Manual Symbols

    Failure to follow instructions can result in serious injury or death Failure to follow instructions can lead to a minor injury or product damage An example of the concerned feature’s use Annotation mark ※1 © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Safety Precautions

    When cleaning the unit, do not use water or an oil-based detergent.  It may cause a fire, give an electric shock or damage to the product. ※ The specifications and dimensions of this manual are subject to change without any notice. © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Table Of Contents

    Read Input Register(ERROR List by Channel) ..........33 2.10 Read Holding Register& Preset Single Register & Write Multiple Register(Func:03/06/16) ..................34 2.10.1 Parameter Map List ..................34 2.10.2 Parameter Mapping Table ................40 2.11 Exception process ....................44 © Copyright Reserved Autonics Co., Ltd.

  • Page 8: Table Of Contents

    Table of Contents viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: Modbus Rtu Protocol

    Response (Slave)  Error Check(CRC16) Data Data Slave Address Function Byte Count (000008 to 000001) (000010 to 000009) Lo(Lower) Hi(Upper) 11 H 01 H 02 H CD H 01 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 10: Read Input Status(Func 02-02H)

    Response (Slave)  Error Check(CRC16) Data Data Slave Address Function Byte Count (100008 to 100001) (100010 to 100009) Lo(Lower) Hi(Upper) 11 H 02 H 02 H CD H 01 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 11: Read Holding Registers(Func 03-03H)

     Data(Data) Data(Data) Error Check(CRC16) Slave Address Function Byte Count Hi(Upper) Lo(Lower) Hi(Upper) Lo(Lower) Lo(Lower) Hi(Upper) 11 H 03 H 04 H 02 H 2B H 00 H 64 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 12: Read Input Registers(Func 04-04H)

     Data(Data) Data(Data) Error Check(CRC16) Slave Address Function Byte Count Hi(Upper) Lo(Lower) Hi(Upper) Lo(Lower) Lo(Lower) Hi(Upper) 11 H 04 H 04 H 00 H 0A H 00 H 14 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 13: Force Single Coil (Func 05-05H)

    ## H Response (Slave)  Starting address Preset data Error check (CRC16) Slave address Function High High High 11 H 05 H 00 H 00 H FF H 00 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 14: Preset Single Registers(Func 06-06H)

    Response (Slave)  Starting Address Preset Data(Data) Error Check(CRC16) Slave Address Function Hi(Upper) Lo(Lower) Hi(Upper) Lo(Lower) Lo(Lower) Hi(Upper) 11 H 06 H 00 H 00 H 00 H 0A H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 15: Preset Multiple Registers(Func 16-10H)

    Please use the Single Register Write function rather than Multi Register Write function if you use the slave(device) connecting with external devices such as PLC, Graphic Panel, except in the case of download that presets the minimum/maximum or basic value of parameter by Input specifications in PC Loader Program. © Copyright Reserved Autonics Co., Ltd.

  • Page 16: Exception Response-Error Code

    E8 H 00 H 01 H ## H ## H Response (Slave)  Error Check(CRC16) Slave Function Exception Code Address +80 H Lo(Lower) Hi(Upper) 11 H 81 H 02 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Modbus Mapping Table

    “0” : OFF “1” : ON 100030(001D) CH30 OUT LED Status “0” : OFF “1” : ON 100031(001E) CH31 OUT LED Status “0” : OFF “1” : ON 100032(001F) CH32 OUT LED Status “0” : OFF “1” : ON © Copyright Reserved Autonics Co., Ltd.

  • Page 18: Read Input Register(Func: 0X04)

    Reserved 300118(0075) COIL START ADDRESS 300119(0076) COIL QUANTITY 300120(0077) INPUT START ADDRESS 300121(0078) INPUT QUANTITY 300122(0079) HOLDING REG START ADDRESS 300123(007A) HOLDING REG QUANTITY 300124(007B) INPUT REG START ADDRESS 300125(007C) INPUT REG QUANTITY Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 19: Read Input Register(Present Value List)

    300208(00CF) DSPF: Indicates 0 to -UFAST, FAST, STD: Indicates 0 to 4000 4000/9999 -LONG: Indicates 0 to 9999 CH9 Present Value Indicates incident light level in the decimal 300209(00D0) DSPF: Indicates 0 to system © Copyright Reserved Autonics Co., Ltd.
  • Page 20 300217(00D8) DSPF: Indicates 0 to -UFAST, FAST, STD: Indicates 0 to 4000 4000/9999 -LONG: Indicates 0 to 9999 CH18 Present Value Indicates incident light level in the decimal 300218(00D9) DSPF: Indicates 0 to system © Copyright Reserved Autonics Co., Ltd.
  • Page 21 300226(00E1) DSPF: Indicates 0 to -UFAST, FAST, STD: Indicates 0 to 4000 4000/9999 -LONG: Indicates 0 to 9999 CH27 Present Value Indicates incident light level in the decimal 300227(00E2) DSPF: Indicates 0 to system © Copyright Reserved Autonics Co., Ltd.
  • Page 22 The Number of Added 300251(00FA) The Last Amplifier Unit NO. Channels Reserved ※When communicates Master unit, BFC checks the number of added channels. If the number is over 32, the over channels are as illegal address. © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Read Input Register(Set Value List)

    DSPF: Indicates 0 to 4000/9999 -UFAST, FAST, STD: Indicates 0 to 4000 -LONG: Indicates 0 to 9999 CH9 Setting Value Indicates incident light level in the decimal 300309(0134) DSPF: Indicates 0 to 4000/9999 system © Copyright Reserved Autonics Co., Ltd.
  • Page 24 DSPF: Indicates 0 to 4000/9999 -UFAST, FAST, STD: Indicates 0 to 4000 -LONG: Indicates 0 to 9999 CH18 Setting Value Indicates incident light level in the decimal 300318(013D) DSPF: Indicates 0 to 4000/9999 system © Copyright Reserved Autonics Co., Ltd.
  • Page 25 DSPF: Indicates 0 to 4000/9999 -UFAST, FAST, STD: Indicates 0 to 4000 -LONG: Indicates 0 to 9999 CH27 Setting Value Indicates incident light level in the decimal 300327(0146) DSPF: Indicates 0 to 4000/9999 system © Copyright Reserved Autonics Co., Ltd.
  • Page 26 -LONG: Indicates 0 to 9999 Indicates incident light level in the decimal CH32 Setting Value system 300332(014B) DSPF: Indicates 0 to 4000/9999 -UFAST, FAST, STD: Indicates 0 to 4000 -LONG: Indicates 0 to 9999 Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 27: Read Input Register(Led Status List)

    CH30 Output LED Status Front part Output LED status (Dual, Single) 300431(01AE) CH31 Output LED Status Front part Output LED status (Dual, Single) 300432(01AF) CH32 Output LED Status Front part Output LED status (Dual, Single) Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 28: Read Input Register(Hi Peak Value List By Channel)

    [Output of max. incident light level ] Indicates high peak value in decimal system 300516(0203) CH16 HI Peak Value [Output of max. incident light level ] 300517(0204) CH17 HI Peak Value Indicates high peak value in decimal system © Copyright Reserved Autonics Co., Ltd.
  • Page 29 Indicates high peak value in decimal system 300531(0212) CH31 HI Peak Value [Output of max. incident light level ] Indicates high peak value in decimal system 300532(0213) CH32 HI Peak Value [Output of max. incident light level ] © Copyright Reserved Autonics Co., Ltd.

  • Page 30: Read Input Register(Lo Peak Value List By Channel)

    Indicates low peak value in decimal system 300566(0235) CH16 LO Peak Value [Output of min. incident light level] Indicates low peak value in decimal system 300567(0236) CH17 LO Peak Value [Output of min. incident light level] © Copyright Reserved Autonics Co., Ltd.
  • Page 31 Indicates low peak value in decimal system 300581(0244) CH31 LO Peak Value [Output of min. incident light level] Indicates low peak value in decimal system 300582(0245) CH32 LO Peak Value [Output of min. incident light level] Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 32: Read Input Register(Recognized Model List By Channel)

    300630(0275) CH30 Product type Dual: 0, Single: 1, None Display: 2 300631(0276) CH31 Product type Dual: 0, Single: 1, None Display: 2 300632(0277) CH32 Product type Dual: 0, Single: 1, None Display: 2 Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 33: Read Input Register(Error List By Channel)

    NONE:4 300729(02D8) CH29 ERROR ERRL:0, ERR:1, ERA:2, ERB:3, NONE:4 300730(02D9) CH30 ERROR ERRL:0, ERR:1, ERA:2, ERB:3, NONE:4 300731(02DA) CH31 ERROR ERRL:0, ERR:1, ERA:2, ERB:3, NONE:4 300732(02DB) CH32 ERROR ERRL:0, ERR:1, ERA:2, ERB:3, NONE:4 Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 34: Read Holding Register& Preset Single Register & Write Multiple Register(Func:03/06/16)

    LDON [Light/Dark On Setting] Operation mode 400011(000A) 03/06/16 ①L-ON: 0 ②D-ON: 1 ①Light On, ② Dark On COMM [Communication Write] Communication write 400012(000B) 03/06/16 ①ENA: 0 ②DISA: 1 ①Enable, ②Disable 400013(000C) 03/06/16 LOCK [Lock Setting] Lock setting © Copyright Reserved Autonics Co., Ltd.
  • Page 35 Initializes parameters ①NO ② YES Reserved ※For single display type, it processes as an error that if previous set value is not equal during write instruction. ※CH2 to 31 increase address by the 100. © Copyright Reserved Autonics Co., Ltd.
  • Page 36 LOCK [Lock Setting] Lock setting 400113(0070) 03/06/16 ①OFF: 0 ② LOC1: 1 ③ LOC2: 2 ①Unlock, ②Lock 1, ③Lock 2 Reserved CH2 – Data Bank Group 400121(0078) 03/06 LOAD [Data Bank Load] Loading set data Bank © Copyright Reserved Autonics Co., Ltd.
  • Page 37 ①BAK0 ②BAK1 ③BAK2 unit Teaching all sensitivity setting of TCH1 : ALL[Teaching All] 400126(007D) 03/06 amplifier unit connected communication ①NO ②YES converter unit INIT [Initialize] 400127(007E) 03/06 Initializes parameters ①NO ② YES Reserved © Copyright Reserved Autonics Co., Ltd.
  • Page 38 LOCK [Lock Setting] Lock setting 403113(0C28) 03/06/16 ①OFF: 0 ② LOC1: 1 ③ LOC2: 2 ①Unlock, ②Lock 1, ③Lock 2 Reserved CH31 – Data Bank Group 403121(0C30) 03/06 LOAD [Data Bank Load] Loading set data Bank © Copyright Reserved Autonics Co., Ltd.
  • Page 39 ①BAK0 ②BAK1 ③BAK2 unit Teaching all sensitivity setting of TCH1 : ALL[Teaching All] 403126(0C35) 03/06 amplifier unit connected communication ①NO ②YES converter unit INIT [Initialize] 403127(0C36) 03/06 Initializes parameters ①NO ② YES Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 40: Parameter Mapping Table

    BAK2 => LDON : L-ON Operation mode setting of Bank 2 400079(004E) 03/06/16 BAK2 => COMM : ENA Communication write setting of Bank 2 400080(004F) 03/06/16 BAK2 => LOCK : OFF Lock setting of Bank 2 © Copyright Reserved Autonics Co., Ltd.
  • Page 41 BAK1 => COMM : ENA Communication write setting of Bank 1 400160(009F) 03/06/16 BAK1 => LOCK : OFF Lock setting of Bank 1 400161(00A0) 03/06/16 BAK1 => SET : 2000 SV setting of Bank 1 © Copyright Reserved Autonics Co., Ltd.
  • Page 42 BAK1 => TMOD : OFF Timer operation mode setting of Bank 1 403155(0C52) 03/06/16 BAK1 => TIME : 2000 Time setting of Bank 1 403156(0C53) 03/06/16 BAK1 => SENS : AUTO Teaching sensitivity setting of Bank 1 © Copyright Reserved Autonics Co., Ltd.
  • Page 43 BAK2 => COMM : ENA Communication write setting of Bank 2 403181(0C6C) 03/06/16 BAK2 => LOCK : OFF Lock setting of Bank 2 403182(0C6D) 03/06/16 BAK2 => SET : 2000 SV setting of Bank 2 Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 44: Exception Process

    It processes as busy when communication converter unit communicating Master is  changing parameter settings. Group teaching [TCHI]  Loading data Bank [LOAD]  Saving data Bank [SAVE]  Copying group data bank [COPY]  © Copyright Reserved Autonics Co., Ltd.
  • Page 45 2 Modbus Mapping Table © Copyright Reserved Autonics Co., Ltd.
  • Page 46 2 Modbus Mapping Table © Copyright Reserved Autonics Co., Ltd. MSB-BFCC1-V1.3-1701US...
