Line Seiki G90-305 Installation Manual

Large electronic counter / display

Advertisement

Quick Links

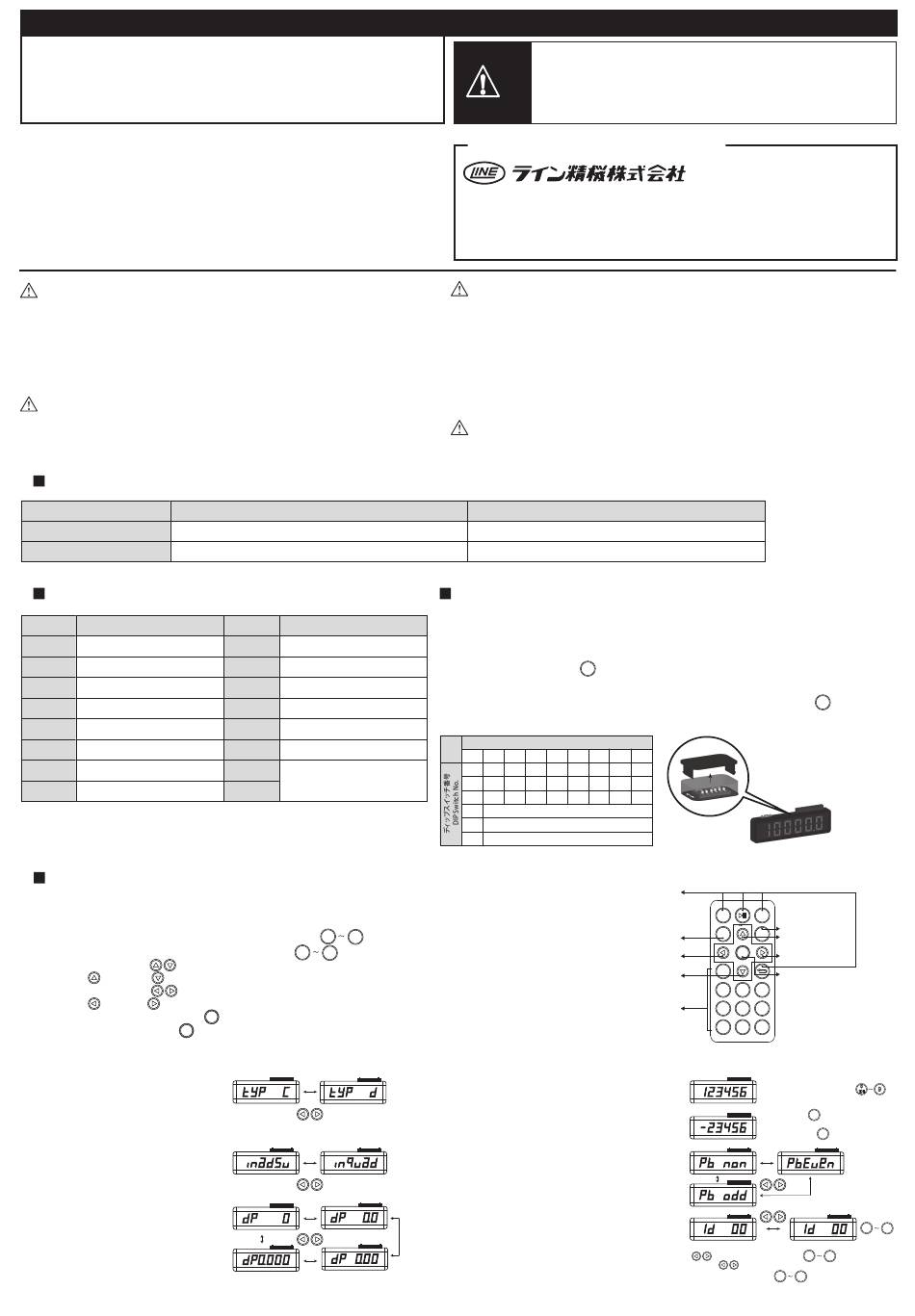

G90-305 / G95-305
大型電子カウ ンタ/表示器 取扱説明書
Large Electronic Counter / Display Instruction Manual
G90-305 / G95-305
この度は当社のG90-305 / G95-305をお買い上げ頂き、 誠にありがとうございます。
この製品を安全に正しく ご使用頂くために、 ご使用前にこの取扱説明書を
よくお読みになってください。
この説明書は、 いつでも使用できるよう大切に保管してく ださい。
Thank you for purchasing our G90-305 / G95-305.
Please read this instruction manual carefully before using to  ensure the correct usage
of this device.
Please keep this instruction manual for future reference.
   ご使用上の注意
・   本器を強い電磁波を出す機器の近くや静電気のたまっている物体の近くで使用しないでください。
・   本器を落としたり、 強い衝撃を与えたり しないでください。
・   本器は防水形ではありませんので、 水中や水のかかる場所での使用は避けてください。
・   本器を直射日光、 ほこり、 高温 ・ 多湿の影響を受ける環境で使用、 保管しないでください。
・   本器の分解、 改造等を絶対に行わないでください。
・   本器の外装の汚れをシンナーなどの有機溶剤で拭かないようにしてください。
・   定格以外の電圧を印加しますと内部回路が破損する恐れがあります。

EN/IEC規格対応上のご注意
・   電源-入力間は基礎絶縁です。
・   強化絶縁(二重絶縁)を確保するためには外部回路側で基礎絶縁を確保してください。
形式 MODELS
形式
Model
桁数
No. of Digits
質量
Weight
端子接続図 TERMINAL CONNECTIONS
端子番号 No.
接続                   Connection
1
COM+
2
COM-
3
未使用    N.C (No Connection)
4
GND
5
無接点入力A   1kHz IN A (Non-contact Input)
6
無接点入力B   1kHz IN B (Non-contact Input)
7
+12V
8
有接点入力A   20Hz IN A (Contact Input)
設定モード SETTINGS MODE
本体の設定は付属のリモコンにより行います。
The device settings can be configured using the remote control.
本体で設定したチャンネル番号に対応したリモコンの数字ボタン                        を1秒以上押すことにより設定モードに入ります。
To enter settings mode, press the channel number                       of the device for >1 second.
リモコンの上下ボタン           により、 設定項目を変更します。
Use up       and down       buttons to navigate the different settings menu.
リモコンの左右ボタン           により、 設定内容を変更します。
Use left      and right      buttons to change the setting option.
リモコンの 【ENTER / SAVE】 ボタン       を押すと変更を反映して動作モードに戻ります。
Press ENTER / SAVE button        to go back to running mode.
ENTER/
SAVE
●  タイプ設定 TYPE SETTINGS
・ カウンタタイプまたは表示器タイプ
   Counter type or Display type
● 計数方式 INPUT SETTINGS
・ 加算減算個別または90° 位相差
   Single input (AdSu) or Quad input
● 小数点位置設定
 DECIMAL POINT SETTINGS
・ 0または0.0または0.00または0.000
   Select dp 0, dp 0.0, dp 0.00 or dp 0.000
G90-305
6 (文字サイズ Digit Size : 56.8(H) mm x 32.4(W) mm)                     6 (文字サイズ Digit Size : 101.6(H) mm x 60.0(W) mm)
約1.5kg  approx. 1.5kg
端子番号 No.
接続              Connection
9
有接点入力B   20Hz IN B (Contact Input)
10
GND
11
入力禁止     INH (Input Inhibit)
12
リセッ ト         RES (Reset)
13
入力選択  IN SEL(Input Selection)
14
+12V
15
電源      Power
16
(AC100-240V)
1
8
1
8
ENTER/
SAVE
取扱いを誤った場合に、 取扱者が傷害を負う恐れのある場合や機器を
損傷する恐れのある場合の注意事項を記載しています。
Please note that misuse of this device may lead to injury to the user
or damage to the device.
Please observe all safety precautions and warnings in this instruction manual.
ATTENTION
●お問い合わせは下記まで
本社
〒152-0001 東京都目黒区中央町2-37-7
Head Office
37-7 Chuo-cho, 2-Chome, Meguro-ku,Tokyo 152-0001 Japan
お問い合わせ電話番号は当社ウェブサイトをご確認ください
Please visit our company website for contact details.
メールアドレス   Email    webtrade@line.co.jp      ホームページ https://www.line.co.jp



ATTENTION
・  Do not use this device near machines that emit strong electromagnetic fields or objects

that store static electricity.
・  Do not drop or subject this device to strong impact.
・  Do not use or store this device where it will be exposed to water or in places with wet conditions.
・  Do not use or store this device where it can be exposed to direct sunlight, dust, high

temperature and high humidity.
・  Do not attempt to disassemble or modify this device.
・  Do not use organic solvents such as thinners etc.  They will damage the external finish.
・  Internal circuit may be destroyed if a voltage outside the rated voltage is applied.

Conformance to EN/IEC standards
・  Basic insulation is provided between Power supply - Input circuit.
・  When reinforced insulation (Double insulation) is required,

apply basic insulation to the external-circuit-side.
約3kg
チャンネル番号 CHANNEL NUMBER
本体のDIPスイッチにより リモコンのチャンネル番号(No.1から8)を設定します。
The device channel number (No.1 to 8) is set by the DIP  Switch mounted in the
G90-305/G95-305 counter.
リモコンの 【SETUP】 ボタン         を長押し(1秒以上)することにより、
SETUP
本体にチャンネル番号を1秒間表示します。
The channel number can be displayed for 1 second when the SETUP button
of the remote control is pressed for longer than 1 second.
チャンネル番号 Channel Number
1
2
3
4
5
-
OFF
ON
OFF
ON
OFF
1
2
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
3
---
4
5
---
---
6
● 書き込み/表示値入力 WRITE OR DISPLAY VALUE
・ 書き込み値(リセッ ト時の初期値)設定(カウンタタイプ時)
   Write Reset Value for Counter  type
・ 表示値設定(表示器タイプ時)
   Display Value for Display type
● パリティビッ ト設定(通信設定)
     PARITY BIT SETTINGS (Communication setting)
・ パリティなし(non)、 偶数パリティ追加(even)
   または奇数パリティ追加(odd) 選択
   Set parity bit to none, even or odd.
● IDナンバー設定(通信設定)
     ID NUMBER (Communication setting)
・ 00-99の範囲内でシリアル通信時のIDナンバーを設定します。
   Set ID number for RS485 communication
-1-
Customer Service
LINE SEIKI CO., LTD.

       Website https://www.lineseiki.com
G95-305
approx. 3kg
6
7
8
ON
OFF
ON
OFF
ON
ON
ON
ON
ON
ON
OFF
未使用ボタン
Unused Button
VOL-
VOL+
PREV
STOP/
SETUP
SETUPボタン
MODE
SETUP Button
ENTER/
◀ボタン
SAVE
CH-
CH+
Left Button
0
10+
▼ボタン
NEXT
Down Button
1
2
3
数字ボタン
4
5
6
Number Button
(0〜9)
7
8
9
1、 2、 3、 4、 5、 6の順に押すと
数字が左にシフトします。
Press 1, 2, 3, 4, 5, then 6.
Digit shifts to the left.
STOP / MODE         ボタンを押すと、
左端の桁がマイナス表示に置き換えられます。
Press STOP/MODE         to toggle negative sign.
First digit is replaced.
1の桁
ONES
            ボタンで桁数を、 数字ボタン                      で数を変更します。
Use the               buttons to change the number of digits,
use the Number buttons                       to change the number.
SETUP
 STOP/MODE ボタン
 STOP/MODE Button
▲ボタン
 Up Button
▶ボタン
Right Button
ENTER/SAVEボタン
ENTER/SAVE Button
STOP/
MODE
STOP/
MODE
0
9
10+
10の桁
TENS
0
9
10+
0
9
10+
