JT-UM25C
USB-Messgerät
1. GENERAL INFORMATION
Dear customer,
Thank you for purchasing our product. In the following are information
which you should note before commissioning. Whenever you have
unfore seeable problems do not hesitate to contact us.
Today, USB connections are not only found at PCs, but also at power
banks, in cars or in trains. But not all connections are of best quality and
deliver even currents and voltages.

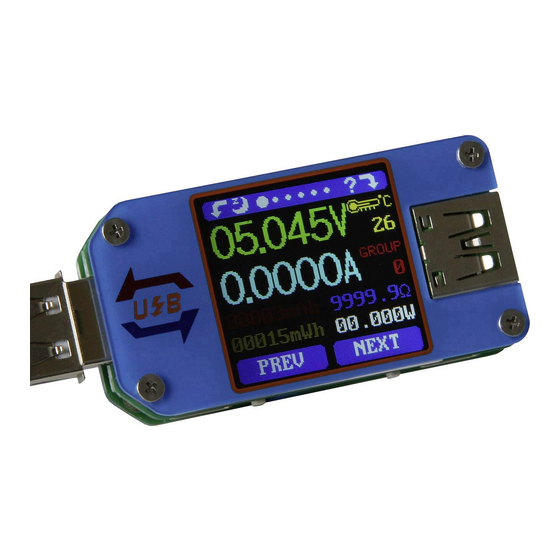

With the JT-UM25C, you always have all values in view. The meter supports
additional functions such as Quickcharge 2.0 and 3.0, as well as Apple 2.4
A, 2.1 A, 1 A, 0.5 A and Android DCP, and also offers convenient evaluation
via a wireless interface. With a measuring range of up to 24 V and 5 A, the
JT-UM25C is suitable for practically all applications. The integrated 1.44"
LCD display can be regulated in five brightness levels and provides always
an overview of all measured values.
Advertisement
Table of Contents
Related Manuals for Joy-it JT-UM25C
Summary of Contents for Joy-it JT-UM25C
- Page 1 But not all connections are of best quality and deliver even currents and voltages. With the JT-UM25C, you always have all values in view. The meter supports additional functions such as Quickcharge 2.0 and 3.0, as well as Apple 2.4 A, 2.1 A, 1 A, 0.5 A and Android DCP, and also offers convenient evaluation...
-
Page 2: Device Overview
2. DEVICE OVERVIEW Voltage measuring range 4 - 24 V Current measuring range 0 - 5 A Update rate 2 Hz Measurement accuracy 0,001 V / 0,0001 A Temperature range -10 - 100 °C Display size 1,44“ Supported QC2.0, QC3.0, QuickCharge Apple 2.4 A / 2.1 A / 1 A / 0.5 A, modes... - Page 3 3. FUNCTION MENU AND NAVIGATION General use QuickCharge Recording of charging Measurement result detection process main page Cable impedance Measurement graph System settings to switch between the separate menu pages. Hold to switch to the next data group. Hold to reset the current data group.
- Page 4 Press to turn off Hold to open the the display help menu Press to rotate the display Hold to rotate the clockwise display counterclockwise Press for the Press for the next previous page page Main menu (measurement results) Voltage Temperature Data group Current Equivalent resistance...
- Page 5 QuickCharge detection Voltage of Mode indicator D+ (DP) Voltage of D- (DM) The meter automatically recognizes devices with QuickCharge support. The following QuickCharge modes are currently supported: QC2.0. QC3.0, Apple 2.4 A / 2.1 A / 1 A / 0.5 A, Android DCP, Samsung Recording of charging process Accumulated electrical loading...
-
Page 6: Cable Impedance
Cable impedance UM25C directly at the power supply system: Voltage and current values are displayed UM25C via data connection: Resistance of the data Voltage and current values are connection cable displayed Measurement procedure: First, connect the measuring device directly to the source and set the corresponding current load (recommended value: 1 A). -
Page 7: System Settings
This menu displays the voltage measurement over time in the range of 4 - 24 V, as well as the current measurement in the range of 0 - 5 A and automatically adjusts the displayed range in real time to account the voltage and current fluctuations. - Page 8 The screenshots shown here are from Windows, trademarks like Bluetooth or Windows belong to their respective owners. In order to be able to connect the installed software to the measuring instrument, it is necessary to know which port is used, to connect the instrument to your computer.
- Page 9 2. Usage of the software Now, open the UM25C PC software V1.3, which you have already installed on your computer. First, set the appropriate COM port to which the measuring device is connected to your computer and start the connection with the Connect button.
- Page 10 Basic functions (previous page, next page, rotate screen) Data groups (direct selection of the data groups) Main measuring interface Data recording interface QuickCharge interface Temperature overview Screen brightness, Time for automatical image shut down Voltage-current diagram With a right click within the voltage-current diagram, further options are available.
-
Page 11: Android App
5. ANDROID APP here First download the app installation file on your Android device and install the application. Attention! The application can only be used with Android 5.0 or higher. Activate BT with the BT button on the meter, then establish the connection to the meter using the BT settings on your device. -
Page 12: Other Information
Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germany Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by e-mail at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
