Lorex LW2201 Series Getting Started Manual

ULTRA DIGITAL WIRELESS, QUAD
SURVEILLANCE SYSTEM
LW2201 SERIES - QUICk START GUIDE
Getting Started
*

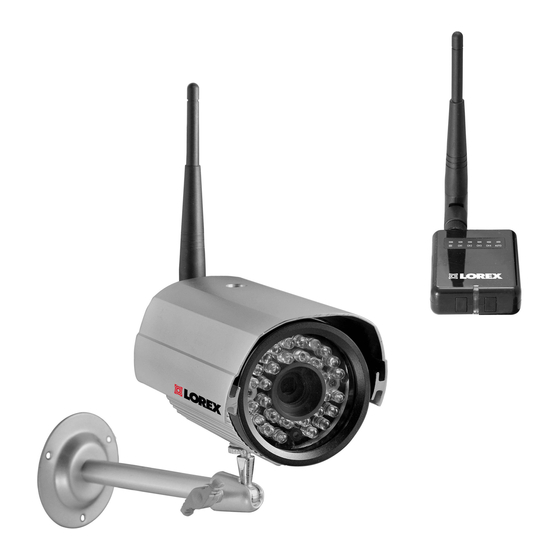

The Digital Wireless Surveillance
System comes with the following
monitoring components:
• Digital Wireless Color Cameras
with Sunshade*
• Camera* Stands
• Wireless Receiver
• Wireless Antenna's for cameras*
and receiver
• Power Adaptors for cameras*
and receiver
• RCA/BNC Adaptor
• Mounting Hardware
• Double Sided Tape for Receiver
• Instruction Manual kits
* Number of cameras may vary by
model. Check your package for
specific content information.
NOTE: Before you install a camera, carefully
plan where and how it will be positioned, and
where you will route the cable that connects
the camera to the power adaptor. Before
starting permanent installation, verify its
performance by observing the image on
a monitor when the camera is positioned
where it will be permanently installed.
www.lorexcctv.com
NOTE: AVOID INSTALLING IN A LOCATION
WHICH REQUIRES THE WIRELESS SIGNAL
TO PASS THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS WILL
REDUCE THE TRANSMISSION RANGE.

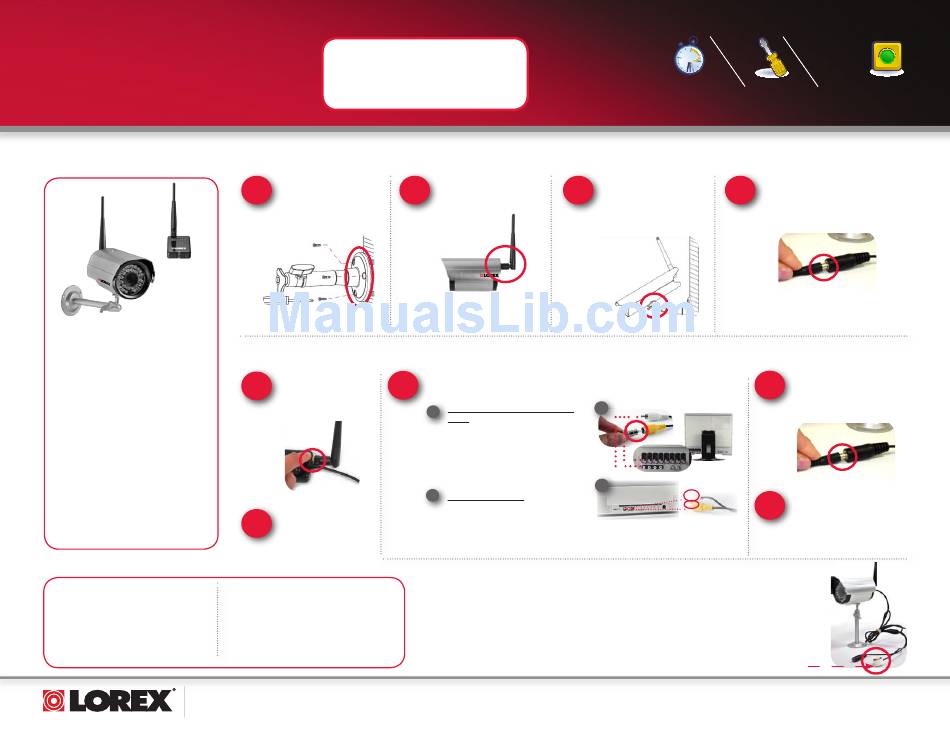

A. Connect the Camera
1 Mount camera stand to
the wall
B.
Connect the Receiver to an Observation System / DVR for recording or TV for large screen viewing**
Attach the included
3
1
Wireless Antenna
to the receiver by
screwing it on.
OPTIONAL
2
Take the double
sided tape supplied
to securely attach
the receiver to a flat
surface.
NOTE: Wireless cameras require a power
source to operate.
NOTE: When adding cameras that were not
included in the original box, you will need to
pair up the camera with the receiver. Please
refer to the Camera Pairing Section of the
User Manual.
2
Connect the Wireless 3
Antenna to the camera.
View your Camera on any Observation Monitor with
BNC inputs or TV with RCA inputs**.
Observation Monitor or DVR with
1
BNC:
Attach included RCA/BNC adaptor to
RCA cable and plug into Observation
Monitor or DVR. Connect the Audio
end of the RCA cable to the Audio
input of the Observation Monitor or
DVR.
2
TV with RCA Inputs:
Connect the RCA Video and Audio
ends of the RCA Audio/Video cable
to the Video and Audio inputs on
your TV.
C. Adding Additional Cameras
OPTIONAL
The System comes with a camera that has already been paired. The Pairing Function assigns each camera
to a different channel on the Wireless Receiver (up to 4 Cameras), and is necessary for configuring additional
cameras. By default, the camera included with the system appears on channels 1 on the wireless receiver.
Please refer to the included Owner's Manual for detailed steps.
under 15 minutes
Hand Tools
Time Tools
Under 15 Minutes*
* Installation time may vary Hand Tools
based on application and
camera location
Skill Level
easy
Secure Camera to the 4 Connect one end of the camera
Stand. Power Adaptor to the camera
and the other end to an
electrical outlet.
Connect power adaptor to local
120V AC power outlet
4
1
2
5
** Requires viewing/recording device with
RCA Video or BNC Video input. Viewing/
Recording device sold separately.
Pairing Button
LW2201 Series Quick Start Guide_R1
under 30 minutes under 60 minutes over 60 minutes
Skill Level
Hardware
Hi Speed
Skills - Easy
Router
easy Intermed
Plug & Play connections,
On screen set up
Intermediate advanced
Connect one end of the
Receiver Power Adaptor to
the receiver and the other
end to an electrical outlet.
Press the "Pair" button to
scroll through the different
camera views.
Page 1
