NLFS-L-B User's Manual

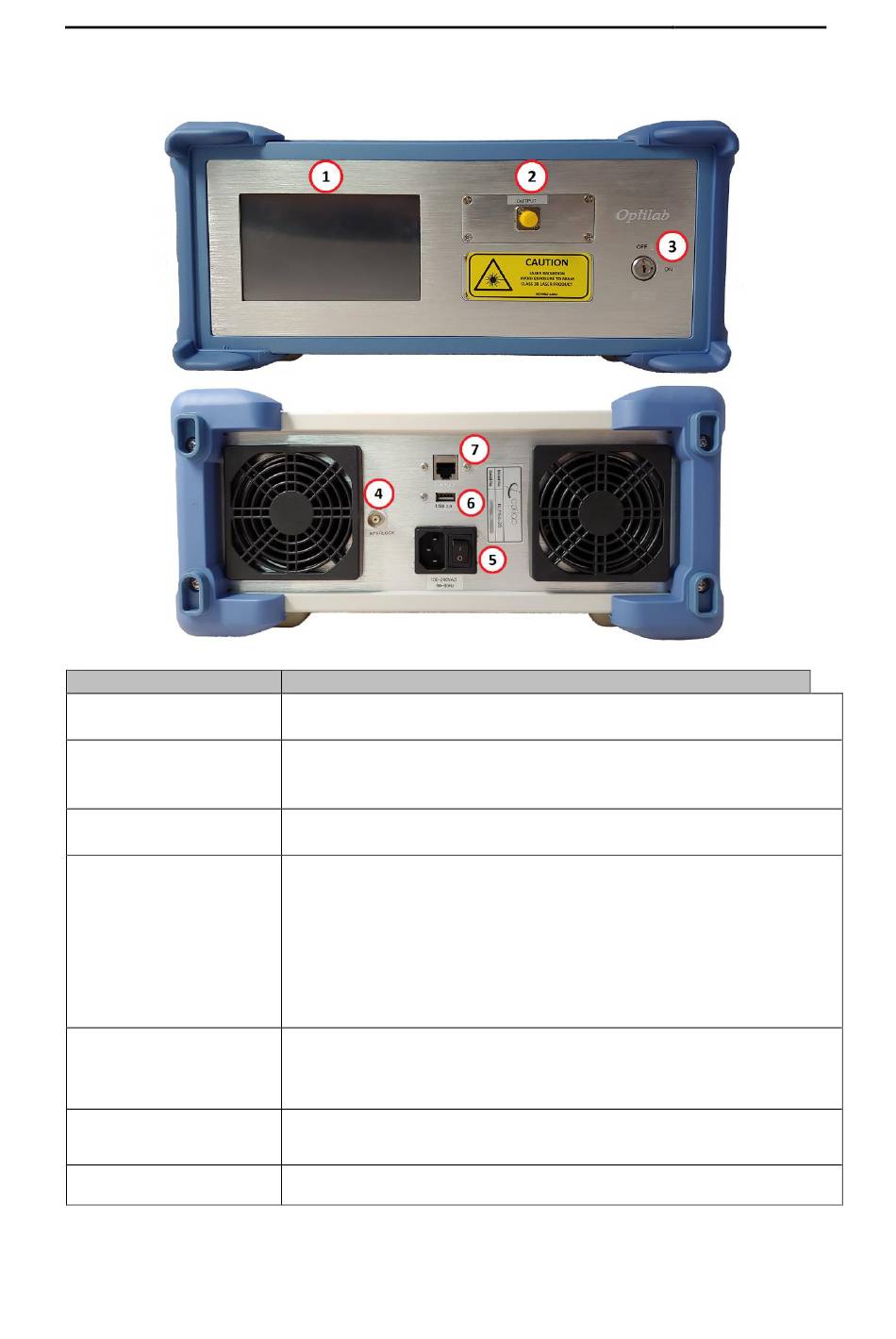

2.3 Panel Control Interface
Feature
1) Touch LCD
Screen
2) Optical OUT
3) Key Switch
4) Interlock
5) AC Power Socket
and Switch
6) USB
7) Ethernet port
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: 1-602-343-1496, Fax: (602) 343-1489, Email: sales@oequest.com
This LCD display and control the system setting and status.
Refer to Sec. 2.5 for operation instruction.
Optical output port. The output pigtail uses a FC/APC
connector with endcap fiber. Mate this connector to a FC/APC
fiber connector.
Enable and disable the optical power.
This BNC female connector is a safety interlock. It must be
shorted for the pump lasers to enable. Use the provided
accessory to short this port or connect it to a compatible
interlock device. If the interlock is open during normal
operation, the pump lasers will be turned off. To re-enable the
pump laser output, turn the key switch in the front panel to
"OFF" position first and start over.
This receptacle accepts the electrical power input for the 100
to 240 V, 50 / 60 Hz AC power; the switch enables / disables
the AC electrical power to the rackmount unit.
This USB port provides remote control feature. Refer to Sec.
2.6 for communication instruction.
Not used on this model.
Function
Page 3 of 13
