Vex Robotics Clawbot Build Instructions page 2

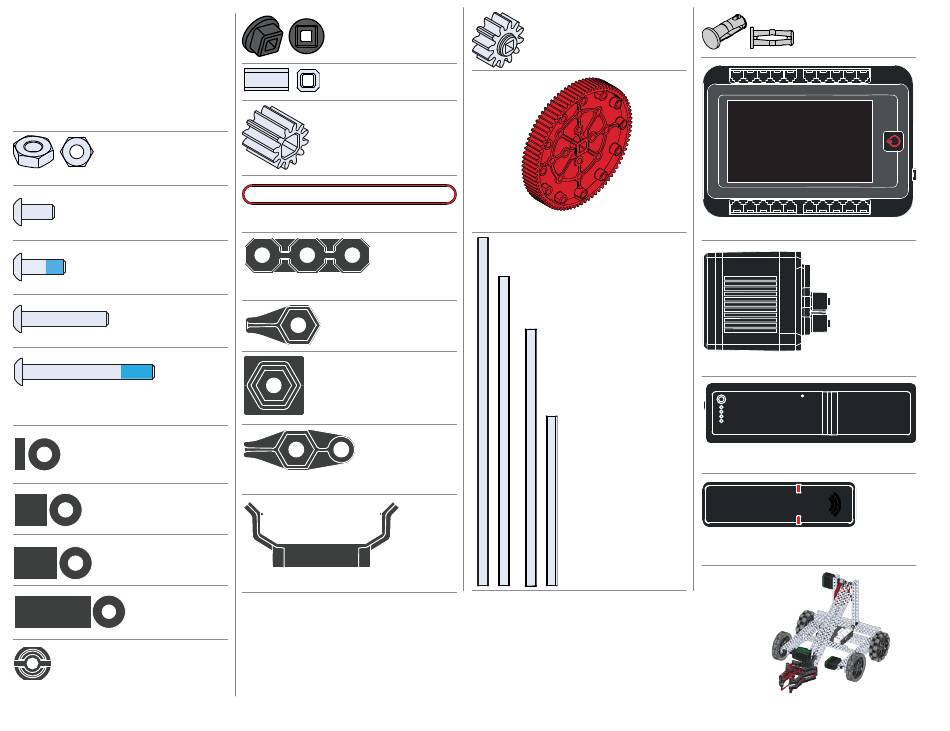

Parts List
All V5 Control System, gears, wheels,
wires, and structure are not to scale
All other parts listed are 1:1 scale.
Hacksaw is required, ask a parent/
mentor for help.
30x
8-32 Nut
276-1028-001
30x
8-32 x 0.375 in
276-4991-001
4x
8-32 x 0.5 in
Locking
276-5007-001
2x
8-32 x 1 in
276-4996-001
6x
8-32 x 1.5 in Locking
276-6009-007
8x
0.125 in
276-5912-001
4x
0.375 in
276-5914-001
3x
0.5 in
276-5915-001
2x
0.875 in
276-5918-001
23x
228-2500-143
10x
276-2250-005
1x
276-2250-007
1x
12T Pinion
276-2250-008
2x
228-4133-474
5x
276-1209-001
5x
276-6009-004
7x
276-6009-005
15x
276-6009-003
2x
276-6020-001
For build instructions using the Cortex System Bundle
www.vexrobotics.com/v5/downloads/build-instructions
1x
12T
276-6010-011
1x
84T
276-3438-331
3x
228-2500-124
1x
228-2500-123
2x
228-2500-122
3x
228-2500-120
Please visit:
6x
228-3943-086
1x
276-4810
4x
276-4840
1x
276-4811
1x
276-4831
