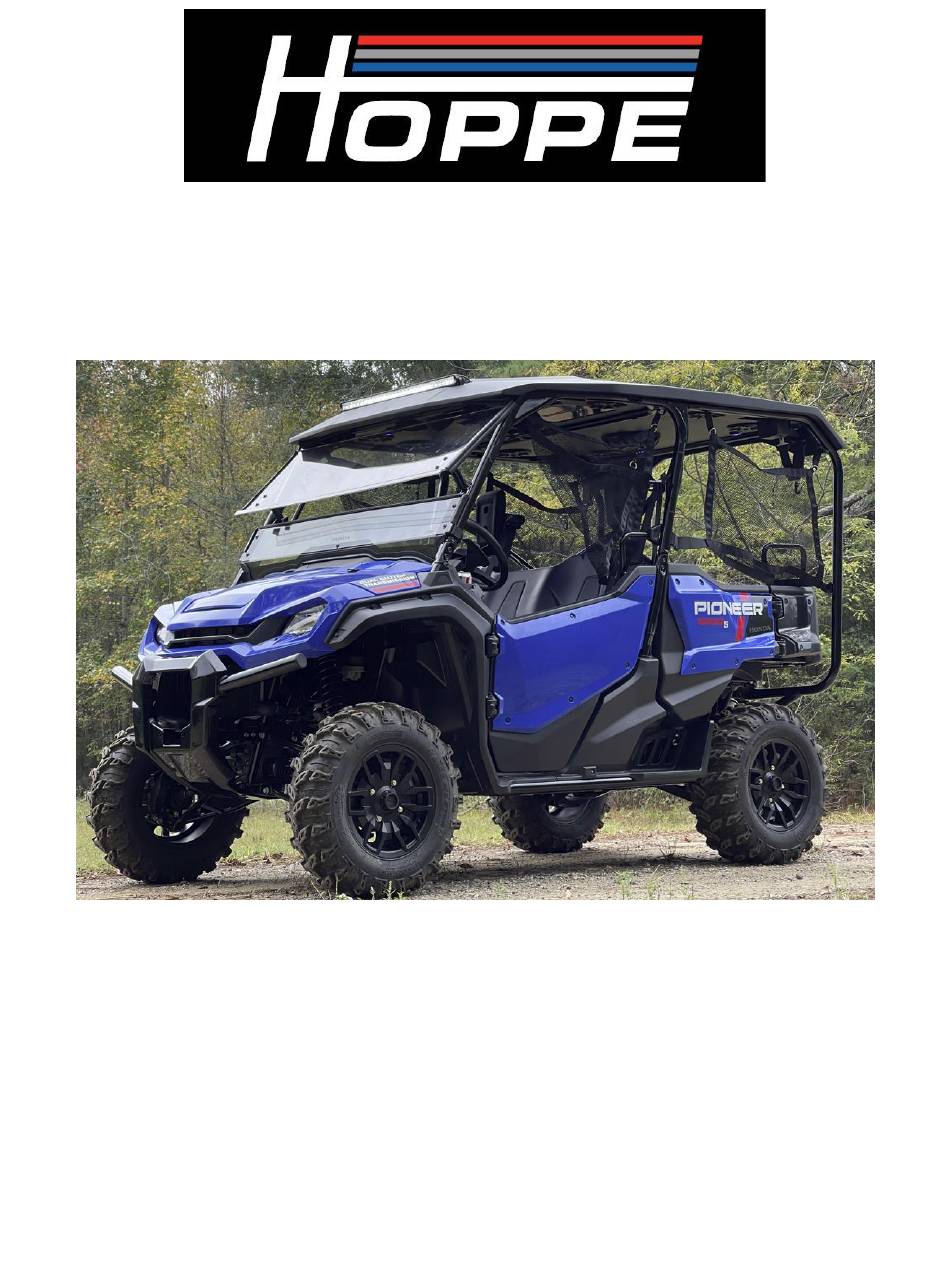

INSTALLATION INSTRUCTIONS / OWNER'S MANUAL:
AUDIO SHADE
OFF-ROAD TOP FOR HONDA PIONEER 1000-5
www.hoppeindustries.com
22667 FM 15 Troup, TX 75789
(262) 552-2770

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUDIO SHADE and is the answer not in the manual?

Questions and answers

Related Manuals for Hoppe AUDIO SHADE

Summary of Contents for Hoppe AUDIO SHADE

  • Page 1 INSTALLATION INSTRUCTIONS / OWNER’S MANUAL: AUDIO SHADE OFF-ROAD TOP FOR HONDA PIONEER 1000-5 www.hoppeindustries.com 22667 FM 15 Troup, TX 75789 (262) 552-2770...
  • Page 2 Thank you for choosing the Hoppe Audio Shade off-road top. We hope you enjoy the off-road top, and we ask that you follow these instructions very closely. Doing so will save you time and ensure that your experience with the new Audio Shade is a positive one.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 – Tools Required .................... 4 SECTION 2 – About your Audio Shade Top ..............4 2.1 Applicable Year Models: ..................4 2.2 Audio Equipment Details: ..................4 2.3 Warranty: ........................5 2.4 Care and Maintenance: ..................... 5 2.5 Warnings: ........................

  • Page 4: Section 1 - Tools Required

    RTV silicone. SECTION 2 – About your Audio Shade Top 2.1 Applicable Year Models: This Audio Shade off-road top is designed to fit Honda Pioneer 1000-5 models.  2016-2022 Pioneer 1000-5 (all trim levels) 2.2 Audio Equipment Details:...

  • Page 5: Warranty

    2.3 Warranty: Your Audio Shade comes equipped with a 1 year limited warranty covering the lights, the stereo equipment, and the fiberglass top. The date of warranty coverage will be determined by the registration date of the warranty card or online warranty registration.

  • Page 6: Warnings

    Do not listen to your stereo at an uncomfortable volume for extended periods of time. Potential hearing loss may result. The driving lights provided with your Audio Shade are blinding to oncoming drivers. These are made for off road use only, and should be turned off when another vehicle is approaching on the trail.

  • Page 7: Section 3 - Pre-Installation Inspection

    SECTION 3 – Pre-Installation Inspection Included in your off-road top are the following components:  Pre-assembled Audio Shade off-road top. (All speakers and electronics come preinstalled with interior wire harness.)  Chassis wire harness.  Rear light bar extension harness.

  • Page 8: Section 4 - Installation

    SECTION 4 – Installation Note: The factory roof must be removed prior to performing this installation. 1. Remove the cage clamps and 3/8”-16 bolts and washers that come pre-installed on the top. Save the hardware for installation. See Figure 3 and Figure 4. Figure 3: Remove the 6 clamps from the top.
  • Page 9 3/8” -16 BOLT AND WASHER CAGE CLAMP Figure 4: Close up of cage clamp hardware. 2. Spread the clamps by hand and slide them over the cage tubing. Place them on the cage in the approximate locations shown in Figure 5. Note the orientation of the clamp tab.
  • Page 10 FRONT Figure 5: Approximate clamp locations cage shown. 3. Using a few assistants, set the Audio Shade off-road top on the cage. The top is contoured such that the cage fits inside the grooves on the top. Note: The top weighs up to 150 lbs.
  • Page 11 FRONT Figure 6: Install the top on the cage. 4. Slide the clamps into position so they line up with the threaded holes in the top. For the two rear clamps and two front clamps, install the 3/8-16 x 1” bolts with washers through both clamp tabs and into the threaded hole in the top.
  • Page 12 Figure 7: Remove the radiator hood access panel. 6. Remove the front seat by releasing the center latch, pulling up around the front edge to release the detents, and unhooking the back edge under the back rests. See Figure 8. Revision - 12 of 22...
  • Page 13 DETENT DETENT CENTER LATCH Figure 8: Remove the front seat. 7. Remove the plastic tub from under the driver’s side seat. The tub is held in place with 4 plastic rivets. Pry the raised center of the plastic rivet out first, then pry the outside of the rivet.
  • Page 14 8. Remove the center under seat cover. There are no fasteners holding it in place. It just lifts off. 9. Remove the access panel located on the bottom of the firewall between the driver and passenger foot wells. There are two 5 mm allen head bolts you must unscrew. See Figure 10.
  • Page 15 WIRE ROUTING PATH THROUGH TRIM HERE Figure 11: Route the battery cable wiring. 11. Pull the battery connector / relay end of the harness through the under seat divider into the center under seat area. See Figure 12. Revision - 15 of 22...
  • Page 16 WIRE ROUTING PATH Figure 12: Route the harness through the divider. 12. Once under the center seat, feed the harness under the center floor board area up to the firewall access panel. Follow the path of the coolant pipes. 13. Reach through the wheel well and feed the harness through the rubber firewall flap up to the under hood battery compartment.
  • Page 17 RUBBER FIREWALL FLAP Figure 13: Feed the harness up to the under hood area. 14. Connect the red power wire to the positive terminal of the battery. Connect the black ground wire to the negative terminal of the battery. Use the supplied M6 x 20mm bolts and washers in place of the factory hardware.
  • Page 18 GROUND WIRE TO – TERMINAL + POWER WIRE TO + TERMINAL Figure 14: Attach the main power / ground wire. 15. Run the pink ignition wire, with the two attached connectors, through the hole in the rubber protector (with the factory wire harness). The connectors are accessible under the rubber protector by lifting the left rear corner of the rubber protector.
  • Page 19 RUBBER PROTECTOR IGNITION WIRE AND CONNECTORS Figure 15: Ignition wire and connector routing. UNHOOK AT THE CORNER Figure 16: Rubber protector access location. Revision - 19 of 22...
  • Page 20 LIGHTER Figure 17: Connection location for chassis harness connectors. 17. Connect the Audio Shade roof to the chassis wire harness. Align the connector terminals and rotate the connector housing ¼ turn to lock in place. See Figure 17. Revision -...
  • Page 21  To control the interior light color or make them dance to the music, download the Bluetooth app to your iOS or Android device. The app information is included with your Audio Shade and is located in the zipper pocket.
  • Page 22 To learn about the more advance features and operation of your stereo, visit the Kicker website links found in SECTION 2 – About your Audio Shade Top of this document. Thank you for choosing Hoppe Audio Shade off-road top for your Honda Pioneer 1000-5 UTV.
