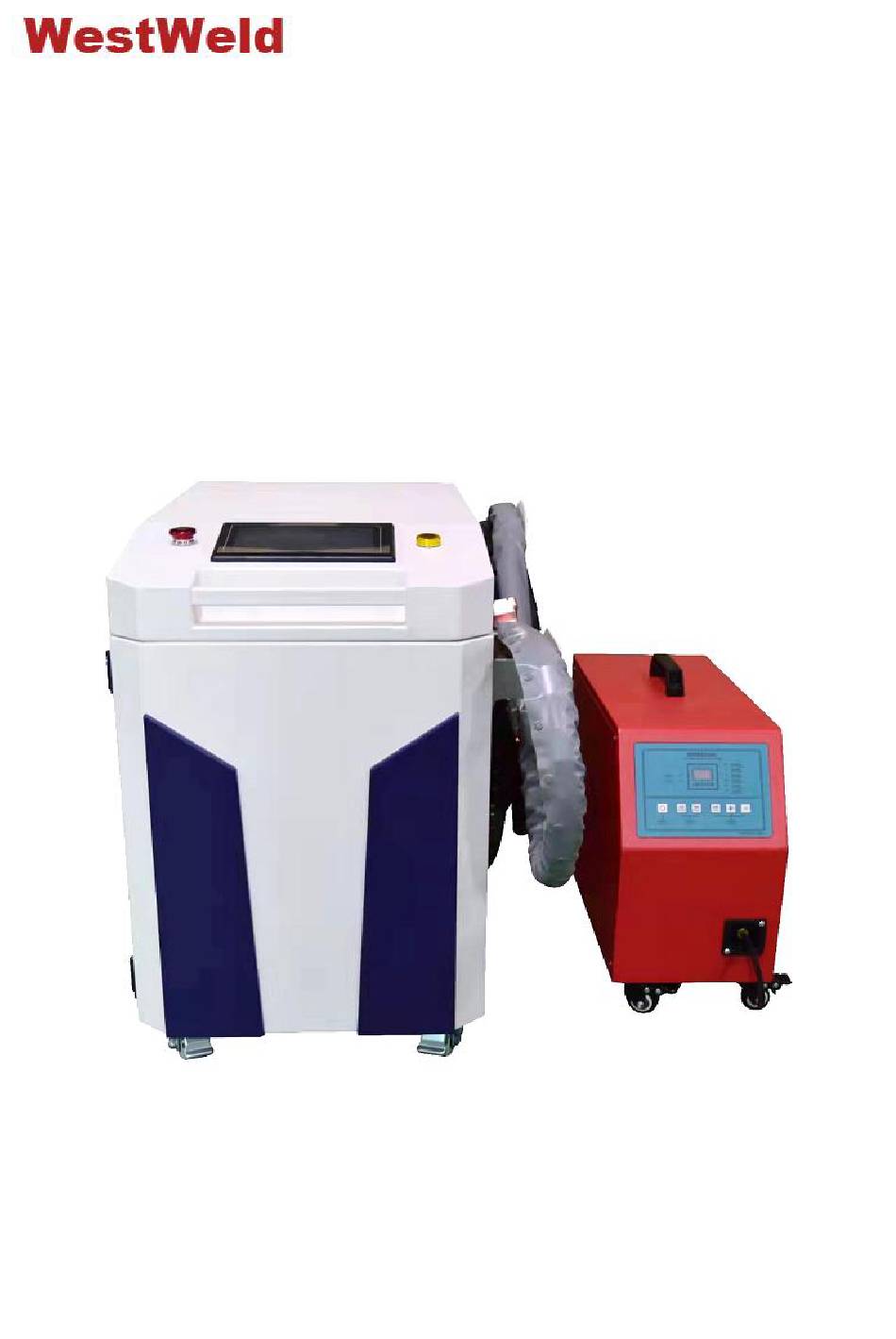

- Page 1 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China 1kW, 1.5kW, 2kW, 3kW Handheld Laser Welding Machine User Manual...
-
Page 2: Security Information
Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China Security Information A. Safety signs May cause serious personal injury or even endanger life. May cause general personal injury or damage to the product or equipment. B. Laser safety level According to the European standard EN 60825-1, clause 9, the equipment internal lasers belong to class 4 lasers. -
Page 3: Electrical Safety
This user manual is not a quality guarantee. Correction of printed errors, modifications to the information, and improvements to the product shall be explained by WestWeld at any time without prior notice. The corrections will be included in the reissued user manual. - Page 4 The fiber laser hand-held welding machine produced by WestWeld is a new generation of laser welding. It is easy to install and simple to operate. It can be widely used in kitchen utensils, door...
-
Page 5: Technical Parameters
(2) Products implementation standards WestWeld has passed the ISO9001 international quality management system certification, and has formed a quality assurance system for the design, production and service of laser equipment. WestWeld has formulated detailed standards for the working environment and working conditions,... - Page 6 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China The Wobble parameter Frequency:0-300Hz, spot diameter:0.5-5mm Fiber interface Protective lens 18*2mm Shielding gas Argon, Nitrogen, Air Maximum gas pressure 5bar Focal distance(mm) 120/150mm Overall size 850*450*630mm 700*960*960mm (length*width*height )
- Page 7 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China Feeding Wobble Laser Weld wire Thickness Welding Material speed Width power diameter Protective gas (mm) penetration (mm/s) (mm) (mm) ER304 1.0 ER304 1.2 100% ER304 1.2 100% 1000 ER304 1.2...
- Page 8 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China 2000 ER 1.6 2600 ER 1.6 100% 3000 ER 1.6 100% AL 1.0 AL 1.2 100% 1500 AL 1.2 100% Aluminum Nitrogen 1800 AL 1.2 100% 2200 AL 1.6...
- Page 9 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China Figure 1 Figure 2 B. Wire feed roll installation 1. There are 4 wire wheels (0.8/1.0/1.2/1.6mm), two sides are different models and different core diameter. Please install same diameter wheels. If use 1.2mm welding wire, please install the wire wheel mark 1.2mm is outside (Figure 2)
- Page 10 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China Figure 5 Figure 6 D. Signal and power supply interface. 1. At the behind of the wire feeder, there are two connecters, The 2-pins are wire feeder signal connected to the wire feeder interface of the cabinet. This signal is a short signal, This wire is often closed and not 24V input.
-
Page 11: Operation Steps
Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China 3.2 Operation steps Figure 1 Figure 2 Step 1: Turn on the main power switch (Figure 1) Check the emergency stop button on the front panel (Figure 2) Add water (distilled or pure water) to the chiller (When the temperature is lower than 4℃, special laser antifreeze is required) -
Page 12: Parameter Setting
Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China enable switch on the touch screen, press the power off button on the front panel. Close the power switch on the back of the machine, put the welding head back to the host placement. - Page 13 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China Figure 7 4. Positive number means to the right, each adjustment 0.5mm, after the parameters are adjusted, click the "Save" button to observe the change of the position of the red light.
- Page 14 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China 3.4 Maintenance instructions of welding machine （1）Cracks appear during the welding of the laser welding machine 1）The flow of protective gas is too large, which can reduce the flow of protective gas to solve.
- Page 15 Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China The process characteristics of laser welding need clean optical component, we need regular maintenance of the lens every day, if the lens inside is burn, please replace it. 1）Lens cleaning technology is extremely important, Improper cleaning will lead to lens performance decline.
-
Page 16: Service Commitment
Westweld LTD Office: No.51, Xuefu Avenue, Nanan, Chongqing 400074 , China b）A ventilation distance of about 20cm shall be left before and after the equipment. Insufficient ventilation distance may cause internal laser failure to function! c）The normal operating temperature range of this welding machine is 0~40℃, beyond this operating temperature range may cause the internal laser system to alarm without light, which is a protective behavior and can effectively protect the long-term use reliability of the equipment. - Page 17 All repair and replacement products must be placed in the original package provided, otherwise WestWeld will be entitled to repair any product damage caused. When you receive the WestWeld product, please check whether the product is intact and the accessories are complete. If there is any abnormal situation, please contact the carrier and...
-
Page 18: Contact Information
All technical parameters shall be subject to the contract terms. The above warranty and service terms of WestWeld for the products are for user reference only, and the formal service and warranty content shall be subject to the treaty in the contract.
