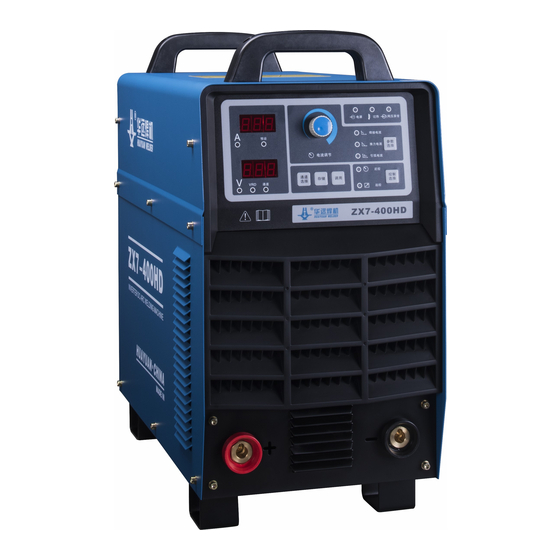

Westweld ZX7-400HD Manual Instruction

Westweld ZX7-400HD Manual Instruction

Arc welding machine

Advertisement

ZX7-400/500/630HD
ARC WELDING MACHINE
MANUAL
INSTRUCTION
(PLEASE READ CAREFELLY BEFORE OPERATING)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX7-400HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Westweld ZX7-400HD

  • Page 1 ZX7-400/500/630HD ARC WELDING MACHINE MANUAL INSTRUCTION (PLEASE READ CAREFELLY BEFORE OPERATING)
  • Page 2 Safety Depends on You Huayuan arc welding and cutting equipment is designed and built with safety in mind. However, your overall safety can be increased by proper installation ... and thoughtful operation on your part. DO NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL AND THE SAFETY PRECAUTIONS CONTAINED THROUGHOUT.
  • Page 3 C a u t i on s Arc and arc rays may harm health. Arc welding can be hazardous. All performing welding workers ought to have health qualification that provided by authority organization. Protect yourself and others from possible serious injury or death. Keep children away. Pacemaker wearers should consult with their doctor before operating.
  • Page 4 ● Spatter: Welding or cutting spatter can cause fire or explosion.  Remove fire hazards from the welding area.If this is not possible, cover them to prevent the welding sparks from starting a fire. Remember that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas.
  • Page 5 maintenances.  When engine is hot, it is forbidden to open the airtight cover of the radiator water tank to avoid hurt by the hot vapor. ● Electromagnetic: Welding current going though any area can generate electromagnetic, as well as the welding equipment itself.
  • Page 6: Table Of Contents

    CONTENT Main usage and application _________________________________________________________________ 1 Working condition and Environment __________________________________________________________ 1 Storage and working environment condition _______________________________________________ 1 Safety precautions _____________________________________________________________________ 2 Technical specification ______________________________________________________________________ 2 Main parameter: ______________________________________________________________________ 2 Welding electrode and related parameter setting ____________________________________________ 2 Hardware Overview ________________________________________________________________________ 2 General description ________________________________________________________________________ 2 Working principal ______________________________________________________________________ 2...
  • Page 7: Main Usage And Application

    1 Main usage and application This Series welding machine can be used for different types of electrode, especially suitable for hydrogen electrode to weld low carbon steel, mid-carbon steel and their alloy work-piece. It is mainly used in the industries like ship-building, boiler, power tower, petroleum and construction industries.
  • Page 8: Safety Precautions

    2.2.6 Remove fire hazards from welding area, welding sparks and hot materials from welding can easily go through small crack and cause fire. 3 Technical specification 3.1 Main parameter: Model ZX7-400HD ZX7-500HD ZX7-630HD Input Power 3~380/415V 50/60Hz Rated input capacity(KVA)...
  • Page 9: Welding Machine Output Cc/Cv Feature Diagram

    HF current through the rectify of the full bridge. While after the depression of the HF transformer, rectified by the FRD and filtered by the reactor, the HF current will change to the low-voltage but high welding current. The control circuit control the output current through the adjusting of the pulse width. The negative feedback signal, which is the real welding current get from the output current sensor, put into the special PWM circuit after compared with the current adjust signal, then output the driving pulse to control the IGBT, so that the output current will keep stable to get descending external characteristic.
  • Page 10: Installation And Adjustment

    CSA for input copper wire Breaker capacity Fuse protector CSA for ground lead (mm ) (A) ) Model cable(mm ZX7-400HD ≥4 ≥4 ZX7-500HD ≥6 ≥6 ZX7-630HD ≥6 ≥6 Warning: Completely read the operator's manual before installation, strictly follow the installation requirements.
  • Page 11: Operations

    8 Operations 8.1 8.1 Panel instruction Current adjust Indicator Current Disp Parameter selection Voltage Channel disp Local/Remot Channel e control choosing Selection Storage Fig3 ZX7-HD Series Inverter DC welding machine panel Power Switch Remote control and wireless management Positive pole system interface Fig4 Fear of machine...
  • Page 12: Maintenance

    follows:adjust the required welding parameter,press channels selection knob,the voltage LED display the present channel,if need to storage,press storage knob.If need to storage the parameter to other channels,continue to press selection channel till find the required channel,then press storage knob.It will return to the present adjustment parameter if without any operation within 5s.
  • Page 13: Packing List

    No OCV, there is abnormal noise FRD on the main circuit is damaged 1. Check and replace the FRD from the machine The OCV is OK, but sometimes the Lack-phase Check the input power arc will break Suddenly there is no welding 1.welding cable and work piece with poor 1.check the weld cable current during the welding process...
  • Page 15 The final explanation rights reserved to Westweld /Huayuan Company! If there is any changes in the user’s manual, forgive not to inform separately! Westweld Ltd 4-23-4, No.51, Xuefu Avenue, Nanan, Chongqing, China E-mail: info@westweld.com sales@westweld.com www.westweld.com...

This manual is also suitable for:

Zx7-500hdZx7-630hd
