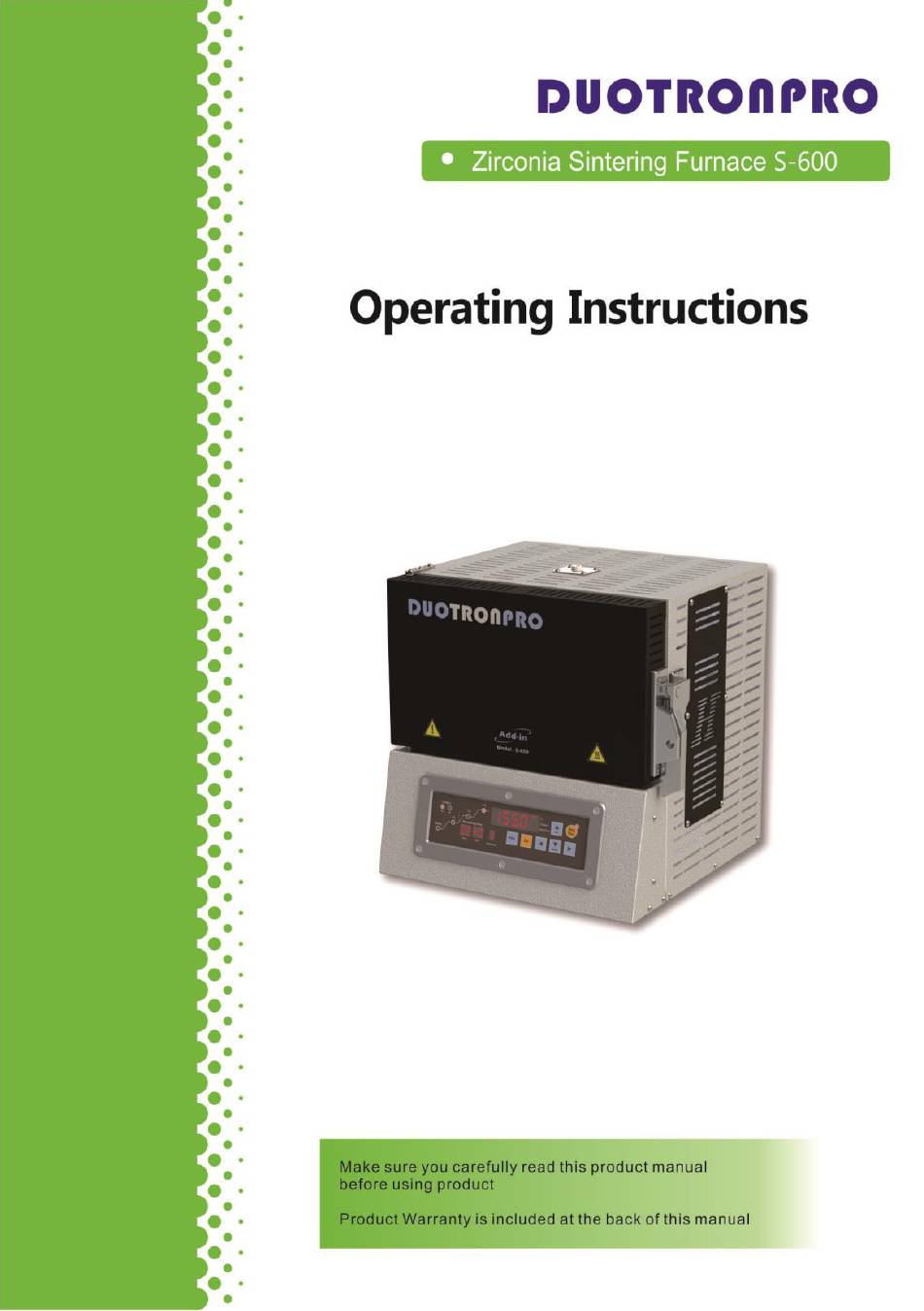

Duotronpro S-600 Operating Instructions Manual

Hide thumbs Also See for S-600:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-600 and is the answer not in the manual?

Questions and answers

Related Manuals for Duotronpro S-600

Summary of Contents for Duotronpro S-600

  • Page 2 - 1 -...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ................. 3 2. Product Information ..............7 3. Technical Data ................8 4. Install ................... 9 5. Appearance and Name ............. 10 6. Front Panel Information ............11 7. Program and Temperature Setting ......... 13 8.

  • Page 4: Introduction

    Also, S-600 has sturdily and gracefully designed and programmed as user friendly. This Operators Manual will explain the installation and operation of the oven as well as help you get the most out of your new S-600 Furnace. Please read carefully the instructions in this manual for the best user experience.
  • Page 5 Warning 1. Do not disassemble, repair or modify any part of the machine without prior approval from an authorized technician. It could be out of warrantee and could cause damage, electric shock or fire. 2. Ensure the oven is properly grounded to prohibit error or electrical hazard. 3.
  • Page 6 Caution 1. Keep away from Furnace during operation. While running, furnace generates high temperature. 2. Please handle the oven carefully to avoid damage. The furnace contains fragile parts. 3. Do not use in places with a lot of vibration. 4. Please read the manual and understand the instructions before using the oven. 5.
  • Page 7 19. Cleaning Mode: Regularly inspect inside of the furnace. If oxide films on the heating elements are damaged or zirconia materials are contaminated, use Cleaning Mode to clean and prevent contamination. <Caution. Too often use of Cleaning Mode (less than 1 month period) could damage on Muffle/heating elements.

  • Page 8: Product Information

    2. Product Information (1) Characteristics ► Easy to operate and full set of features ► Easy-to-use display provides all available information and setting control ► Store 100 different schedules ► Maximum ramp up rate 25 min (Under 1100 C) and 15 C/min (Above 1100 ℃/ ►...

  • Page 9: Technical Data

    3. Technical Data Temperature Sensor Sensor Type Thermocouple R-type Sensor Range 0~1760℃ Main Controller Voltage DC 12V Display LED Display I/O Controller Voltage DC 12V Output 1 Ch. : DC Fan General Information AC 230V, 50/60 Hz Voltage 30A / AC250V Fuse Max.

  • Page 10: Install

    4. Install (1) Connect AC Power This furnace requires AC230V and maximum current is 8A. This furnace should be connected directly to over 15A breaker in a panel board. (Do not use extension cords and connecting to other equipment. Insufficient capacity may cause a short circuit and fire.) (2) List of parts After open a box, ensure there are all parts.

  • Page 11: Appearance And Name

    5. Appearance and Name - 10 -...

  • Page 12: Front Panel Information

    6. Front Panel Information Display <Information in picture is only for examples> 1) Time and Mode display ① Displaying the time required for selected sintering schedule ② Changing schedule: Changing schedule with pressing PRG. button 2) Displaying current temperature. 3) Displaying current progress.
  • Page 13 (2) Function Buttons Buttons Description Start Program button Click Once : Selected Schedule Start During schedule is running, click this button will stop schedule Display LED Light Blinking : Stand-by Light On : Program (Schedule) is running Light Off : Program (Schedule) is stopped or off Program Button Change and Select programs with adjust arrow button Select and change next setting values at selected program...

  • Page 14: Program And Temperature Setting

    7. Program and Temperature Setting (1) Change Program Click  Use ( )  Select Schedule  (2) Run Selected Program (Schedule) Click (Before start, check LED light is blinking) Click will LED light on and program(Schedule) start. (3) Edit Program settings ①...
  • Page 15 (4) Program Setting Information Display  Remaining time displaying window Setting Display Description T1 Temp. T1 temp T1 Ramp Up Ramp up rate till T1 (℃/min) T1 Staying Staying time at T1 temp. (00.00 hour) T2 Temp. T2 temp. (0000  not use) T2 Ramp Up Ramp up rate till T2 (℃/min) (0000 ...

  • Page 16: Edit Default Setting

    8. Edit Default Setting (1) Enter Default Setting Click 6 times (2) Edit Setting Values ① (Allow to move next setting values ) ② )  Change setting values ③ : Save and Exit. (3) Setting Value Information Display  Remaining time displaying window Values Display Default...

  • Page 17: Run

    9. Run 1. Drying materials (About 30 min.) 2. Furnace Main S/W on 3. Open the door 4. Place restorations on the zirconia beads in Tray. Push handle counter clack wise to open door 5. Place Plate in the center of the chamber (marked area) 6.Place Tray in the chamber 7.
  • Page 18 8. Select sintering schedule. 9. Confirm temperature and adjust if it is necessary < Refer page 15 to set temperature> 10. Ready to sinter ->Start sintering 11. Finish sintering ” 12. Remove tray after finishing sintering <Caution> ① Do not place hot tray in front of the furnace. May cause controller damage. ②...

  • Page 19: Sintering Bridge Frameworks

    10. Sintering Bridge Frameworks - 18 -...

  • Page 20: Pre-Set Sintering Schedules

    11. Pre-Set 10 Sintering Schedules Schedule : 0 (Cleaning Mode) Max. temp : 1550℃ Total hours : 3hr 10min Schedule : 1 Schedule: 2 Max. temp : 1450℃ Max. temp : 1450℃ Total hours: 6hr 30min Total hours: 7hr 20min - 19 -...
  • Page 21 Schedule: 3 Schedule: 4 Max. temp : 1450℃ Max. temp : 1450℃ Total hours: 9hr 20min Total hours: 10hr 30min Schedule : 5 Schedule : 6 Max. temp : 1530℃ Max. temp : 1530℃ Total hours: 3hr 08min Total hours: 6hr 50min - 20 -...
  • Page 22 Schedule : 7 Schedule : 8 Max. temp : 1530℃ Max. temp : 1530℃ Total hours: 7hr 50min Total hours: 10hr 10min Schedule : 9 Max. temp : 1530℃ Total hours: 11hr ※ Prog. No. : 10~ Prog. No. : 99, User can modify schedules - 21 -...

  • Page 23: Trouble Shooting

    12. Trouble Shooting Possible error messages and trouble shooting Error Error description Trouble Shooting Furnace door is opened or Door Switch door Close the door and check the switch error ProG Program setting value error Check setting values. Err01 Disconnected the sensor Replace the sensor Err02 Board or control IC is damaged...

  • Page 24: Warranty

    13. Warranty Within Condition warranty After warranty period period Within 10 days of purchase, require major repair by defect Exchange or even though used in normal condition refund After 1 month of purchase, require major repair by defect Exchange even though used in normal condition Manufacturer could not repair for a month from customer Exchange + Charge for Exchange...
  • Page 25 Memo - 24 -...
  • Page 26 Memo - 25 -...
  • Page 27 4. Caution at use Warranty Info ■ Avoid places of sudden and/or drastic temperature changes 1. Warranty Length ■ Do not use flammable material for cleaning ■ Do not install near high voltage usage or voltage Warranty is good for 1 year after purchase for malfunctions due to fluctuations manufacturer defects ■...
  • Page 28 ww.addinco.com 290, Isanpo-gil, Ilsanseo-gu, Goyang-si, Gyeonggi-do, Korea (10202) Tel : 070-4236-0072 , Fax : 031-848-2072 e-mail : sales@addinco.com - 27 -...
