Duotronpro S-6100 Operating Instructions Manual

Zirconia sintering furnace
Hide thumbs Also See for S-6100:
Table of Contents

Advertisement

Quick Links

Download this manual
www.stomshop.pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-6100 and is the answer not in the manual?

Questions and answers

Related Manuals for Duotronpro S-6100

Summary of Contents for Duotronpro S-6100

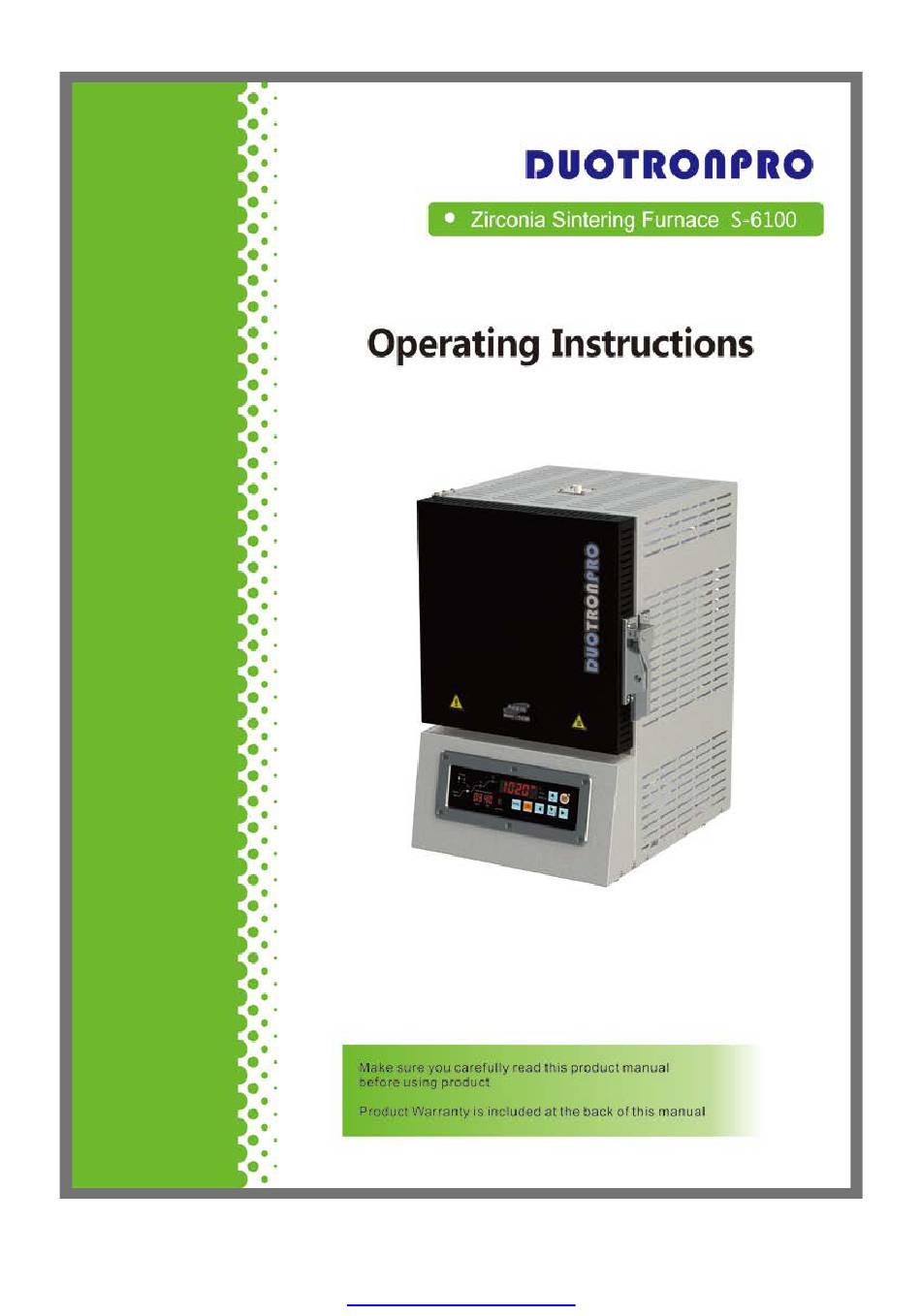

  • Page 1 www.stomshop.pro...

  • Page 2: Table Of Contents

    Index 1. Introduction ..................... 3 2. Product Information ..................7 3. Technical Data ....................8 4. Install ........................9 5. Appearance and Name ................10 6. Front Panel Information ................. 11 7. Changing Name ..................14 8. Temperature Setting ................15 9.

  • Page 3: Introduction

    Also, S-6100 Furnace has sturdily and gracefully designed and programmed as user friendly. This Operators Manual will explain the installation and operation of the oven as well as help you get the most out of your new S-6100 Furnace. Please read carefully the instructions in this manual for the best user experience.
  • Page 4 Warning 1. Do not disassemble, repair or modify any part of the machine without prior approval from an authorized technician. It could be out of warrantee and could cause damage, electric shock or fire. 2. Ensure the oven is properly grounded to prohibit error or electrical hazard. 3.
  • Page 5 Caution 1 Keep away from Furnace during operation. While running, furnace generates high temperature. 2. Please handle the oven carefully to avoid damage. The furnace contain fragile parts. 3. Do not use in places with a lot of vibration. 4. Please read the manual and understand the instructions before using the oven. 5.
  • Page 6 13. Keep away flammable materials from Furnace. It may cause a fire. 14. If Furnace is not in use, turn off switch to power off. 15. If Furnace is not in use for long term, pull out power plug. 16. Changing insulation: Contact particulate from insulator with the eyes or skin may cause irritation.
  • Page 7 18. Do not start firing schedule without tray insulator. Starting schedule without tray insulator may cause fire or damaging in furnace. 19. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. - 6 - www.stomshop.pro...
  • Page 8 Symbol Description Symbol Description This product fulfills the requirements of Directive 2014/35/EU on Low Voltage directive Alternating current Caution, hot surface Caution, See Instructions for use On (Power) Off (Power) PROTECTIVE CONDUCTOR TERMINAL Electrical waste and electronics equipment - 7 - www.stomshop.pro...

  • Page 9: Product Information

    2. Product Information (1) Characteristics ►Easy to operate and full set of features ►Easy-to use display provides all available information and setting control. ►10 custom temperature settings ►Maximum ramp up rate 25℃/min (15 C/min over 900 ►Compact size ►Double stock Trays in sintering chamber (2) Main Functions ►User defined programs ►Progress indicates with LED lights...

  • Page 10: Technical Data

    3. Technical Data Temperature Sensor Sensor Type Thermocouple R-type Sensor Range 0~1760℃ Main Controller Voltage DC 12V Display LED Display I/O Controller Voltage DC 12V 1 Ch. : DC Fan Output General AC 230V, 50/60 Hz Voltage 30A / AC250V Fuse Max.
  • Page 11 Temp. range +2℃ ~ +35℃ Working humidity Less than 80% Working altitude Lower than 3800m Weigh 35kg - 10 - www.stomshop.pro...

  • Page 12: Install

    4. Install (1) Connect AC Power This product require AC 230V. Before connect power, ensure voltage. (2) List of parts After open a box, ensure there are every list of parts. Also, check any visual damage. If you find any damages or defects, contact seller. <...
  • Page 13 environment. Place a furnace at least 30 cm apart from the wall and 1.5 m away from the ceiling. If too close to wall or ceiling, may cause a fire and damage on product. Do not place flammable materials on the top of product. Before use, install a ventilation system above the product to remove harmful gas during sintering.

  • Page 14: Appearance And Name

    5. Appearance and Name - 13 - www.stomshop.pro...

  • Page 15: Front Panel Information

    6. Front Panel Information Display <Information in this picture is only examples> 1) Time and Mode display ① Displaying the time required for selected schedule ② Changing schedule: Changing schedule with pressing PRG. button 2) Current Temperature Display. 3) Display current progress. ①...

  • Page 16: Temperature Setting

    7.Run and Temperature Setting(3 Stages) 1. Run (Example: Schedule ) Use up/down arrow Blink Press button button select schedule (1~9) Ready to Start (LED light button Press blink) 2. Temperature Setting (3Stages) Press button LED light Blink up/down Displaying left/right arrow to change temperature T1 temperature blink...

  • Page 17: Setup

    Press LED light Blink button Use up/down and left/right Displaying Ramp up arrow to change ramp rate. rate to T2 and blink Input 0 will skip this step Press LED light Blink button up/down arrow Displaying hold time change time for staying at at temp.
  • Page 18 Press LED light on at On sign button Output On Temp. Use up/down and on/off arrow will display and blink to input Output On temp. Press button LED light on at Off sign Use up/down and on/off arrow Output Off Temp. to input Output Off temp.

  • Page 19: User Instruction

    8. User Instruction 1. Drying materials (About 30 min.) 2. Furnace Main S/W on 3. Open the door 4. Place restorations on the zirconia beads in Tray. Push handle counter clack wise to open door 5. Place Tray in the chamber 6.
  • Page 20 8. Select sintering schedule. 9. Confirm temperature and adjust if it is necessary 10. Ready to sinter ->Start sintering 11. Finish sintering ” 12. Remove tray after finishing sintering <Caution> ① Do not place hot tray in front of the furnace. May cause controller damage. ②...

  • Page 21: Sintering Bridge Frameworks

    9. Sintering Bridge Frameworks - 20 - www.stomshop.pro...
  • Page 22 10. Pre-set 10 Sintering Schedules Schedule : 0 Schedule : 1 Max. temp. : 1450℃ Max. temp. : 1450℃ Total hours : 3hr 29min Total hours : 6hr 38min Schedule : 2 Schedule : 3 Max. temp. : 1450℃ Max. temp. : 1450℃ Total hours : 7hr 33min Total hours : 8hr 55min - 21 -...
  • Page 23 Schedule : 4 Max. temp. : 1450℃ Total hours : 10hr 17min Schedule : 5 Schedule : 6 Max. temp. : 1530℃ Max. temp. : 1530℃ Total hours : 3hr 38min Total hours : 6hr 55min - 22 - www.stomshop.pro...
  • Page 24 Schedule : 7 Schedule : 8 Max. temp. : 1530℃ Max. temp. : 1530℃ Total hours : 7hr 58min Total hours : 9hr 32min Schedule : 9 Max. temp. : 1530℃ Total hours : 10hr 55min - 23 - www.stomshop.pro...

  • Page 25: Trouble Shooting

    11. Trouble Shooting Possible error messages and trouble shooting Error Error description Trouble shooting Close the door and check the door Door open or door switch error switch Err01 Disconnected the sensor Replace the sensor Err02 Board or control IC is damaged Inspection control PCB Err03 Heating elements damaged...

  • Page 26: Warranty

    12. Warranty Within Condition warranty After warranty period period Within 10 days of purchase, require major repair by Exchange or defect even though used in normal condition refund After 1 month of purchase, require major repair by Exchange defect even though used in normal condition Manufacturer could not repair for a month from Exchange + Charge for Exchange...
  • Page 27 MEMO - 26 - www.stomshop.pro...
  • Page 28 MEMO - 27 - www.stomshop.pro...
  • Page 29 MEMO - 28 - www.stomshop.pro...
  • Page 30 4. Caution at use Warranty Info ■ Avoid places of sudden and/or drastic temperature changes 1. Warranty Length ■ Do not use flammable material for cleaning ■ Do not install near high voltage usage or voltage Warranty is good for 1 year after purchase for malfunctions due to fluctuations manufacturer defects ■...
  • Page 31 www.addinco.com #321 YTC 847, Buheung-ro, Gwangjeok-myeon, Yangju-si, Gyeonggi-do, Korea (11416) - 30 - www.stomshop.pro...
