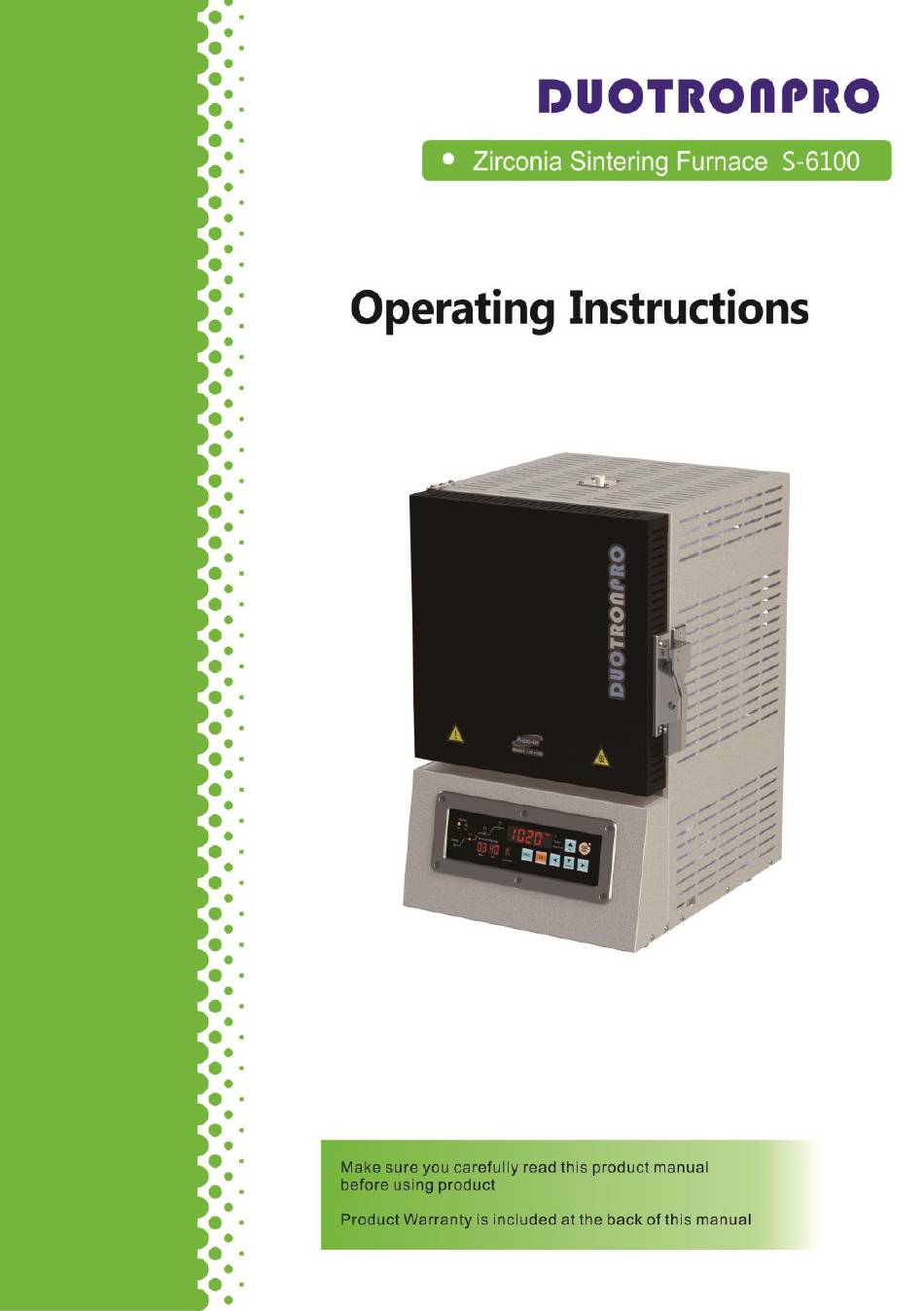

Duotronpro S-6100 Operating Instructions Manual

Hide thumbs Also See for S-6100:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-6100 and is the answer not in the manual?

Questions and answers

Related Manuals for Duotronpro S-6100

Summary of Contents for Duotronpro S-6100

  • Page 2 - 1 -...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ..................... 3 2. Product Information ..................7 3. Technical Data ....................8 4. Install ........................9 5. Appearance and Name ................10 6. Front Panel Information ................. 11 7. Program and Temperature Setting ..........13 8.

  • Page 4: Introduction

    Also, S-6100 has sturdily and gracefully designed and programmed as user friendly. This Operators Manual will explain the installation and operation of the oven as well as help you get the most out of your new S-6100 Furnace. Please read carefully the instructions in this manual for the best user experience.
  • Page 5 Warning 1. Do not disassemble, repair or modify any part of the machine without prior approval from an authorized technician. It could be out of warrantee and could cause damage, electric shock or fire. 2. Ensure the oven is properly grounded to prohibit error or electrical hazard. 3.
  • Page 6 Caution 1 Keep away from Furnace during operation. While running, furnace generates high temperature. 2. Please handle the oven carefully to avoid damage. The furnace contain fragile parts. 3. Do not use in places with a lot of vibration. 4. Please read the manual and understand the instructions before using the oven. 5.
  • Page 7 15. If Furnace is not in use for long term, pull out power plug. 16. Using Tray only from the manufacturer. If dimension of the tray is different, it could damage or break the Muffle. <Dimension of tray = lower than Ø95 ㎜ x 30 ㎜> ♣It is not responsibility of manufacturer or seller, if muffle broke or damaged by using wrong size of tray.

  • Page 8: Product Information

    2. Product Information (1) Characteristics ► Easy to operate and full set of features ► Easy-to-use display provides all available information and setting control ► Store 100 different schedules ► Maximum ramp up rate 25℃/min (Under 1100 oC) and 15oC/min (Above 1100 ►...

  • Page 9: Technical Data

    3. Technical Data Temperature Sensor Sensor Type Thermocouple R-type Sensor Range 0~1760℃ Main Controller Voltage DC 12V Display LED Display I/O Controller Voltage DC 12V Output 1 Ch. : DC Fan General Information Voltage AC 230V, 50/60 Hz Fuse 30A / AC250V Max.

  • Page 10: Install

    4. Install (1) Connect AC Power This furnace requires AC230V and maximum current is 10A. This furnace should be connected directly to over 15A breaker in a panel board. (Do not use extension cords and connecting to other equipment. Insufficient capacity may cause a short circuit and fire.) (2) List of parts After open a box, ensure there are all parts.

  • Page 11: Appearance And Name

    5. Appearance and Name List of parts 1. Furnace housing 2. Sintering Platform 3. Air Ventilation opening 5. Touch Screen Monitor 6. Control Housing 7. Sintering chamber 8. Oven Backing Plate 9. Insulation 10. Heating elements - 10 -...

  • Page 12: Front Panel Information

    6. Front Panel Information Display <Information in picture is only for examples> 1) Time and Mode display ① Displaying the time required for selected sintering schedule ② Changing schedule: Changing schedule with pressing PRG. button 2) Displaying current temperature. 3) Displaying current progress.
  • Page 13 (2) Function Buttons Buttons Description Start Program button Click Once : Selected Schedule Start During schedule is running, click this button will stop schedule Display LED Light Blinking : Stand-by Light On : Program (Schedule) is running Light Off : Program (Schedule) is stopped or off Program Button Change and Select programs with adjust arrow button Select and change next setting values at selected program...

  • Page 14: Program And Temperature Setting

    7. Program and Temperature Setting (1) Change Program Click  Use ( )  Select Schedule  (2) Run Selected Program (Schedule) Click (Before start, check LED light is blinking) Click will LED light on and program(Schedule) start. (3) Edit Program settings ①...
  • Page 15 (4) Program Setting Information Display  Remaining time displaying window Setting Display Description T1 Temp. T1 temp T1 Ramp Up Ramp up rate till T1 (℃/min) T1 Staying Staying time at T1 temp. (mm . ss ) T2 temp. (0000  not use) T2 Temp.

  • Page 16: Edit Default Setting

    8. Edit Default Setting (1) Enter Default Setting Click 6 times (2) Edit Setting Values ① (Allow to move next setting values ) ② )  Change setting values ③ : Save and Exit. (3) Setting Value Information Display  Remaining time displaying window Values Display Default...

  • Page 17: Run

    9. Run 1. Drying materials (About 30 min.) 2. Furnace Main S/W on 3. Open the door 4. Place restorations on the zirconia beads in Tray. Push handle counter clack wise to open door 5. Place Tray with Lid in the center of the chamber (marked area) 6.
  • Page 18 8. Select sintering schedule. 9. Confirm temperature and adjust if it is necessary < Refer page 15 to set temperature> 10. Ready to sinter ->Start sintering 11. Finish sintering ” 12. Remove tray after finishing sintering <Caution> ① Do not place hot tray in front of the furnace. May cause controller damage. ②...

  • Page 19: Sintering Bridge Frameworks

    10. Sintering Bridge Frameworks - 18 -...

  • Page 20: Pre-Set Sintering Schedules

    11. Pre-set 10 Sintering Schedules Schedule : 0 Schedule : 1 (Cleaning Mode) Max. temp. : 1450℃ Max. temp. : 1600℃ Total hours : 6hr 38min Total hours : 3hr 29min Schedule : 2 Schedule : 3 Max. temp. : 1450℃ Max.
  • Page 21 Schedule : 4 Max. temp. : 1450℃ Total hours : 10hr 17min Schedule : 5 Schedule : 6 Max. temp. : 1530℃ Max. temp. : 1530℃ Total hours : 3hr 38min Total hours : 6hr 55min - 20 -...
  • Page 22 Schedule : 7 Schedule : 8 Max. temp. : 1530℃ Max. temp. : 1530℃ Total hours : 7hr 58min Total hours : 9hr 32min Schedule : 9 Max. temp. : 1530℃ Total hours : 10hr 55min ※ Prog. No. : 10~ Prog. No. : 99, User can modify schedules - 21 -...

  • Page 23: Trouble Shooting

    12. Trouble Shooting Possible error messages and trouble shooting Error Error description Trouble shooting Close the door and check the door Door open or door switch error switch ProG Program setting value error Check setting values. Err01 Disconnected the sensor Replace the sensor Err02 Board or control IC is damaged...

  • Page 24: Warranty

    13. Warranty Within After warranty Condition warranty period period Within 10 days of purchase, require major repair by Exchange or defect even though used in normal condition refund After 1 month of purchase, require major repair by Exchange defect even though used in normal condition Manufacturer could not repair for a month from Exchange + Charge for Exchange...
  • Page 25 MEMO - 24 -...
  • Page 26 MEMO - 25 -...
  • Page 27 4. Caution at use Warranty Info ■ Avoid places of sudden and/or drastic temperature changes 1. Warranty Length ■ Do not use flammable material for cleaning Warranty is good for 1 year after purchase for ■ Do not install near high voltage usage or malfunctions due to manufacturer defects voltage fluctuations 2.
  • Page 28 www.addinco.com #321 YTC 847, Buheung-ro, Gwangjeok-myeon, Yangju-si, Gyeonggi-do, Korea (11416) Tel : 070-4236-0072 , Fax : 031-848-2072 e-mail : sales@addinco.com - 27 -...
