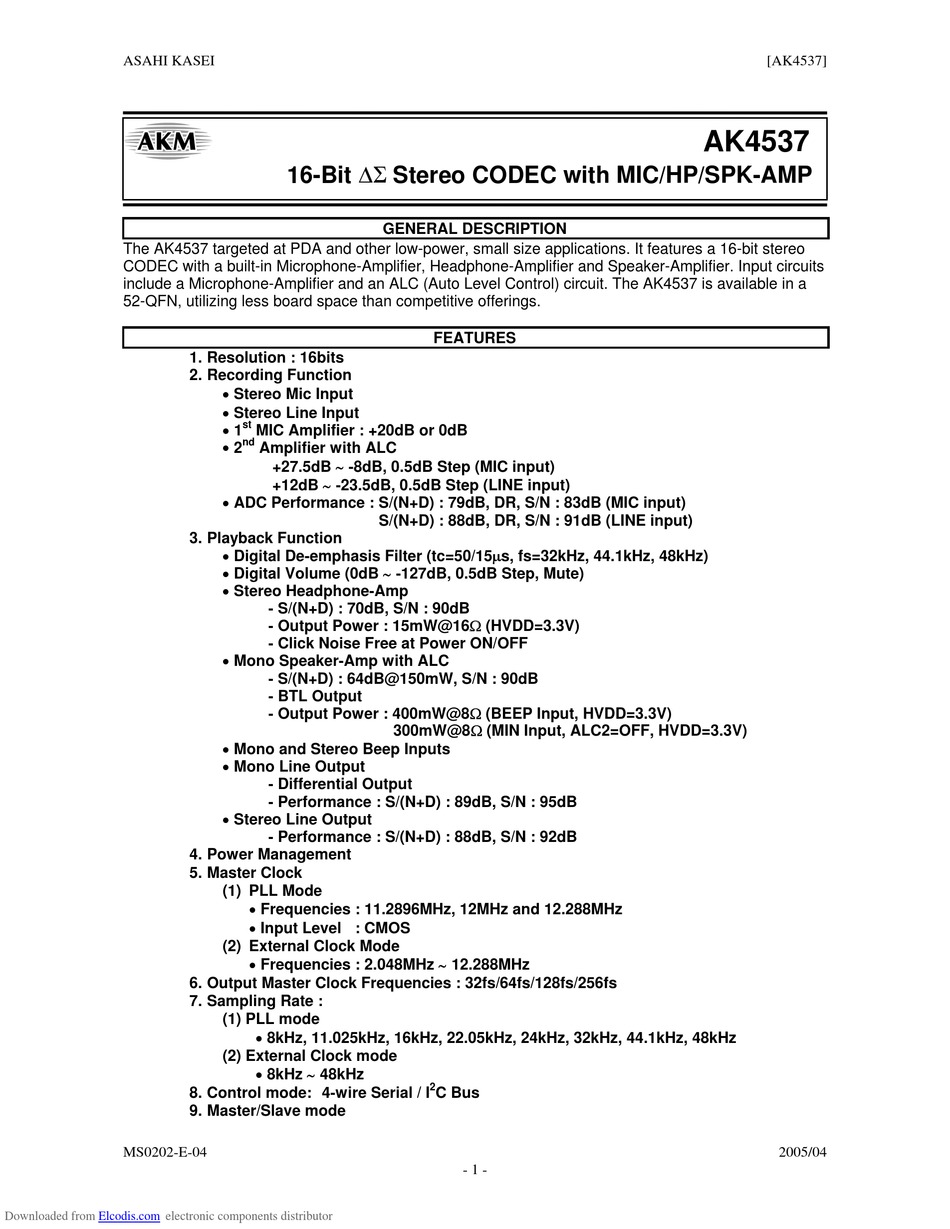

ASAHI KASEI

The AK4537 targeted at PDA and other low-power, small size applications. It features a 16-bit stereo

CODEC with a built-in Microphone-Amplifier, Headphone-Amplifier and Speaker-Amplifier. Input circuits

include a Microphone-Amplifier and an ALC (Auto Level Control) circuit. The AK4537 is available in a

52-QFN, utilizing less board space than competitive offerings.

MS0202-E-04

Downloaded from

Elcodis.com

electronic components distributor

16-Bit '6 Stereo CODEC with MIC/HP/SPK-AMP

1. Resolution : 16bits

2. Recording Function

x Stereo Mic Input

x Stereo Line Input

x 1

MIC Amplifier : +20dB or 0dB

x 2

Amplifier with ALC

+27.5dB a -8dB, 0.5dB Step (MIC input)

+12dB a -23.5dB, 0.5dB Step (LINE input)

x ADC Performance : S/(N+D) : 79dB, DR, S/N : 83dB (MIC input)

3. Playback Function

x Digital De-emphasis Filter (tc=50/15Ps, fs=32kHz, 44.1kHz, 48kHz)

x Digital Volume (0dB a -127dB, 0.5dB Step, Mute)

x Stereo Headphone-Amp

- S/(N+D) : 70dB, S/N : 90dB

- Output Power : 15mW@16: (HVDD=3.3V)

- Click Noise Free at Power ON/OFF

x Mono Speaker-Amp with ALC

- S/(N+D) : 64dB@150mW, S/N : 90dB

- BTL Output

- Output Power : 400mW@8: (BEEP Input, HVDD=3.3V)

x Mono and Stereo Beep Inputs

x Mono Line Output

- Differential Output

- Performance : S/(N+D) : 89dB, S/N : 95dB

x Stereo Line Output

- Performance : S/(N+D) : 88dB, S/N : 92dB

4. Power Management

5. Master Clock

(1) PLL Mode

x Frequencies : 11.2896MHz, 12MHz and 12.288MHz

x Input Level : CMOS

(2) External Clock Mode

x Frequencies : 2.048MHz a 12.288MHz

6. Output Master Clock Frequencies : 32fs/64fs/128fs/256fs

7. Sampling Rate :

(1) PLL mode

x 8kHz, 11.025kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz

(2) External Clock mode

x 8kHz a 48kHz

8. Control mode: 4-wire Serial / I

9. Master/Slave mode

GENERAL DESCRIPTION

FEATURES

S/(N+D) : 88dB, DR, S/N : 91dB (LINE input)

300mW@8: (MIN Input, ALC2=OFF, HVDD=3.3V)

C Bus

- 1 -

[AK4537]

AK4537

2005/04
