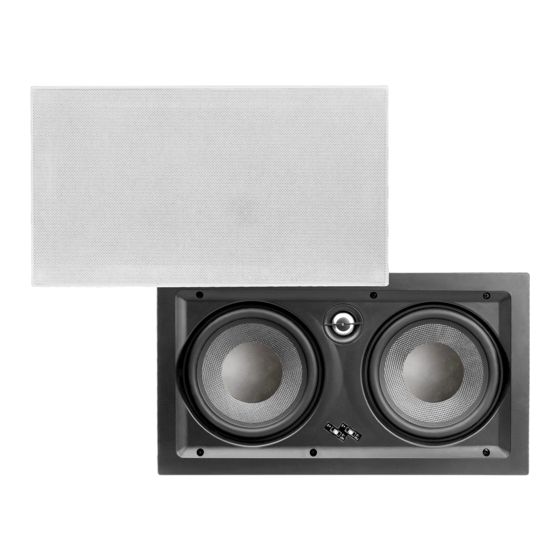

OSD Audio BLACK T63LCR Install Manual

OSD Audio BLACK T63LCR Install Manual

Advertisement

Quick Links

T63LCR INSTALL GUIDE
T63 LCR manual.indd 1
8/10/22 11:47 AM

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLACK T63LCR and is the answer not in the manual?

Questions and answers

Summary of Contents for OSD Audio BLACK T63LCR

  • Page 1 T63LCR INSTALL GUIDE T63 LCR manual.indd 1 8/10/22 11:47 AM...
  • Page 2 T63LCR INSTALL GUIDE T63LCR INSTALL GUIDE Preparation: Mounting Open Position Locked Position Tools For Installation Speaker Wire Guide Tighten the mounting brackets by simply turning the screws on the front of the speaker baffle slowly clockwise. The quick-turn mounting system and frame will “sandwich” or clamp around the - Pencil - Wire Cutter - Safety Eye Wear...
  • Page 3 T63LCR INSTALL GUIDE Specifications: T63LCR In-Wall LCR Speaker Woofer: Dual 6.5” Carbon Fiber Cone Tweeter: 1” Aluminum Dome Power Handling: 200W Sensitivity: 87dB 1w/1m Freq Response: 45Hz - 22kHz Impedance: 8 ohms Dimension: (LxW) 15.9” x 8.9” Cut Out: 14.3” x 7.4” Mounting Depth: 3.3”...
