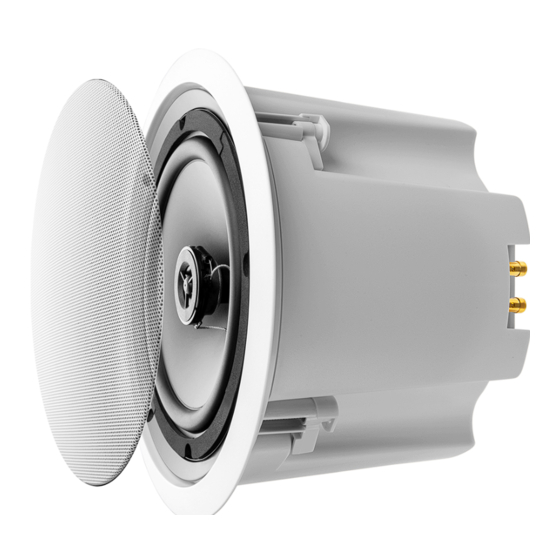

OSD Audio ICE630ST Install Manual

Preparation:

Tools For Installation

- Pencil - Wire Cutter
- Drill - Phillips Screwdriver
- Tape Measure - Utility Knife

Considerations

- Where is the best place to install the speakers?
- Where do the speakers sound the best?
- Separate the speakers 6 - 10 feet apart.

Installation:

Cut Out

NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.
Trace along the included template. Cut along the traced line using a
drywall saw or rotary drill. Use a piece of sandpaper to sand down the
cut out edge for a smoother contour. (See Diagram 1.)

Connection

When connecting any speakers to the amplifier always make sure
the power is off. Locate the connection terminals on the back of
your amplifier. Always make sure to connect audio out from the
back of your amplifier to the speakers.
(See Diagram 2.)
NOTE: Not all Amplifier can safely play more than one pair of
speakers at once. Please refer to your amplifier owner's manual for
impedance and wattage compatibility.

Transformer Settings

Choose the correct setting on the dial for your particular application.
(See Diagram 3.)
NOTE: Tap settings & dial may differ slightly from diagram
depending on model.
ICE630ST manual.indd 1

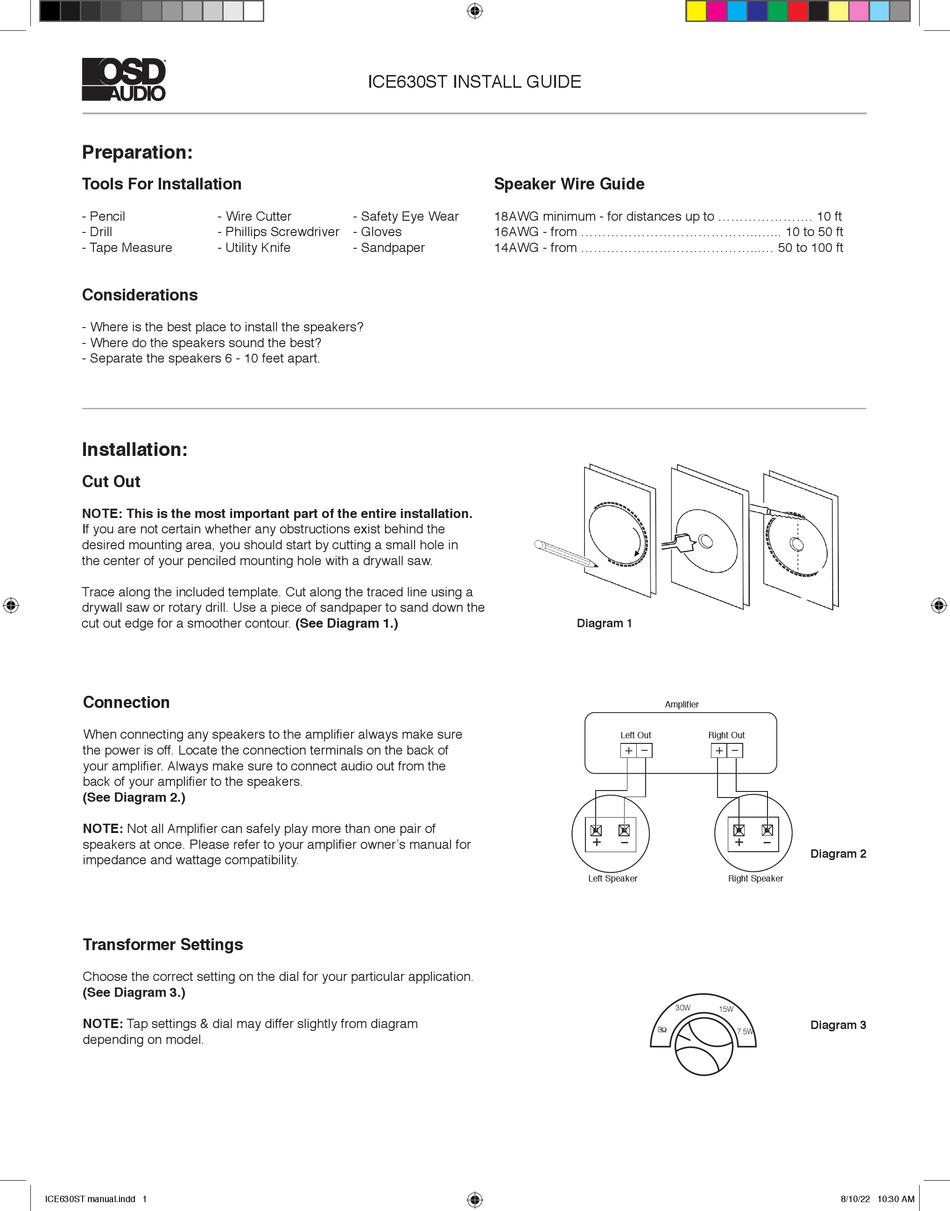

ICE630ST INSTALL GUIDE
Speaker Wire Guide
- Safety Eye Wear 18AWG minimum - for distances up to ...................... 10 ft
- Gloves 16AWG - from ............................................... 10 to 50 ft
- Sandpaper 14AWG - from ............................................. 50 to 100 ft
Diagram 1
Amplifier
Left Out Right Out
- -
+ +
-
+ +
Left Speaker Right Speaker
30W
15W
8�
7.5W
-
Diagram 2
Diagram 3
