Total-Lift Bed
Elevating Patient Care & Mobility
ASSEMBLY, OPERATING AND MAINTENANCE MANUAL
Bed Model:
VG-TLB 425T
➢
Total -Drive
© 2015 Vitalgo Systems Ltd. All rights reserved. Vitalgo, the Vitalgo logo, Total-Lift Bed™, Joy Bath, Joy Spa, Total-Lift Chair and Total-Lift Toilet Seat are trademarks of Vitalgo Systems Ltd. Other
names are the property of their respective owners.
Rev.: 15.0
™
DEALER: This manual MUST be given
to the user of the product.
USER: BEFORE using this product, read
this manual and save for future reference.
For more information regarding
VitalGo products, parts, and services,
please visit
Rev. Date: Nov. 10, 2020
www.vitalgosys.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Total-Lift Bed 425T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VitalGo Total-Lift Bed 425T

Summary of Contents for VitalGo Total-Lift Bed 425T

  • Page 1 © 2015 Vitalgo Systems Ltd. All rights reserved. Vitalgo, the Vitalgo logo, Total-Lift Bed™, Joy Bath, Joy Spa, Total-Lift Chair and Total-Lift Toilet Seat are trademarks of Vitalgo Systems Ltd. Other names are the property of their respective owners.

  • Page 2: Warning

    THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. Vitalgo products are specifically designed and manufactured for use in conjunction with Vitalgo accessories. Accessories designed by other manufacturers have not been tested by Vitalgo and are not recommended for use with Vitalgo products.
  • Page 3 Rev. Date: Nov. 10, 2020 Rev.: 15.0 Form A-755-6 THE CORD DOES NOT BECOME ENTANGLED AND EVENTUALLY SEVERED DURING USE. MAKE SURE ELECTRIC CORDS DO NOT GET TANGLED AROUND THE BED, SIDE RAILS OR LEGS DURING NORMAL OPERATION OF THE BED. •...

  • Page 4: Table Of Contents

    NOTICE ..................................... 2 DANGER/ WARNING/ CAUTION SUMMARY ........................2 Meaning of the Safety Symbols ............................ 3 Preface ....................................7 About The Vitalgo Total-Lift Bed............................... 8 UNPARALLELED SAFETY ................................ 8 Applied Parts ..................................8 General Guidelines & Safety Instructions ..........................9 OPERATING INFORMATION ..............................
  • Page 5 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 ELECTRIC ADJUSTMENT SYSTEM ............................20 DESCRIPTION OF MATERIALS ..............................21 Label Locations .................................. 21 OPERATION ..................................... 22 CAUTION ................................... 22 WARNING ................................... 22 Side rail control ................................22 Wired hand set ................................22 Control Functions ................................
  • Page 6 Steps for transporting the bed ............................43 CHARGING THE DRIVE SYSTEM BATTERIES ......................... 44 Basic Safety Instructions ..............................44 Digital Inclinometer – Angle Sensor (optional) ........................46 Declaration of Electromagnetic Environment guidelines ....................... 47 LIMITED WARRANTY ................................50 ABOUT VITALGO SYSTEMS LTD ............................... 51...

  • Page 7: Preface

    Form A-755-6 Preface Dear customer, Thank you for the confidence you have shown in VitalGo Systems products. The Total-Lift Bed™ has been factory checked for electrical safety. All functions have been checked and were operating perfectly before delivery Please take your time to read this manual carefully before operating the bed. This manual applies to normal use of the bed and assembly and maintenance.

  • Page 8: About The Vitalgo Total-Lift Bed

    • Safety Rails (optional) – Can be added to the upper and lower part of the bed, on one or both sides. Vitalgo has adopted all FDA clinical guidance to reduce Entrapment. •...

  • Page 9: General Guidelines & Safety Instructions

    REPLACEMENT PARTS/ACCESSORIES GUIDELINES VitalGo products are specifically designed and manufactured for use in conjunction with VitalGo accessories. Accessories designed by other manufacturers have not been tested by VitalGo and are not recommended for use with VitalGo products. Use ONLY VitalGo’s Total-Lift Bed™...

  • Page 10: Electrical Guidelines

    Variations in bed side rail design, width and thickness or firmness of the mattress could cause/contribute to entrapment. Use only authorized VitalGo replacement parts and/or accessories otherwise the warranty is void. VitalGo will not be responsible for any damage or injury that may result.

  • Page 11: Radio Frequency Interference

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 10 of 47 RADIO FREQUENCY INTERFERENCE Electronic equipment may be influenced by Radio Frequency Interference (RFI). Caution should be exercised with regard to the use of portable communications equipment in the area around such equipment. If RFI causes erratic behavior, unplug the electric bed IMMEDIATELY.

  • Page 12: Weight Limitations

    Form A-755-6 WEIGHT LIMITATIONS The total weight limit of the VitalGo Total-Lift Bed™ VG-TLB425V/T is 425 pounds (193Kg) patient weight. DO NOT permit more than one person on/in the bed at any time. When the bed is an operation body weight should be evenly distributed over the surface of the Total-Lift Bed™.

  • Page 13: Definitions Of Involved Persons

    In this manual the following persons are involved: TECHNICIAN A person trained and authorized by Vitalgo to service the bed, or is working for VitalGo’s distributor and was trained by distributor with VitalGo’s guidelines. The technician is responsible for instructing the user in the proper use of the unit.

  • Page 14: Safety Instructions For Technicians

    Do not put multiple electrical outlets under the bed. Leaking liquids can be a fire hazard. Pay special attention to securely locating all wiring, cables, tubes, etc. For further information please contact the dealer or person from which you purchased the bed or VitalGo Sys- tems directly.

  • Page 15: Vg-Tlb425T Part Description

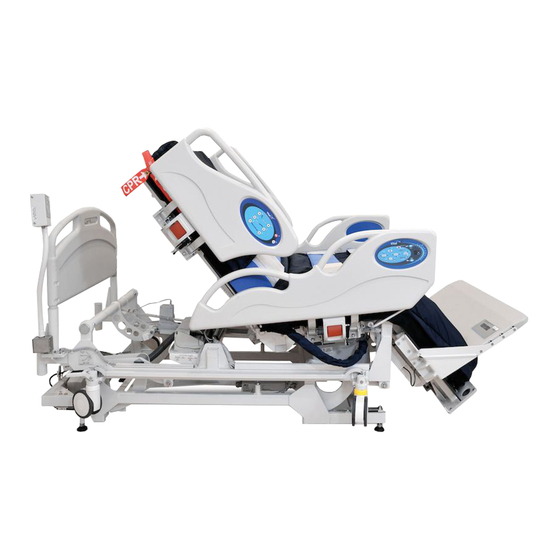

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 VG-TLB425T Part Description 1. Headboard. Total Drive handles. 2. Scale display. 23. Tilt quick release handle. 3. Backrest 24. Controller. 4. Handset 25. Power Supply. 5. Side-Rail control panel. 26. Battery backup. 6.

  • Page 16: Bottom View

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Bottom View 29. Electric connections box. 30. Foot Lifter move stoper. (red button). 31. Total Drive. 32. Tilt Quick-release gas piston. 33. Hi/Low Actuator. 34. Foot-lifter actuator. 35. Leg-rest actuator. 36. Tilt actuator. 36.

  • Page 17: Product Description

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Product description NORMAL OPERATING PROCEDURE The Total Lift Bed, Hereafter called bed, is a, one of its kind, Tilting Hospital Bed which can take the user to a standing position, seating position with legs down/ up and many other positions as described in this manual. The Total Lift Bed has a state of the art programmable system, which allows many functions and possibilities, for the safety, comfort and independence of the user and Care giver.

  • Page 18: Technical Specifications

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Technical Specifications Bed Weight - (Including Low Air Loss mattress) 315kg (695lb). Bed Dimensions: (Possible error ± 15mm) • Length: Overall Length (in regular position)......85.83” (218cm) Overall Length – Fully extended (Foot lifter out)..89.76” (228cm) •...
  • Page 19 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 40.95” (104cm) 3.95” (10cm) 37.8” 7.90” (20cm) 20.67” (52.5cm 85.82” (218cm) 1.38” (3.50cm) 80.25” (203.83cm) 87.40” (222cm)

  • Page 20: Lifetime Of The Device

    8 years, in the abundance of caution, for the purposes of compliance with all regulatory and ISO13485:2016 requirements, Vitalgo has designated 7 years to be the expected life time of the TLB425T bed. RECLINING SURFACE FRAME The reclining surface frame has four sections: a movable backrest, a moveable thigh rest, a movable leg rest and a movable Foot Lifter™.

  • Page 21: Description Of Materials

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 DESCRIPTION OF MATERIALS The bed is mostly constructed out of steel sections, their surfaces are mostly powder coated and some Directive 2002/95/EC,) are painted. All parts comply with the RoHS ( regulatory requirements.

  • Page 22: Operation

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 OPERATION CAUTION Allow a slight pause between adjustments and avoid pressing multiple buttons at the same time unless indicat- ed. If wired hand set buttons are depressed too rapidly or wrong button combinations are pressed at the same time, the desired feature may not activate.

  • Page 23: Control Functions

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Control Functions Please Note: At the end of the movement of each function (un- less stated otherwise) two beeps will be heard. Press button continuously to perform each function. The Total-Lift Bed™ has a state of the art program system which is controlling actuators in perfect synchronization in order to achieve safe and comfortable movements and positions.

  • Page 24: Automatic Functions

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 • – (5&6) RAISING & LOWERING THE BED HORIZONTALLY Pressing Button (5) will raise the Bed horizontally up to a maximum height of 29.5”(75.5cm) (Without Mattress). Pressing Button (6) will lower the bed Horizontally to a minimum height of 20.67”(52.5 cm) (Without Mattress).

  • Page 25: Nurse Functions: Tilting

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 In case the position is not comfortable or needed to be adjusted, use buttons 1 to 4 for adjusting the Backrest and Leg rest. Also possible to move the foot lifter, as described above. CPR –...

  • Page 26: Side Rail Control Panel Operation

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 SIDE RAIL CONTROL PANEL OPERATION Side Rail control panels are located on both sides of the two upper side rails. The panels include all basic functions, but do not include the Tilting, Trendelenburg and auto seating functions.* Locking the Panel - The panel facing the care-giver, includes a Lock button (button 8) –...

  • Page 27: Initialization Of The Bed

    Check all connections and redo steps 1 and 2. if the bed still does not work consult with VitalGo’s authorized technician. At the end of the initialization procedure all motors should be in end of stroke position (in or out) –...

  • Page 28: Drainage Bag Holder/ Din Rails

    Bed can now be operated normally Drainage Bag Holder/ Din Rails (Optional) The Vitalgo TLB425T offers Drainage Bag Rail / Din Rail solution. The Maximum weight that can be safely supported by each drainage bag and DIN rail is 11lb (5kg).

  • Page 29: Patient Strapping System

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Patient Strapping System When Tilting a patient the Strapping System should be used with the supervision of the caregiver. The Strapping System is modular and should be used according to the patient’s condition and instructions given by the proper authorized clinician.

  • Page 30: Mattress Attachment

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Mattress Attachment The Mattress straps(1) are tied on the hooks at the two ends of the bed. There are four straps at each side, make sure that the mattress is attached firmly, to avoid movement of the mattress. The straps (2) should be attached on the support surface to prevent lateral movement.

  • Page 31: Troubleshooting

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Troubleshooting Problem Possible Cause Solution Bed does not function at all Power Cord not connected to Clear Error - See page 24 Socket or to Controller Check connection of both sides of Power cable.

  • Page 32: Maintenance

    Form A-755-6 Maintenance WARNING! All repair and maintenance work should be performed only by a qualified technician. VitalGo will accept liability for the bed safety and functional efficiency only when: • Delivery maintenance and repair were carried out by VitalGo’s authorized personal.

  • Page 33: Rechargeable Batteries Maintenance

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 RECHARGEABLE BATTERIES MAINTENANCE BA20 is the battery module in the CB20 system. The cabinet is ultrasonic welded and easily exchangeable with- out the use of tools. Precautions: Battery running: • If battery capacity is under 50% a “beep” sound is given for 2 seconds, when a handset key is pressed. •...
  • Page 34 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 If unsuitable washing powder or disinfectants are used in incorrect mixing ratio, or in case of insufficient main- tenance, there might occur damage to surface of coating of bed, for which the company will not be responsible for.

  • Page 35: Total Lift Bed - Weight Bearing Control System

    Form A-755-6 Total Lift Bed – Weight Bearing Control System Vitalgo’s Total Lift Bed brings the first and only true “Weight Bearing Control” ever. The combination weighing systems comprises a Bed Scale and Foot-Lifter Scale. The display connected to the gooseneck is displaying three measurements –...
  • Page 36 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 C. Foot Lifter Scale – Foot-Lifter scale reading can be seen in two displays, the display on the Foot-lifter and the main display. The Foot-lifter Display will always show the amount of pressure placed on the Foot-Lifter. For the main display –...

  • Page 37: Low Air Loss Mattress System

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Low Air Loss Mattress System THE TLB425 HAS AN INTEGRAL LAL MATTRESS SYSTEM, HAVING THE PUMP CONNECTED TO THE FRAME OF THE BED AND THE CONTROL UNIT (A) TO THE RIGHT FOOT END SIDE-RAIL. The VG-TLB425-MAT-CAM4- System is a 5-zone ALTERNATING PRESSURE &...
  • Page 38 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 MAIN FEATURES OF THE VG-TLB425T-MAT- • Medium Flow (42-52 LPM) Air Output with quiet oper- ating control unit. Max Flow mode (W) inflates mattress in 5 to 10 minutes, has 30 minute max flow timer. •...

  • Page 39: Operating Instructions

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Operating Instructions pressure setting, pressing FIRM key (K) to- wards the FIRM (9) position increases the pressure. The patient comfort pressure ranges from SOFT (1) INITIAL POWER UP 6±4 mmHg to FIRM 32 ± 6 mmHg. Depending on Make sure the mattress hose assembly (V) connected the desired patient comfort level(CP) the micro- securely during initial power up (when power cord is...

  • Page 40: Cpr Function

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 LOCK OUT (LO) Control unit functions (including power) can be com- pletely locked out from being tampered with, by sim- ply pressing and holding the lock key until the light comes on (approximately 3 seconds). ALARM SILEANCE (AS) An audio-visual alarm is sounded in the event of power failure or when the hose is disconnected from the unit.
  • Page 41 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 CPR FUNCTION PERFORMANCE SPECIFICATIONS (VG-TLB425-CAM4 mattress systems) WEIGHT CAPACITY: 425 Lb. (193 Kg.) maximum. U.S. / INTL. Pressure Zone: Max Flow: 42~52 LPM Max Flow Pressure: 35±6 mmHg Max Flow Timer: 30 minutes Support Surface Inflation Time: 5~10 minutes.
  • Page 42 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 ENVIRONMENTAL SPECIFICATIONS OPERATING CONDITIONS: Ambient Temperature: 40° ~ 104° F 10° ~ 40° C Relative Humidity: 30% ~ 75% Non-Condensing Atmospheric Pressure: 700 hPa to 1060 hPa STORAGE AND SHIPPING CONDITIONS: Ambient Temperature: -40°...

  • Page 43: Tlb Total Drive System (Tds) (Optional)

    The Total Lift Bed is designed to treat up to 425lb (193kg) patients and must be stable doing so. The large platform it uses to keep it stable and safe causes it to be heavier to move. For helping to move the TLB425T VitalGo has developed a unique patent pending, user friendly Total- Drive System.

  • Page 44: Battery Charge Indicator

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Battery Charge Indicator • Green Led lights lit, indicates well-charged Batteries. • Amber or Red Led lights lit, indicates batteries are moderately charged. (Note that whenever the bed is connected to power, the TDS batteries are charging).

  • Page 45: Charging The Drive System Batteries

    NOTE: The battery charger provided is specially designed for use with VitalGo TLB425T equipment. In the unlikely event of failure, it should be replaced only with a VitalGo approved charger to assure proper performance of the charger and Drive System.
  • Page 46 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 • Use of the charger in a manner not recommended by the manufacturer may result in the risk of fire, electrical shock or personal injury. • To reduce the possibility of damage to the AC cord or the connector, disconnect the AC line cord by grasping the plug and not the cord, when disconnecting from the wall or receptacle.

  • Page 47: Digital Inclinometer - Angle Sensor (Optional)

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Digital Inclinometer – Angle Sensor (optional) The Inclinometer (angle Sensor) is used to show the angle between the floor and the fowler position, which can be the angle of the Backrest or the Tilting of the bed. OPERATION –...

  • Page 48: Declaration Of Electromagnetic Environment Guidelines

    Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Declaration of Electromagnetic Environment guidelines Declaration – electromagnetic emissions Emissions test Compliance Electromagnetic environment – guidance RF emissions CISPR 11 Group1 Class A The VG-TLB 425T uses RF energy only for its internal function.
  • Page 49 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Single phase at uninterruptible power supply or a 0° 0% UT; battery. 250/300 cycle Power frequency 30 (A/m) 30 (A/m) Power frequency magnetic fields (50/60 Hz) should be at levels characteristic magnetic field of a typical location in a typical IEC 61000-4-8...
  • Page 50 Rev.: 15.0 Rev. Date: Nov. 10, 2020 Form A-755-6 Recommended separation distances between VG-TLB 425T portable and mobile RF communications equipment and the Rated maximum Separation distance according to frequency of transmitter output power of 150 kHz to 80 MHz 150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2,5 GHz...

  • Page 51: Limited Warranty

    This warranty is extended only to the original purchaser who purchases this product when new and unused from Vitalgo or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner.

  • Page 52: About Vitalgo Systems Ltd
