Konifera BW13000 Series Instructions Manual
Retractable awning
Hide thumbs
Also See for BW13000 Series:
- Installation instruction (20 pages) ,
- User manual (120 pages)
Subscribe to Our Youtube Channel
Related Manuals for Konifera BW13000 Series
Summary of Contents for Konifera BW13000 Series

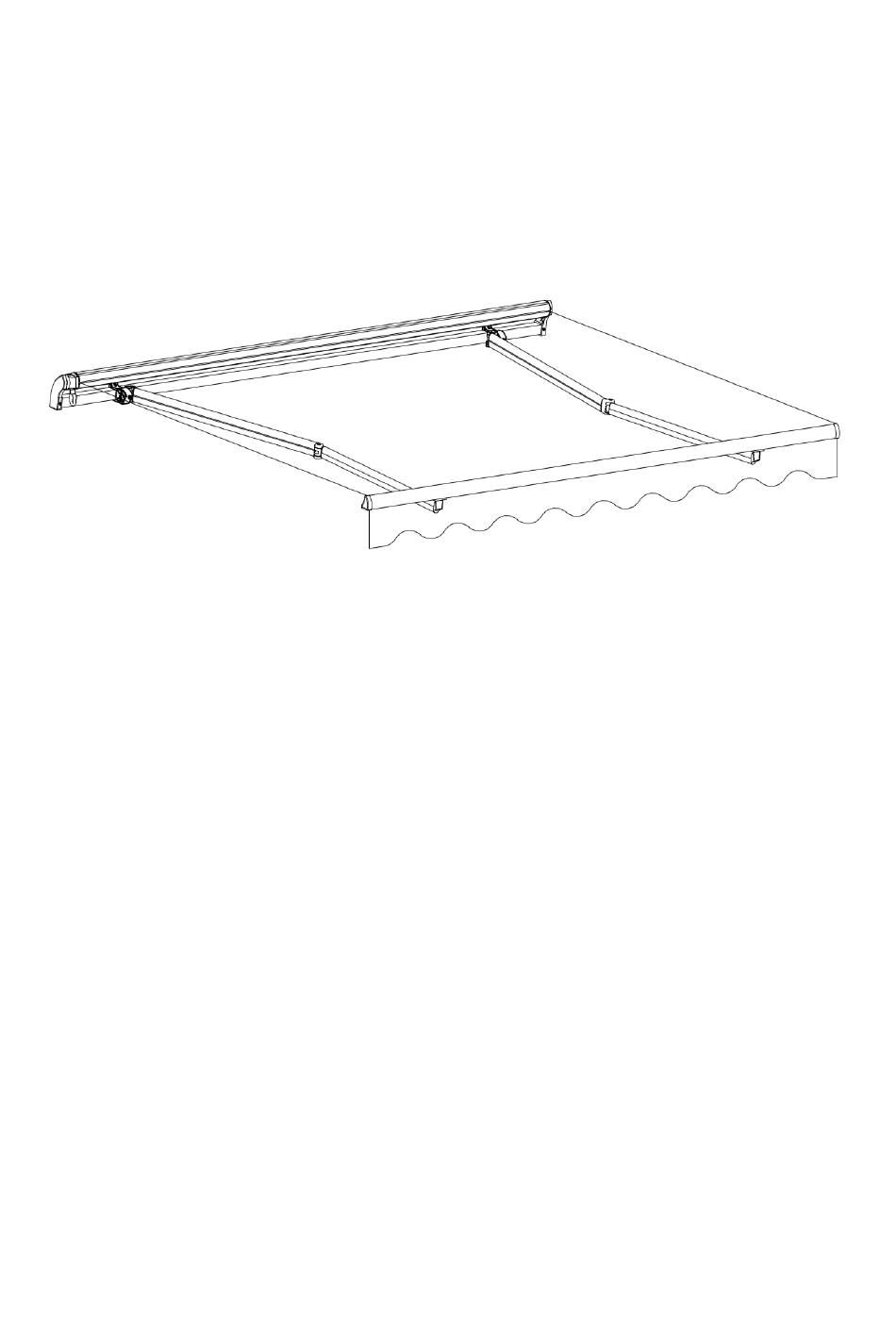

- Page 1 Manual Retractable Awning Instructions for Installation and Operation Contents Specifications Safe installation and operation Parts list Installation procedure (3) (4) (5) Description of mistake Operation of Awning Name list of parts...
- Page 2 Specification / Safety operation Specification Product name Material surface Applicable Recommended Applicable weather treatment wall type installation height BW13000 W×L Materials: Steel tube, Reinforced 2.5m - 3.5m The products are used to retractable awning aluminum alloy, plastic concrete shield sunshine, so it is framework parts, dacron cloth Service walls,...
- Page 3 Parts List Power drill with masonry bit of 12mm...
- Page 4 Installation procedure Distance between neighbouring wall brackets Distance between neighbouring wall brackets when the product length is 3.5m (If awning size is under 2.5m or 3m,only two wall brackets are available on each end of torsion bar while there is no wall brackets in the middle of the awning.) Installation height of wall brackets.
- Page 5 Installation procedure Drill holes on the wall Drill holes for wall brackets on the wall according to the installation distances and heights of the wall brackets. The diameter of the hole is 12mm and the depth of the holes must be the same as that of expansion bolts The holes of each group must be on the same line in a horizontal direction...
- Page 6 Installation procedure/Description of mistake INSTRUCTION FOR THE FRONT SIDE LEVELING 1.LOOSEN THE LOCKING NUTS. 2.TURN THE JACK BOLT TO ADJUST PITCH. 3.ADJUST THE ARM UNTIL THE FRONT SIDE STAYS IN HORIZONTAL LINE . 4.TIGHTEN THE LOCKING NUTS. Description of Potential Problems Operation of the Awning To extend the Awning attach the winding handle to the winding ring loop and turn clockwise until fully open...
- Page 7 ※Note: 1. The gear box is the most vulnerable part of the product, so it needs to be checked once for every three months. 2. It is recommended the Awning is taken off the wall brackets and stored indoors during the winter months to help prolong the life of your awning.
