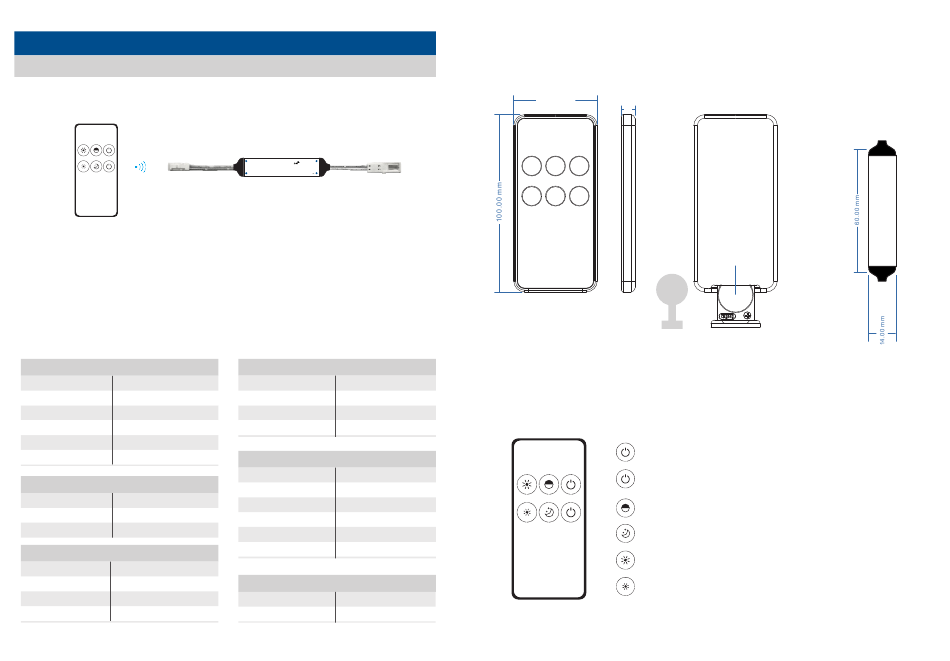

Ledco V1-W User Manual

Single Color LED Controller Kit
Model No.: V1-W+ RM1
1 channels constant voltage/6-key remote/Step-less dimming/Wireless remote 30m distance
30s
Feature
● 1 channel constant voltage single color LED mini RF controller.
● 3A per channel, output connect with 5 meters single color
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● 4096 levels 0-100% dimming smoothly without any flash.
Technical Parameters
RM1 LED Remote Input and Output
Output signal RF 2.4GHz
( )
Working voltage 3VDC CR2032
( )
Working current ＜5mA
Standby current ＜2μA
Standby time 2 years
Remote distance 30m(Barrier-free space)
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +85 O
C
IP rating
IP20
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
CE,EMC,LVD,RED
Certification
User Manual Ver 1.0.2
+

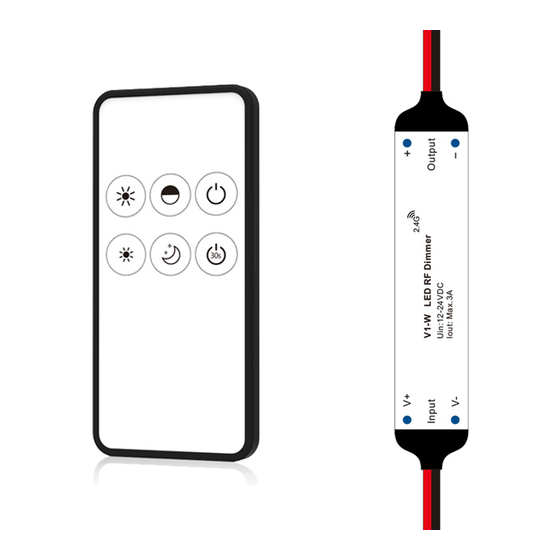

V+
V1-W LED RF Dimmer
Input Output
Uin:12-24VDC
Iout: Max.3A
V-
LED strip, max output power 75W.
V1-W LED Receiver Input and Output
Input voltage
12-24VDC
Output voltage
12-24VDC
Output power
Max. 75W
Output type Constant voltage
Dimming data
Input signal
RF 2.4GHz
Control distance 30m (Barrier-free space)
Dimming gray scale
4096 (2^12) levels
Dimming range
0 - 100%
Logarithmic
Dimming cur ve
PWM Frequency 500Hz (default)
Warranty and Protection
5 years
Warranty
Protection Reverse Polarity
Dimension
8.00 mm
47.00 mm
Note: Before the first use,
please remove the protective film on the battery.
Remote function
On / Off
Turn off light after 30s, long press 2s will turn off light after 60s.
30s
50% brightness
30s
10% brightness for small night light
Brightness+
Brightness-
Brightness+/-:
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
V1-W+ RM1 Single Color LED Controller Kit
CR2032
Batter y
Page 1
