Ledco SR-2835DIM Manual

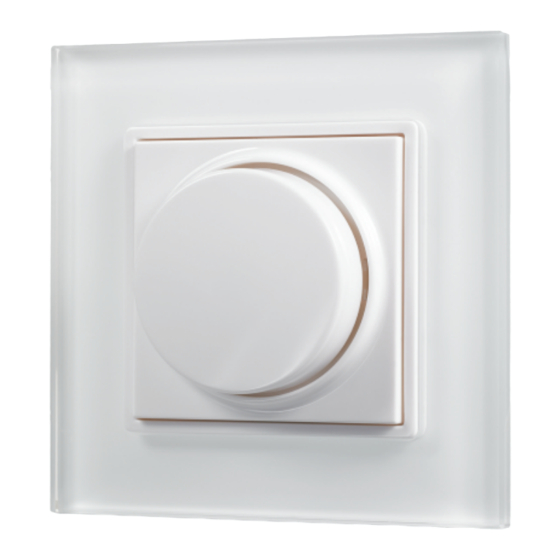

RF Single color wall mount/ stick controller

Feature

SR-2835DIM is a RF wall sticks/ mounted controller for single color lighting. Each white can achieve 256 levels
brightness adjustment. Key part can be uninstall every easily to change battery and frames from other factory.
Receivers work with WIFI-RF convertor to be controlled by smart phone

Parameter

Remote
Operation Voltage
Part No.
SR-2835DIM 3VDC
Receiver
Input Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC

Installation

SR-2835DIM
3M glue stick on the wall or Screw mounted on the wall
Receivers work with WIFI-RF convertor to be controlled
by smart phone
5
Operation
Remarks
Frequency
434MHz/868MHz RF Wireless
Output Current Output Power
4x5A 4x(60-180)W Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Product Size

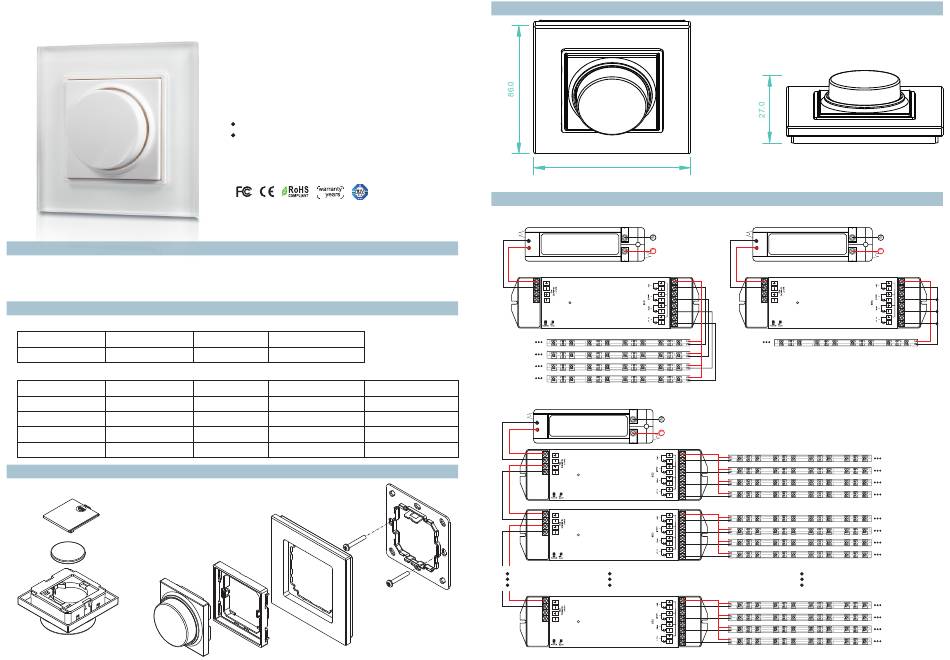

Wiring diagram
1)Receiver Connection Diagram for Single Unit
Single ColorLED Strip
Single ColorLED Strip
Single ColorLED Strip
Single ColorLED Strip
Remarks
2) Receiver Connection Diagram for Multiple Units
Constant current
Constant current
86.0
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Single ColorLED Strip
4x5A
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
SR-1009FA
Learning Key LED CONTROLLER
4x5A
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
1x20A
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
