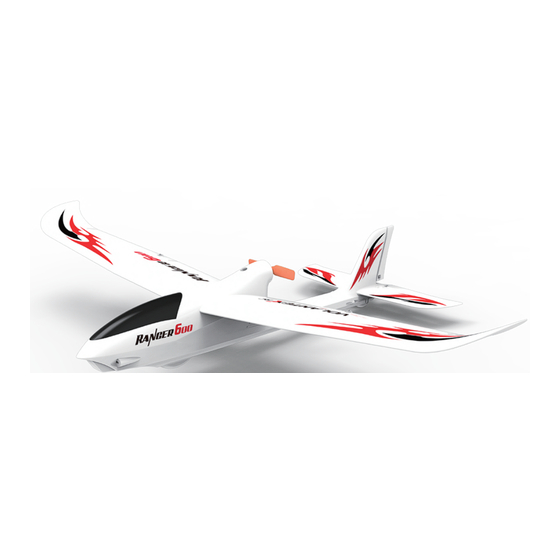

- Page 1 6-AXIS GYRO PARK FLYER USER MANUAL...
-
Page 2: Safety Precautions
This product is not intended for use by children without direct adult supervision. Do not attempt to disassemble, use with incompatible components or augment product in any way without the approval of VolantexRC Co., Ltd.. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Box Contents
- By handling, charging or using the included battery, you shall assume all risks associated with Li-Po/Li-Ion/Ni-Mh battery. - If at any time the battery begins to balloon or swell, discontinue use immediately. If charging or discharging, you should discontinue and disconnect. Continue to use, charge or discharge a battery that is ballooning or swelling can result in - Always store the battery at room temperature in a dry area for best results. -
Page 4: Charging Instruction
Charging Instruction 1. Unplug the battery from your plane. 2. Carefully plug the charger into the USB port on your computer or USB adapter. 3. Connect battery into the charger. 4. The charging process takes about 3.5 hours. For safety reasons, never charge the battery for longer than 4 hours. - Page 5 3. Cover the canopy and make sure 4. Setup is done. Follow below instructions it is secured. airplane. Center Control Surfaces NOTE: Keep the gyro switch off (manual mode) before you operate the steps below. See more information in "gyro switch" section. With the transmitter turned on and the battery conected to the ESC(and installed in the battery compartment), it is now possible to check the center of all control surfaces.
- Page 6 Push Rod Arc-shaped Section Push Rod Arc-shaped Section If the rudder is angled off to the right or If the elevator is angled off to the upper or left, adjust the push rod by its arc-shaped lower position, adjust the push rod by its section slightly, making sure the rudder is arc-shaped section slightly, making sure properly centered.
-
Page 7: Digital Trims
Binding Instruction Binding is the process of programming the receiver to recognize the If you need to rebind for any reason, please follow these steps: 1.Keep the transmitter switched OFF, throttle joystick at buttom position. NOTICE: Keep Gyro switch at Middle or Beginner position. NOTICE: Keep the plane still in a calm environment for calculating the Gyro. - Page 8 Channels Reactions Checking Transmitter Swing The Reaction Reaction Operaton Plane Place your plane in a neutral position, follow below steps to check the channels reactions. Move the sticks(except the throttle stick) to see if all servo surfaces react correctly as shown in the left diagram(left throttle for example).
- Page 9 Gyro System Calibration 1.Turn the throttle stick to min position. 2.Power on the transmitter and the receiver. 3.Do NOT unlock the throttle. 4.Keep the sticks as above picture for several seconds. 5.When you hear a “beep” sound, it means the gyro system is calibrated based on the horizontal level you are keeping it.
-
Page 10: Flight Checklist
5. Scan the QR code to download the app. Android 6. Connect battery to your airplane. 7. Open WIFI setting in your mobile device, connect to the aircraft(WIFI***). 8. Open the app and tap “TAKE OFF” to enter the operation screen. -
Page 11: Flying Conditions
Find a Flight Field or other area that is large enough and free of people and obstructions. We recommend lots, crowded neighborhood areas or in areas that are not free of people or obstructions. is a much more forgiving surface that causes less damage in the unfortunate event or a crash.
