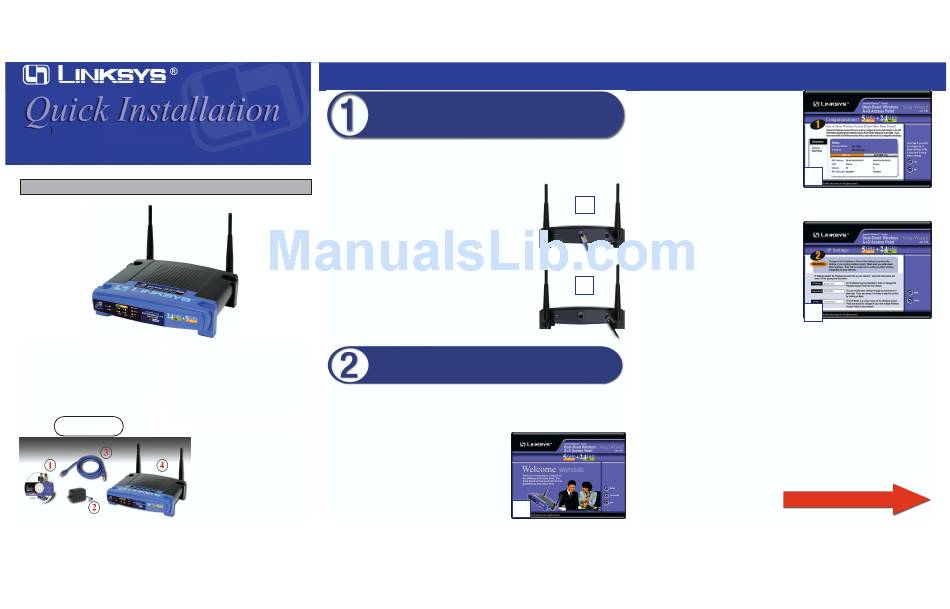

Linksys WAP55AG Quick Installation

This Quick Installation is meant to help you install the product quickly and easily. For detailed instructions
on installation and configuration, and further setup options, please consult the User Guide.
Instant Wireless ® Series
System Requirements
One 200MHz or Faster PC with:
D D u u a a l l - - B B a a n n d d
• 64 MB RAM
• Internet Explorer 4.0 or Netscape Navigator
W W i i r r e e l l e e s s s s A A + + G G
4.7 or Higher for Web-based Configuration
• CD-ROM Drive
A A c c c c e e s s s s P P o o i i n n t t
• 802.11a, 802.11b, or 802.11g Wireless
Adapter with TCP/IP Protocol Installed
WAP55AG
Package Contents
• One Setup CD-ROM
• One Power Adapter
• Ethernet Network Cable
• One Dual-Band Wireless
• One Quick Installation
• One Registration Card (not shown)
Connecting the Wireless
Network Access Point
A. Locate an optimum location for the Access Point. The best place for the Access Point is
usually at the center of your wireless network, with line of sight to all of your mobile sta-
tions.
B. Fix the direction of the antenna. Try to place it in a position which can best cover your
wireless network. Normally, the higher you place the antenna,
the better the performance will be. The antenna's position
enhances the receiving sensitivity.
C. Connect a standard Ethernet network cable to the Access
Point. Then, connect the other end of the Ethernet cable to a
switch or hub. The Access Point will then be connected to your
10/100 Network.
D. Connect the AC Power Adapter to the Access Point's Power
Socket. Only use the power adapter supplied with the Access
Point. Use of a different adapter may result in product damage.
Now that the hardware installation is complete, proceed to setup
the Access Point.
Now that you've connected the Access Point to your wired network, you are ready to begin set-
ting it up. This Setup Wizard will take you through all the steps necessary to configure the
Access Point.
A. Insert the Setup Wizard CD into your PC's CD-ROM
drive.
with User Guide (1)
(2)
B. The Welcome screen should appear on your monitor.
(3)
If it does not, this means the autorun is not function-
ing. Start the Setup Wizard manually by clicking
Access Point (4)
Start, selecting Run, and typing d:\setup.exe. Click
Setup to continue this Setup Wizard.
guide (not shown)

Setting Up the Access Point

B
C. The following screen displays how to connect
the Access Point. This should have been done
as shown in Step One. Click Next to continue.
D. The next screen to appear will display a list of
access points on your network along with the
status information for each access point.
Choose this Access Point for configuration
and click Yes to continue.
E. You will be asked to sign onto the Access Point you've selected. Enter the default pass-
C
word: admin. Then, click OK.
F. The IP Settings screen will appear next. Enter
an IP Address, Subnet Mask, and enter a
unique access point name for the Access Point
appropriate to your network. Then, click Next
to continue.
D
IP Address. This IP address must be unique to your network. (The default IP address is
192.168.1.246.)
Subnet Mask. The Access Point's Subnet Mask must be the same as your Ethernet net-
work.
Access Point Name. Assign a name to the Access Point. Unique, memorable names are
helpful, especially if you are employing multiple access points on the same network.
D
F
Continued on back
