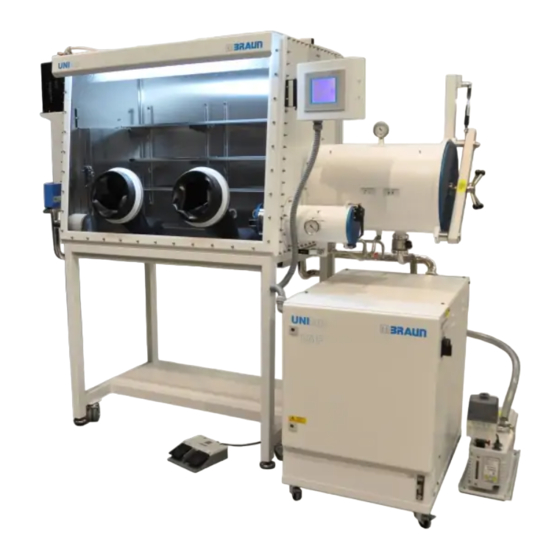

Operating

Instructions

for MBRAUN systems

with one purifier column

• MB 20G

• MB 30G

• Workstation MB 120B-G

• Workstation MB 150B-G-I

• Workstation Labmaster

• Glove-Boxes

General Information

Transport / Side Selection

Preparing the Connections

Installation

Activating the System

OP 17 Operation Panel

Purging the System

Pressure Control System

Circulation Mode

Regeneration

Settings and Display Types

Antechamber Operation

Dust Filters

Analyzers

Maintenance and Service

Spare Parts List

Table of Contents
