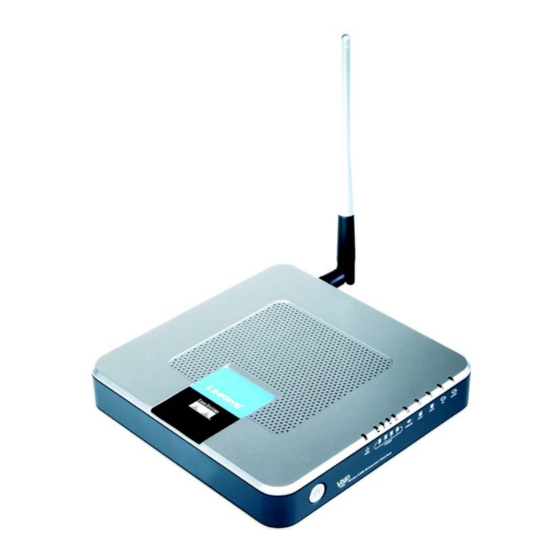

Linksys WAG54GP2 User Manual

Wireless-g adsl gateway with 2 phone ports
Hide thumbs Also See for WAG54GP2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Data
2.4
GHz
Wireless-G
802.11g

User Guide

ADSL Gateway
with 2 Phone Ports
WIRELESS
WAG54GP2
Model No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAG54GP2 and is the answer not in the manual?

Questions and answers

Related Manuals for Linksys WAG54GP2

Summary of Contents for Linksys WAG54GP2

  • Page 1: User Guide

    Wireless-G 802.11g User Guide ADSL Gateway with 2 Phone Ports WIRELESS WAG54GP2 Model No.

  • Page 2: Copyright And Trademarks

    Wireless-G ADSL Gateway with 2 Phone Ports Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved.

  • Page 3: Table Of Contents

    The Applications and Gaming Tab The Administration Tab The Status Tab The Voice Tab Chapter 5: Using the Linksys Parental Control Service Overview Introduction Signing up for the Linksys Parental Control Service Signing up for the Linksys Parental Control Service...
  • Page 4 Wireless-G ADSL Gateway with 2 Phone Ports Suggest a Rating Using the Parental Control Service Appendix A: Troubleshooting Common Problems and Solutions Frequently Asked Questions Chapter 6: Wireless Security Important Information for Wireless Products Appendix B: Configuring IPSec between a Windows 2000 or XP Computer and the Gateway Introduction Environment...

  • Page 5: List Of Figures

    Wireless-G ADSL Gateway with 2 Phone Ports List of Figures Figure 1-1: Network Figure 1-2: Computer-to-VPN Gateway Figure 1-3: VPN Gateway-to-VPN Gateway Figure 2-1: Back Panel Figure 2-2: Front Panel Figure 3-1: Connecting your networking devices Figure 3-2: Connecting your ADSL line Figure 3-3: Connecting your phones Figure 3-4: Connecting the power Figure 4-1: Password Screen...
  • Page 6 Wireless-G ADSL Gateway with 2 Phone Ports Figure 4-22: Wireless Tab - Wireless Network Access Figure 4-23: MAC Address Access/Filter List Figure 4-24: Wireless Tab - Advanced Wireless Settings Figure 4-25: Security Tab - Firewall Figure 4-26: Security Tab - VPN Figure 4-27: VPN Settings Summary Figure 4-28: Auto Key Management Figure 4-29: Manual Key Management...
  • Page 7 Figure 4-56: Voice Tab - Voice Authentication Figure 5-1: Safe Surfing Figure 5-2: Access Restrictions Tab - Parental Control Figure 5-3: Linksys Service Agreement Figure 5-4: Sign Up Figure 5-5: Purchase Service Figure 5-6: Connecting to the Parental Control Service...
  • Page 8 Wireless-G ADSL Gateway with 2 Phone Ports Figure 5-32: Tray Icon Figure 5-33: Pop-up Screen (Login) Figure 5-34: Pop-up Screen (Sign Out) Figure 5-35: Right-Click Tray Icon Figure 5-36: Re-activate Tray Icon Figure C-1: Local Security Screen Figure C-2: Rules Tab Figure C-3: IP Filter List Tab Figure C-4: IP Filter LIst Figure C-5: Filters Properties...
  • Page 9 Wireless-G ADSL Gateway with 2 Phone Ports Figure D-1: IP Configuration Screen Figure D-2: MAC Address/Adapter Address Figure D-3: MAC Address/Physical Address Figure E-1: Upgrade Firmware...

  • Page 10: Chapter 1: Planning Your Network

    IP stands for Internet Protocol. Every device on an IP-based network, including computers, print servers, and Gateways, requires an IP address to identify its “location,” or address, on the network. This applies to both the Internet and network connections. There are two ways of assigning an IP address to your network devices. You can assign static IP addresses or use the Gateway to assign IP addresses dynamically.

  • Page 11: Dynamic Ip Addresses

    Wireless-G ADSL Gateway with 2 Phone Ports Since you use the Gateway to share your DSL Internet connection, contact your ISP to find out if they have assigned a static IP address to your account. If so, you will need that static IP address when configuring the Gateway.

  • Page 12: Figure 1-2: Computer-To-Vpn Gateway

    Wireless-G ADSL Gateway with 2 Phone Ports There are two basic ways to create a VPN connection: • VPN Gateway to VPN Gateway • Computer (using VPN client software that supports IPSec) to VPN Gateway The VPN Gateway creates a “tunnel” or channel between two endpoints, so that data transmissions between them are secure.

  • Page 13: Why Do I Need A Vpn

    For additional information and instructions about creating your own VPN, please visit Linksys’s website at www.linksys.com or refer to Appendix C: Configuring IPSec between a Windows 2000 or XP computer and the VPN Gateway.
  • Page 14 Wireless-G ADSL Gateway with 2 Phone Ports 2) Data Sniffing Data “sniffing” is a method used by hackers to obtain network data as it travels through unsecured networks, such as the Internet. Tools for just this kind of activity, such as protocol analyzers and network diagnostic tools, are often built into operating systems and allow the data to be viewed in clear text.

  • Page 15: Chapter 2: Getting To Know The Wireless-G Adsl Gateway With 2 Phone Ports

    Wireless-G ADSL Gateway with 2 Phone Ports Chapter 2: Getting to Know the Wireless-G ADSL Gateway with 2 Phone Ports The Back Panel The Gateway’s ports, where a network cable is connected, are located on the back panel. The Gateway’s Reset button is also located on the back panel.

  • Page 16: The Front Panel

    Wireless-G ADSL Gateway with 2 Phone Ports The Front Panel The Gateway's LEDs, where information about network activity is displayed, are located on the front panel. Figure 2-2: Front Panel Power Green. The Power LED lights up when the Gateway is powered on. Ethernet (1-4) Green.

  • Page 17: Chapter 3: Connecting The Wireless-G Adsl Gateway

    Wireless-G ADSL Gateway with 2 Phone Ports Chapter 3: Connecting the Wireless-G ADSL Gateway Overview The Gateway’s setup consists of more than simply plugging hardware together. You will have to configure your networked computers to accept the IP addresses that the Gateway assigns them (if applicable), and you will also have to configure the Gateway with setting(s) provided by your Internet Service Provider (ISP).

  • Page 18: Wired Connection To A Computer

    Wireless-G ADSL Gateway with 2 Phone Ports Wired Connection to a Computer 1. Before you begin, make sure that all of your network’s hardware is powered off, including the Gateway and all computers. 2. Connect one end of an Ethernet network cable to one of the Ethernet ports (labeled 1-4) on the back of the Gateway, and the other end to an Ethernet port on a computer.

  • Page 19: Wireless Connection To A Computer

    6. For initial access to the Gateway through a wireless connection, make sure the computer’s wireless adapter has its SSID set to linksys (the Gateway’s default setting), and that Wireless Security is disabled. After you have accessed the Gateway, you can change the Gateway and this computer’s adapter settings to match the your usual network settings.

  • Page 20: Chapter 4: Configuring The Gateway

    Wireless-G ADSL Gateway with 2 Phone Ports Chapter 4: Configuring the Gateway Overview Follow the steps in this chapter and use the Gateway’s web-based utility to configure the Gateway. This chapter will describe each web page in the Utility and each page’s key functions. The utility can be accessed via your web browser through use of a computer connected to the Gateway.
  • Page 21 Wireless-G ADSL Gateway with 2 Phone Ports Security • Firewall. This screen contains Filters and Block WAN Requests. Filters block specific internal users from accessing the Internet and block anonymous Internet requests. • VPN. To enable or disable IPSec, PPPoE, L2TP, and/or PPTP Pass-through, and set up VPN tunnels, use this screen.

  • Page 22: How To Access The Web-Based Utility

    Wireless-G ADSL Gateway with 2 Phone Ports • Reboot. From this screen, you can reboot the Gateway. Status • Gateway. This screen provides status information about the Gateway. • Local Network. This provides status information about the local network. • Wireless. This screen provides status information about the wireless network. •...

  • Page 23: The Setup Tab

    Wireless-G ADSL Gateway with 2 Phone Ports The Setup Tab The Basic Setup Tab The first screen that appears is the Basic Setup tab. This tab allows you to change the Gateway's general settings. Change these settings as described here and click the Save Settings button to save your changes or Cancel Changes to cancel your changes.

  • Page 24: Figure 4-3: Basic Setup Tab - Rfc 1483 Bridged

    Wireless-G ADSL Gateway with 2 Phone Ports RFC 1483 Bridged VC Settings. You will configure your Virtual Circuit (VC) settings in this section. • Multiplexing. Select LLC or VC, depending on your ISP. • QoS Type. Select from the drop-down menu: CBR (Continuous Bit Rate) to specify fixed bandwidth for voice or data traffic;...
  • Page 25 Wireless-G ADSL Gateway with 2 Phone Ports IP Settings. Follow the instructions in the section for your type of encapsulation. Select Obtain an IP Address Automatically if you are connecting through a dynamic IP address. If you are required to use a permanent (static) IP address to connect to the Internet, select Use the following IP Address. •...

  • Page 26: Figure 4-4: Basic Setup Tab - Rfc 1483 Routed

    Wireless-G ADSL Gateway with 2 Phone Ports RFC 1483 Routed VC Settings. You will configure your Virtual Circuit (VC) settings in this section. • Multiplexing. Select LLC or VC, depending on your ISP. • QoS Type. Select from the drop-down menu: CBR (Continuous Bit Rate) to specify fixed bandwidth for voice or data traffic;...

  • Page 27: Figure 4-5: Basic Setup Tab - Ipoa

    Wireless-G ADSL Gateway with 2 Phone Ports IPoA If you are required to use IPoA (IP over ATM), then select IPoA. VC Settings. You will configure your Virtual Circuit (VC) settings in this section. • Multiplexing. Select LLC or VC, depending on your ISP. •...

  • Page 28: Figure 4-6: Basic Setup Tab - Rfc 2516 Pppoe

    Wireless-G ADSL Gateway with 2 Phone Ports RFC 2516 PPPoE VC Settings. You will configure your Virtual Circuit (VC) settings in this section. • Multiplexing. Select LLC or VC, depending on your ISP. • QoS Type. Select from the drop-down menu: CBR (Continuous Bit Rate) to specify fixed bandwidth for voice or data traffic;...
  • Page 29 Wireless-G ADSL Gateway with 2 Phone Ports PPPoE Settings. Follow the instructions in the section for your type of encapsulation. • PPPoE Session. Configure the Service Name, User Name, and Password settings provided by your ISP. Enter the domain name in the Match Domain Name field. Connect on Demand.

  • Page 30: Figure 4-7: Basic Setup Tab - Rfc 2364 Pppoa

    Wireless-G ADSL Gateway with 2 Phone Ports RFC 2364 PPPoA VC Settings. You will configure your Virtual Circuit (VC) settings in this section. • Multiplexing. Select LLC or VC, depending on your ISP. • QoS Type. Select from the drop-down menu: CBR (Continuous Bit Rate) to specify fixed bandwidth for voice or data traffic;...

  • Page 31: Figure 4-8: Basic Setup Tab - Bridged Mode Only

    Wireless-G ADSL Gateway with 2 Phone Ports Bridged Mode Only If you are using your Gateway as a bridge, which makes the Gateway act like a standalone modem, select Bridged Mode Only. All NAT and routing is disabled in this mode. VC Settings.

  • Page 32: Figure 4-9: Basic Setup Tab - Dns Proxy And Optional Settings

    Wireless-G ADSL Gateway with 2 Phone Ports DNS Proxy If the PCs on your network are enabled with DNS, enable the DNS Proxy to foward the DNS entries. Optional Settings Some of these settings may be required by your ISP. Verify with your ISP before making any changes. Host Name/Domain Name.

  • Page 33: Figure 4-10: Basic Setup Tab - Network Setup

    Wireless-G ADSL Gateway with 2 Phone Ports AutoDetect LAN DHCP Server. If you want the Gateway to automatically detect a DHCP server on the local network, then select the Enable radio button. (When this feature is enabled, the DHCP Relay radio button for the Local DHCP Server setting will be unavailable.) Otherwise, keep the default, Disable.

  • Page 34: Figure 4-11: Setup Tab - Ddns (Dyndns.org)

    Wireless-G ADSL Gateway with 2 Phone Ports The DDNS Tab The Gateway offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Gateway.

  • Page 35: Figure 4-13: Setup Tab - Advanced Routing

    The Gateway, using the RIP protocol, determines the network packets’ route based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other Gateways on the network. To enable RIP, click Enabled. To disable RIP, click Disabled.

  • Page 36: Figure 4-14: Routing Table

    Wireless-G ADSL Gateway with 2 Phone Ports • Hop Count. Hop Count is the number of hops to each node until the destination is reached (16 hops maximum). Enter the Hop Count in the field. • Show Routing Table. Click the Show Routing Table button to open a screen displaying how data is routed through your network.

  • Page 37: The Wireless Tab

    The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character. Linksys recommends that you change the default SSID (linksys) to a unique name of your choice.

  • Page 38: Figure 4-17: Wireless Tab - Wireless Security (Wpa Pre-Shared Key)

    Wireless-G ADSL Gateway with 2 Phone Ports Wireless Security Tab The Gateway’s wireless security settings configure the security of your wireless network. There are three wireless security mode options supported by the Gateway: WPA Pre-Shared Key, WPA RADIUS, and WEP. (WPA stands for Wi-Fi Protected Access, which is a security standard stronger than WEP encryption.

  • Page 39: Figure 4-19: Wireless Tab - Wireless Security (Wpa2 Professional)

    Wireless-G ADSL Gateway with 2 Phone Ports WPA2 Professional. WPA2 gives you two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, AES, or TKIP + AES. Enter a WPA2 Shared Key of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Router how often it should change the encryption keys.

  • Page 40: Figure 4-21: Wireless Tab - Wireless Security (Wep)

    WEP keys. It is case-sensitive and should not be longer than 32 alphanumeric characters. (This Passphrase function is compatible with Linksys wireless products only and cannot be used with Windows XP Zero Configuration. If you want to communicate with non-Linksys wireless products or Windows XP Zero Configuration, make a note of the WEP key generated in the Key 1 field, and enter it manually in the wireless client.) After you enter the Passphrase, click the Generate button to create WEP...

  • Page 41: Figure 4-22: Wireless Tab - Wireless Network Access

    Wireless-G ADSL Gateway with 2 Phone Ports Wireless Access Tab Wireless Network Access Selecting Allow All, from the Wireless Access tab, allows access to the wireless network from any PC. To restrict access to the network, select Restrict Access, then select Prevent to prevent access or Permit only to permit access.

  • Page 42: Figure 4-24: Wireless Tab - Advanced Wireless Settings

    Wireless-G ADSL Gateway with 2 Phone Ports Advanced Wireless Settings Tab Advanced Wireless On this screen you can access the Advanced Wireless features, including Authentication Type, Basic Data Rates, Control Tx Rates, Beacon Interval, DTIM Interval, RTS Threshold, and Fragmentation Threshold. Authentication Type.

  • Page 43: The Security Tab

    Wireless-G ADSL Gateway with 2 Phone Ports The Security Tab Firewall When you click the Security tab, you will see the Firewall screen. This screen contains Filters and the option to Block WAN Requests. Filters block specific Internet data types and block anonymous Internet requests. To add Firewall Protection, click Enable.

  • Page 44: Figure 4-26: Security Tab - Vpn

    Wireless-G ADSL Gateway with 2 Phone Ports Virtual Private Networking (VPN) is a security measure that basically creates a secure connection between two remote locations. The VPN screen allows you to configure your VPN settings to make your network more secure. VPN Passthrough IPSec Passthrough.

  • Page 45: Figure 4-28: Auto Key Management

    Wireless-G ADSL Gateway with 2 Phone Ports Remote Security Gateway. The Remote Security Gateway is the VPN device, such as a second VPN Gateway, on the remote end of the VPN tunnel. Enter the IP Address or Domain of the VPN device at the other end of the tunnel. The remote VPN device can be another VPN Gateway, a VPN Server, or a computer with VPN client software that supports IPSec.

  • Page 46: Figure 4-30: System Log

    Wireless-G ADSL Gateway with 2 Phone Ports Click the Connect button to connect your VPN tunnel. Click View Logs to view system, UPnP, VPN, firewall, access, or all logs.Click the Advanced Settings button and the Advanced IPSec VPN Tunnel Setup screen will appear.
  • Page 47 Wireless-G ADSL Gateway with 2 Phone Ports Group. There are two Diffie-Hellman Groups to choose from: 768-bit and 1024-bit. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption. Key Life Time. The number in the Key Lifetime field, shows the amount of seconds the key will be used until a re- key negotiation is completed.

  • Page 48: The Access Restrictions Tab

    Linksys Parental Control feature, click the Disable radio button. Sign Up for Parental Control Service. To sign up for a free trial of the Linksys Parental Control Service, click this link. You will be automatically taken to a website where you can create your account. For more information, refer to Chapter 5: Using the Linksys Parental Control Service.

  • Page 49: Figure 4-33: Access Restrictions Tab - Internet Access

    Wireless-G ADSL Gateway with 2 Phone Ports Internet Access The Internet Access tab allows you to block or allow specific kinds of Internet usage. You can set up Internet access policies for specific computers and set up filters by using network port numbers. Internet Access Policy.

  • Page 50: Figure 4-35: List Of Pcs

    Wireless-G ADSL Gateway with 2 Phone Ports 4. If you wish to Deny or Allow Internet access for those computers you listed on the List of PCs screen, click the option. 5. You can filter access to various services accessed over the Internet, such as FTP or Telnet, by selecting a service from the drop-down menus next to Blocked Services.

  • Page 51: The Applications And Gaming Tab

    Wireless-G ADSL Gateway with 2 Phone Ports The Applications and Gaming Tab Single Port Forwarding PVC Connection Select PVC stands for "Permanent Virtual Circuit". It is a virtual circuit link between two nodes for ATM (Asynchronous Transfer Mode) network. Each PVC functions as a separate Internet connection. You may set up to eight PVCs on the Gateway.

  • Page 52: Figure 4-38: Applications And Gaming Tab - Port Range Forwarding

    Wireless-G ADSL Gateway with 2 Phone Ports Port Range Forwarding The Port Forwarding screen sets up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming.

  • Page 53: Figure 4-40: Applications And Gaming Tab - Dmz

    Wireless-G ADSL Gateway with 2 Phone Ports The DMZ screen allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming and videoconferencing through DMZ Hosting. DMZ hosting forwards all the ports for one computer at the same time, which differs from Port Range Forwarding, which can only forward a maximum of 10 ranges of ports.

  • Page 54: Figure 4-42: Applications And Gaming Tab - Qos Function

    Wireless-G ADSL Gateway with 2 Phone Ports Edit list of QoS Settings In addition to PVC-based QoS, you can assign different levels of priority to different packets based on information in the packets. To do this, click the Edit list of QoS Settings button. The QoS Function screen will appear. This screen will let you set the priority for packets selected by any of the following criteria, alone or in combination: •...

  • Page 55: The Administration Tab

    Wireless-G ADSL Gateway with 2 Phone Ports The Administration Tab Management The Management screen allows you to change the Gateway’s access settings as well as configure the SNMP (Simple Network Management Protocol) and UPnP (Universal Plug and Play) features. Gateway Access Local Gateway Access.
  • Page 56 Wireless-G ADSL Gateway with 2 Phone Ports SNMP SNMP is a popular network monitoring and management protocol. To enable SNMP, click Enabled. To disable SNMP, click Disabled. If enabled, then specify the IP address(es) allowed to have SNMP access. Select All to allow all IP addresses with no restrictions, IP address to specify a single IP address, or IP range to specify a range of IP addresses.
  • Page 57 Wireless-G ADSL Gateway with 2 Phone Ports IGMP-Proxy If your multimedia application or device is not working properly behind the Gateway, then you can enable IGMPProxy to allow multicast traffic through the Gateway. PVC Available. The Gateway uses one Permanent Virtual Circuit (PVC) connection, so select the number 1 from the drop-down menu.

  • Page 58: Figure 4-44: Administration Tab - Reporting

    Wireless-G ADSL Gateway with 2 Phone Ports Reporting The Reporting tab provides you with a log of all incoming and outgoing URLs or IP addresses for your Internet connection. It also provides logs for VPN and firewall events. Log. To enable log reporting, click Enabled. Logviewer IP Address.

  • Page 59: Figure 4-46: Administration Tab - Diagnostics

    Wireless-G ADSL Gateway with 2 Phone Ports Diagnostics Ping Test Ping Test Parameters Ping Target IP. Enter the IP Address that you want to ping in the field. This can be either a local IP or an Internet IP address. Ping Size.

  • Page 60: Figure 4-49: Administration Tab - Firmware Upgrade

    The ADSL Gateway allows you to upgrade firmware for the Gateway’s network functions. To upgrade the Gateway’s firmware: 1. Click the Browse button to find the firmware upgrade file that you downloaded from the Linksys website and then extracted. 2. Double-click the firmware file you downloaded and extracted. Click the Upgrade button, and follow the instructions there.

  • Page 61: The Status Tab

    Wireless-G ADSL Gateway with 2 Phone Ports The Status Tab Gateway This screen displays information about your Gateway and its Internet Connections. Gateway Information Gateway Information displays the Software Version, MAC Address, and Current Time. Internet Connections The Internet Connections will be displayed after selecting the Internet connection number from the drop-down menu.

  • Page 62: Figure 4-53: Status Tab - Wireless

    Wireless-G ADSL Gateway with 2 Phone Ports Wireless The Wireless network information that is displayed is the Wireless Firmware Version, MAC Address, Mode, SSID, DHCP Server, Channel, and Encryption Function. Click the Wireless Clients Connected button to view the wireless clients connected to the Gateway. Click the Refresh button if you want to Refresh your screen.

  • Page 63: Figure 4-55: Status Tab - Voice

    Wireless-G ADSL Gateway with 2 Phone Ports Voice The Voice screen displays Information, Line 1 Status, and Line 2 Status status. Click the Refresh button if you want to Refresh your screen. Figure 4-55: Status Tab - Voice Chapter 4: Configuring the Gateway The Status Tab...

  • Page 64: The Voice Tab

    Wireless-G ADSL Gateway with 2 Phone Ports The Voice Tab Voice Authentication The Voice Authentication feature is used by your ISP for configuring the Gateway’s voice features. Login to these features is accomplished on this screen. Figure 4-56: Voice Tab - Voice Authentication Chapter 4: Configuring the Gateway The Voice Tab...

  • Page 65: Chapter 5: Using The Linksys Parental Control Service

    Chapter 5: Using the Linksys Parental Control Service Overview This chapter will describe the Linksys Parental Control Service*, as well as explain how to sign up for the Service, manage your account, and use the Internet when the Service is actively controlling Internet traffic and messages.

  • Page 66: Signing Up For The Linksys Parental Control Service

    Wireless-G ADSL Gateway with 2 Phone Ports Signing up for the Linksys Parental Control Service There are two ways to access the website you will use to sign up for your Linksys Parental Controls account. Setup Wizard At the end of the Setup Wizard, you will see the Safe Surfing screen. Click the Linksys Parental Control Service button to sign up for a free trial service.

  • Page 67: Signing Up For The Linksys Parental Control Service

    To sign up for your Linksys Parental Controls account, you will need an active Internet connection. Then follow these instructions: 1. After you click Linksys Parental Control Service from the Setup Wizard or the Sign Up for Parental Control Service button from the Web-based Utility, the Linksys Service Agreement screen will appear. You must scroll down the entire agreement before you can accept the Agreement.

  • Page 68: Figure 5-5: Purchase Service

    In the Full Name on Card field, enter the complete name that appears on the credit card you are using. Then click the Finish button. To cancel your sign-up, click the Cancel button. Chapter 5: Using the Linksys Parental Control Service Signing up for the Linksys Parental Control Service Figure 5-5: Purchase Service...

  • Page 69: Figure 5-6: Connecting To The Parental Control Service

    If you want to create user profiles for your family members now, click the Create Profiles button. For additional instructions, proceed to step 4 of the “Managing Linksys Parental Controls” section. If you want to access the Internet immediately, click the Sign in and Surf button. For more information, go to the “Using the Linksys Parental Control Service”...

  • Page 70: Managing Linksys Parental Controls

    Wireless-G ADSL Gateway with 2 Phone Ports Managing Linksys Parental Controls To manage your Linksys Parental Controls account, you will need an active Internet connection. Then follow these instructions: 1. Open the Router’s Web-based Utility. 2. Click the Access Restrictions tab.

  • Page 71: Support Center

    Subscribe to Service Click Subscribe to Service to sign up for your Parental Controls subscription before your free trial period expires. The Purchase Linksys Parental Control Service screen will appear. Follow these instructions: 1. Select a subscription option. Figure 5-9: Support Center 2.

  • Page 72: Figure 5-11: Update Contact Information

    If you want to cancel your Parental Control Service account, click this link. Click the Proceed button on the following screen to cancel your Parental Control Service. Figure 5-12: Cancel Your Parental Control Account Chapter 5: Using the Linksys Parental Control Service Support Center...

  • Page 73: Activity Reports

    Delete button. To save all reports to your computer, click the Download button. The reports will be saved as a tab-delimited text file called PcReport. To scroll through the entries, click First, Figure 5-14: Types of Reports Previous, or Next. Chapter 5: Using the Linksys Parental Control Service Activity Reports...

  • Page 74: Figure 5-15: Web Report

    Delete button. To save all reports to your computer, click the Download button. The reports will be saved as a tab-delimited text file called PcReport. To scroll through the entries, click First, Previous, or Next. Figure 5-15: Web Report Chapter 5: Using the Linksys Parental Control Service Activity Reports...

  • Page 75: Family Settings

    I’m Done. When you have finished making changes to your Parental Controls account, click the I’m Done button to exit the Parental Controls Billing & Support Center website. Chapter 5: Using the Linksys Parental Control Service Family Settings Figure 5-16: Family Settings...

  • Page 76: Figure 5-18: All Settings

    Instant Messaging. Select one of the following: No Instant-Messaging/Chat reporting, Report only Blocked Instant-Messaging/Chat activity, or Report all Instant-Messaging/Chat activity. Click the Save button to save your changes, or click the Cancel button to cancel your changes. Figure 5-19: Online Reporting Chapter 5: Using the Linksys Parental Control Service Family Settings...

  • Page 77: Figure 5-20: Maturity Level

    Click the Save button to save your changes, or click the Cancel button to cancel your changes. After you select and save the Maturity Level setting, then you can customize the other settings, such as Time, Web Browsing, E- mail, and Instant-Messaging Restrictions. Chapter 5: Using the Linksys Parental Control Service Family Settings Figure 5-20: Maturity Level...

  • Page 78: Figure 5-21: Time Restrictions

    To cancel your changes, click Undo Changes. Click the Cancel button to cancel your changes and return to the previous screen. Click the Save button to save your changes. Figure 5-21: Time Restrictions Chapter 5: Using the Linksys Parental Control Service Family Settings...

  • Page 79: Figure 5-22: Web Browsing Restrictions

    To cancel your changes, click Undo Changes. Click the Cancel button to cancel your changes and return to the previous screen. Click the Save button to save your changes. Chapter 5: Using the Linksys Parental Control Service Family Settings Figure 5-22: Web Browsing Restrictions...

  • Page 80: Figure 5-24: Blocked & Allowed Web Sites

    To remove a blocked Web site, select the name of the Web site in the Blocked Web Sites field, and then click the Remove button. Click the Cancel button to cancel your changes. Click the Save button to save your changes. Chapter 5: Using the Linksys Parental Control Service Family Settings Figure 5-24: Blocked & Allowed Web Sites...

  • Page 81: Figure 5-25: E-Mail Restrictions

    Click the Cancel button to cancel your changes. Click the Save button to save your changes. On the E-mail Restrictions screen, click the Cancel button to cancel your changes. Click the Save button to save your changes. Chapter 5: Using the Linksys Parental Control Service Family Settings Figure 5-25: E-mail Restrictions...

  • Page 82: Figure 5-27: Instant-Messaging Restrictions

    Click the Cancel button to cancel your changes. Click the Save button to save your changes. Delete To delete a family member, click Delete. Chapter 5: Using the Linksys Parental Control Service Family Settings Figure 5-27: Instant-Messaging Restrictions Figure 5-28: Password...

  • Page 83: Suggest A Rating

    Submit button. Click the Cancel button to cancel your changes. Using the Parental Control Service When the Linksys Parental Control Service is actively managing your family’s Internet activities, you must sign in with the Linksys Parental Control Service before you can access the Internet. Follow these instructions: 1.

  • Page 84: Figure 5-31: Welcome To Parental Controls

    Wireless-G ADSL Gateway with 2 Phone Ports 3. In your web browser, a Welcome to Parental Controls screen will appear. Log into the Linksys Parental Control Service. Select your name from the SIGN IN drop-down menu, and enter your password. Select when you want to be automatically logged out.

  • Page 85: Figure 5-34: Pop-Up Screen (Sign Out)

    If you have exited the tray icon and want to use it, click the Start button, Programs, Parental Controls, and PCT Helper. The tray icon will re-appear. Chapter 5: Using the Linksys Parental Control Service Using the Parental Control Service...

  • Page 86: Appendix A: Troubleshooting

    Provided are possible solutions to problems that may occur during the installation and operation of the Gateway. Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Linksys international website at www.linksys.com/international.
  • Page 87 Wireless-G ADSL Gateway with 2 Phone Ports 7. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.
  • Page 88 Wireless-G ADSL Gateway with 2 Phone Ports For Windows 98 and Me: • Click Start and Run. In the Open field, type in command. Press the Enter key or click the OK button. For Windows NT, 2000, and XP: • Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key.
  • Page 89 Refer to “Problem #7, I need to set up online game hosting or use other Internet applications” for details. • Check the Linksys international website for more information at www.linksys.com/international. 6. I need to set up a server behind my Gateway and make it available to the public.
  • Page 90 Wireless-G ADSL Gateway with 2 Phone Ports 6. Check the Enable option for the port services you want to use. Consider the example below: Customized Application External Port Web server 80 to 80 FTP server 21 to 21 SMTP (outgoing) 25 to 25 POP3 (incoming) 110 to 110...
  • Page 91 Wireless-G ADSL Gateway with 2 Phone Ports If you are having difficulties getting any Internet game, server, or application to function properly, consider exposing one computer to the Internet using DeMilitarized Zone (DMZ) hosting. This option is available when an application requires too many ports or when you are not sure which port services to use. Make sure you disable all the forwarding entries if you want to successfully use DMZ hosting, since forwarding has priority over DMZ hosting.
  • Page 92 12. I need to upgrade the firmware. In order to upgrade the firmware with the latest features, you need to go to the Linksys international website and download the latest firmware at www.linksys.com/international. • Follow these steps: 1.
  • Page 93 Wireless-G ADSL Gateway with 2 Phone Ports 1. To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of the Gateway. 2. Enter the username and password, if asked. (The default username and password is admin.) 3.

  • Page 94: Frequently Asked Questions

    Does the Gateway support any operating system other than Windows 98SE, Windows Millennium, Windows 2000, or Windows XP? Yes, but Linksys does not, at this time, provide technical support for setup, configuration or troubleshooting of any non-Windows operating systems. Does the Gateway support ICQ send file?
  • Page 95 How will I be notified of new Gateway firmware upgrades? All Linksys firmware upgrades are posted on the Linksys international website at www.linksys.com/international, where they can be downloaded for free. To upgrade the Gateway’s firmware, use the Administration tab of the...
  • Page 96 Wireless-G ADSL Gateway with 2 Phone Ports Gateway’s web-based utility. If the Gateway’s Internet connection is working well, there is no need to download a newer firmware version, unless that version contains new features that you would like to use. Will the Gateway function in a Macintosh environment? Yes, but the Gateway’s setup pages are accessible only through Internet Explorer 4.0 or Netscape Navigator 4.0 or higher for Macintosh.
  • Page 97 Wireless-G ADSL Gateway with 2 Phone Ports How can I check whether I have static or DHCP IP Addresses? Consult your ISP to obtain this information. How do I get mIRC to work with the Gateway? Under the Port Forwarding tab, set port forwarding to 113 for the computer on which you are using mIRC. Can the Gateway act as my DHCP server? Yes.
  • Page 98 Wireless-G ADSL Gateway with 2 Phone Ports To achieve true seamless connectivity, the wireless network must incorporate a number of different functions. Each node and access point, for example, must always acknowledge receipt of each message. Each node must maintain contact with the wireless network even when not actually transmitting data. Achieving these functions simultaneously requires a dynamic RF networking technology that links access points and nodes.
  • Page 99 WEP keys and levels (64 or 128) are being used on all nodes of your wireless network. How many channels/frequencies are available with the Gateway? There are eleven available channels, ranging from 1 to 11 (in North America). If your questions are not addressed here, refer to the Linksys international website, www.linksys.com/international. Appendix A: Troubleshooting...

  • Page 100: Appendix B: Wireless Security

    Wireless-G ADSL Gateway with 2 Phone Ports Appendix B: Wireless Security Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of Linksys products provide several network security features, but they require specific action on your part for implementation.
  • Page 101 This includes hackers. So, don’t broadcast the SSID. Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is “linksys”.) Hackers know these defaults and can check these against your network. Change your SSID to something unique and not something related to your company or the networking products you use.
  • Page 102 These security recommendations should help keep your mind at ease while you are enjoying the most flexible and convenient technology Linksys has to offer. Appendix B: Security Threats Facing Wireless Networks...

  • Page 103: Appendix C: Configuring Ipsec Between A Windows 2000 Or Xp Computer And The Gateway

    Wireless-G ADSL Gateway with 2 Phone Ports Appendix C: Configuring IPSec between a Windows 2000 or XP Computer and the Gateway Introduction This document demonstrates how to establish a secure IPSec tunnel using preshared keys to join a private network inside the Gateway and a Windows 2000 or XP computer. You can find detailed information on configuring the Windows 2000 server at the Microsoft website: Microsoft KB Q252735 - How to Configure IPSec Tunneling in Windows 2000 http://support.microsoft.com/support/kb/articles/Q252/7/35.asp...

  • Page 104: How To Establish A Secure Ipsec Tunnel

    Wireless-G ADSL Gateway with 2 Phone Ports How to Establish a Secure IPSec Tunnel Step 1: Create an IPSec Policy 1. Click the Start button, select Run, and type secpol.msc in the Open field. The Local Security Setting screen will appear. 2.

  • Page 105: Figure C-5: Filters Properties

    Wireless-G ADSL Gateway with 2 Phone Ports 3. The Filters Properties screen will appear. Select the Addressing tab. In the Source address field, select My IP Address. In the Destination address field, select A specific IP Subnet, and fill in the IP Address: 192.168.1.0 and Subnet mask: 255.255.255.0.

  • Page 106: Figure C-7: Ip Filter List

    Wireless-G ADSL Gateway with 2 Phone Ports 7. The IP Filter List screen should appear. Enter an appropriate name, such as Router->win for the filter list, and de-select the Use Add Wizard check box. Click the Add button. 8. The Filters Properties screen will appear. Select the Addressing tab. In the Source address field, select A specific IP Subnet, and enter the IP Address: 192.168.1.0 and Subnet mask: 255.255.255.0.

  • Page 107: Step 3: Configure Individual Tunnel Rules

    Wireless-G ADSL Gateway with 2 Phone Ports Step 3: Configure Individual Tunnel Rules Tunnel 1: win->Router 1. From the IP Filter List tab, click the filter list win->Router. 2. Click the Filter Action tab, and click the filter action Require Security radio button. Then, click the Edit button.

  • Page 108: Figure C-13: Authentication Methods

    Wireless-G ADSL Gateway with 2 Phone Ports 4. Select the Authentication Methods tab, and click the Edit button. 5. Change the authentication method to Use this string to protect the key exchange (preshared key), and enter the preshared key string, such as XYZ12345. Click the OK button. 6.

  • Page 109: Figure C-16: Tunnel Setting Tab

    Wireless-G ADSL Gateway with 2 Phone Ports 7. Select the Tunnel Setting tab, and click The tunnel endpoint is specified by this IP Address radio button. Then, enter the WAN IP Address. 8. Select the Connection Type tab, and click All network connections. Then, click the OK or Close button to finish this rule.

  • Page 110: Figure C-19: Ip Filter List Tab

    Wireless-G ADSL Gateway with 2 Phone Ports 10. Go to the IP Filter List tab, and click the filter list Router->win. 11. Click the Filter Action tab, and select the filter action Require Security. Then, click the Edit button. From the Security Methods tab, verify that the Negotiate security option is enabled, and deselect the Accept unsecured communication, but always respond using IPSec check box.

  • Page 111: Figure C-22: Preshared Key

    Wireless-G ADSL Gateway with 2 Phone Ports 13. Change the authentication method to Use this string to protect the key exchange (preshared key), and enter the preshared key string, such as XYZ12345, as shown in the example. (This is a sample key string. Yours should be a key that is unique but easy to remember.) Then click the OK button.

  • Page 112: Figure C-25: Connection Type

    Wireless-G ADSL Gateway with 2 Phone Ports 16. Click the Connection Type tab, and select All network connections. Then click the OK or Close button to finish. Figure C-25: Connection Type 17. From the Rules tab, click the OK or Close button to return to the secpol screen. Figure C-26: Rules Step 4: Assign New IPSec Policy In the IP Security Policies on Local Computer window, right-click the policy named to_Router, and click Assign.

  • Page 113: Step 5: Create A Tunnel Through The Web-Based Utility

    Wireless-G ADSL Gateway with 2 Phone Ports Step 5: Create a Tunnel Through the Web-Based Utility 1. Open your web browser, and enter 192.168.1.1 in the Address field. Press the Enter key. 2. When the User name and Password field appears, enter the default user name and password admin. Press the Enter key.

  • Page 114: Figure D-1: Ip Configuration Screen

    Wireless-G ADSL Gateway with 2 Phone Ports Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter This section describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC filtering feature of the Gateway.

  • Page 115: Figure D-3: Mac Address/Physical Address

    Wireless-G ADSL Gateway with 2 Phone Ports Windows 2000 or XP Instructions 1. Click Start and Run. In the Open field, enter cmd. Press the Enter key or click the OK button. Note: The MAC address is also called the Physical Address. 2.

  • Page 116: Figure E-1: Upgrade Firmware

    Upgrade button, and follow the instructions there. Upgrade from LAN 1. Click the Browse button to find the firmware upgrade file that you downloaded from the Linksys website and then extracted. 2. Double-click the firmware file you downloaded and extracted. Click the Upgrade button, and follow the instructions there.

  • Page 117: Appendix F: Windows Help

    Wireless-G ADSL Gateway with 2 Phone Ports Appendix F: Windows Help All wireless products require Microsoft Windows. Windows is the most used operating system in the world and comes with many features that help make networking easier. These features can be accessed through Windows Help and are described in this appendix.

  • Page 118: Appendix G: Glossary

    This glossary contains some basic networking terms you may come across when using this product. For more advanced terms, see the complete Linksys glossary at http://www.linksys.com/glossary. Access Point - A device that allows wireless-equipped computers and other devices to communicate with a wired network.
  • Page 119 Wireless-G ADSL Gateway with 2 Phone Ports DMZ (Demilitarized Zone) - Removes firewall protection from one PC, allowing it to be "seen" from the Internet. DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP addresses.
  • Page 120 Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products. Ping (Packet INternet Groper) - An Internet utility used to determine whether a particular IP address is online.
  • Page 121 Wireless-G ADSL Gateway with 2 Phone Ports Router - A networking device that connects multiple networks together. Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services. SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet. SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol.
  • Page 122 Wireless-G ADSL Gateway with 2 Phone Ports Upgrade - To replace existing software or firmware with a newer version. Upload - To transmit a file over a network. URL (Uniform Resource Locator) - The address of a file located on the Internet. VPN (Virtual Private Network) - A security measure to protect data as it leaves one network and goes to another over the Internet.

  • Page 123: Appendix H: Specifications

    Wireless-G ADSL Gateway with 2 Phone Ports Appendix H: Specifications Standards IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3, G.992.1 (G.dmt), G.992.2 (G.lite), ITU G.992.3, ITU G.992.5, ANSI T1.413i2, WAG54G-E1: Annex-B, WAG54G-DE: UR-2 Ports Power, LINE (ADSL), Ethernet (1-4), Phone (1-2) Buttons One Reset Button, One On/Off Switch Cabling Type...
  • Page 124 Wireless-G ADSL Gateway with 2 Phone Ports Storage Temp. -20ºC to 70ºC Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing Appendix H: Specifications...

  • Page 125: Appendix I: Warranty Information

    Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates.

  • Page 126: Appendix J: Regulatory Information

    Canadian regulations. EC DECLARATION OF CONFORMITY (EUROPE) Linksys declares that this product conforms to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC: EN 301 489-1, 301 489-17 General EMC requirements for Radio equipment.
  • Page 127 Linksys vakuuttaa täten että dieses produkt tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden ehtojen mukainen. Linksys Group déclare que le produit est conforme aux conditions essentielles et aux dispositions relatives à la directive 1999/5/EC.

  • Page 128: Appendix K: Contact Information

    Can't find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at: Or fax your request in to: If you experience problems with any Linksys product,...
