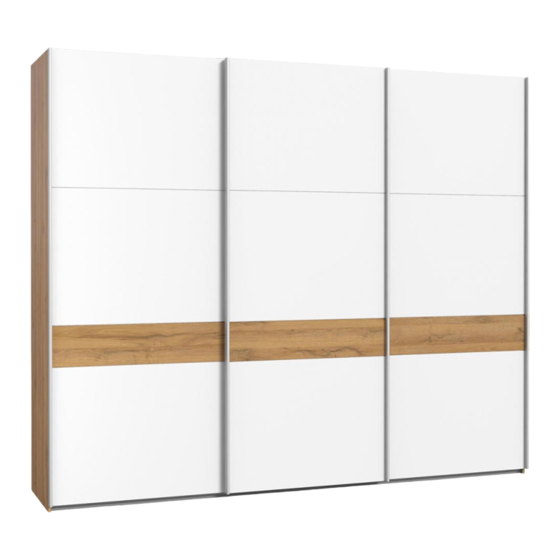

RIBS13411
120 MIN
_
+
EN- Before starting, refer to the assembling advice in annex / DE- Vor die montage, bitte beiliegende anweisungen folgen / FR- Avant de commencer, se
reporter aux conseils de montage en annexe / ES-Antes de comenzar referirse a las instrucciones de instalación / PL - Przed rozpoczęciem zapoznać się z
instrukcją montażu / RU- Перед началом обратитесь к инструкции по установке / CZ- Před zahájením naleznete v montážním návodu / SK- Pred začatím
nájdete v montážnom návode / HU- Megkezdése előtt olvassa el a telepítési utasításokat / BG-Преди да започнете се отнасят към инструкциите за
инсталиране / TR- Kuruluma baslamadan once, montaj talimatnamesini sirasiyla takip edin. / P- Antes de começar a consultar as instruções de instalação /
SLO- Pred začetkom glejte navodila za namestitev / NL- Voordat u begint Zie de installatie-instructies / SRB- Пре почетка погледајте упутства за
инсталацију / RO-Înainte de a începe să consultați instrucțiunile de instalare / HR- Prije početka pogledajte upute za instalaciju / S- Innan du börjar se Instal-
lationsanvisningen / I- Avanti di comminciare, riportate agli consigli di montaggio / UKR- Перед початком зверніться до інструкції з установки / LV- Pirms
sākt montāžu, iepazīties ar instrukciju / LT- Prieš pradedant kreiptis į montavimo instrukcija / EST- Enne käivitamist vaadake paigaldusjuhiseid
2018.07.12
2105mm

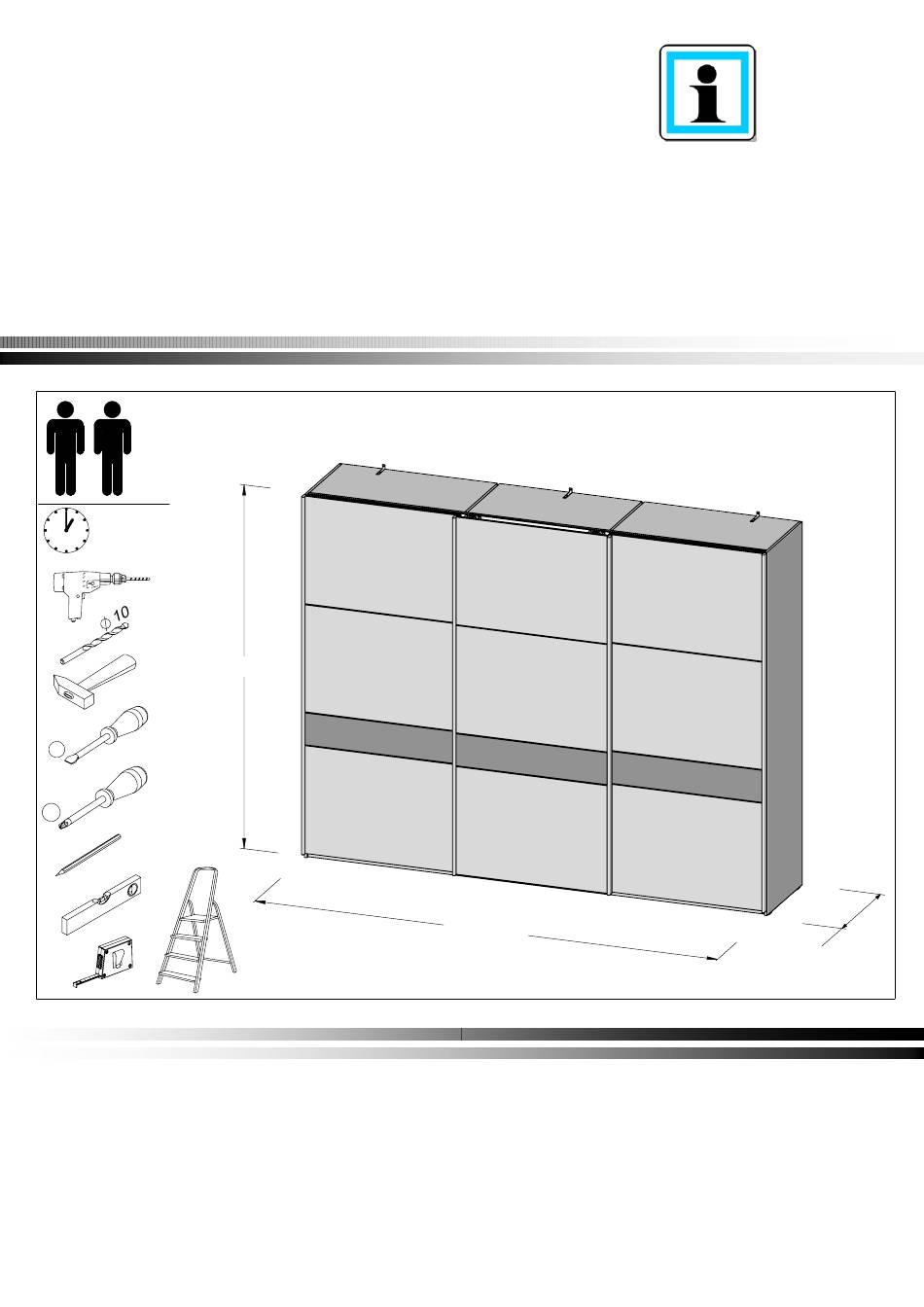

Assembling instruction / Montageanleitung / Notice de montage /
Montaje de instrucción / Instrukcja montażu / Сборка инструкция /
Montáž instrukce /
Montáž inštrukcie / Szerelési utasítás
Сглобяване инструкция / Kurulum Talimatları / Montagem de
instrução / Sestavljanje navodila / Montage instructie / Склапање
инструкцију / Asamblarea de instrucțiuni / Sastavljanje upute /
Montering instruktion / Istruzioni di montaggio / Збірка інструкція /
Montāžas instrukcija / Montavimo instrukcija / Paigaldusjuhend
2697mm
612mm
1/59

Advertisement

loading
Need help?

Need help?

Do you have a question about the RIBS13411 and is the answer not in the manual?

Questions and answers

Summary of Contents for Forte RIBS13411

  • Page 1 RIBS13411 Assembling instruction / Montageanleitung / Notice de montage / Montaje de instrucción / Instrukcja montażu / Сборка инструкция / Montáž instrukce / Montáž inštrukcie / Szerelési utasítás Сглобяване инструкция / Kurulum Talimatları / Montagem de instrução / Sestavljanje navodila / Montage instructie / Склапање...
  • Page 2 021027 327833 324587 020870 133212 328155 328157 328155 328157 134096 133213 133212 021027 328156 327832 534023 534024 533573 632014 532765 328156 632015 632016 534023 632014 534024 632014 50901 632015 632016 50901 632014 50901 632014 632016 2/59...
  • Page 3 Service • Assistenza • Dienstverlening • Serwis Servis • Szerviz • Сервисная служба Name • Nom • Nome • Naam • Nazwa • Jméno • Názov • Név • Denumire • İsim • Название Nr. • No. • N° • Номер • Č • Sz Typ •...
  • Page 4 S34722 S3eeee-N S30129 S30106 Ø3,5x25 Ø3.5x15 S33127 S31298-14 S31298 S30111 Ø4x45 Ø4x14 Ø4x15 Ø6,3x13 S34702 S30551 S32892 S30577 S33396 S38390 S36628 Ø10x50, Ø5x60 S30805 S31347-N L - 2030 S34802 SF32551 L=820 L = 896 S38425 S38650 L - 2068 L - 2068 S36818-O S36819 L - 2668...
  • Page 5 S38070 S30129 S34701 S30102 S36165 Ø3,5x25 Ø4x14 Ø6,3x13 S36331 S36333 S36335 S36332 S36334 S36336 5/59...
  • Page 6 S30106 133213 S33396 S30129 S34722 S36165 S34702 30mm 6/59...
  • Page 7 S3eeee-N 328156 180° S33127 328156 534023 S33127 S30551 534024 7/59...
  • Page 8 133213 328156 S30577 8/59...
  • Page 9 S31347-N S30111 III. 021027 9/59...
  • Page 10 55mm S30805 30mm 133212 S34702 S33396 S30106 S34722 133212 10/59...
  • Page 11 133212 S31347-N S30111 11/59...
  • Page 12 328155 S3eeee-N 12/59...
  • Page 13 328155 S31347-N S30111 13/59...
  • Page 14 S34722 S36165 S30129 S33396 S30106 14/59...
  • Page 15 S3eeee-N 327832 S33127 327832 532765 S33127 S30551 533573 15/59...
  • Page 16 327832 S30577 16/59...
  • Page 17 S31347-N S30111 III. 020870 17/59...
  • Page 18 S31347-N 133212 S30111 18/59...
  • Page 19 324587 S3eeee-N 19/59...
  • Page 20 324587 S31347-N S30111 20/59...
  • Page 21 S34722 S36165 S30129 S33396 S30106 21/59...
  • Page 22 328156 S30577 22/59...
  • Page 23 S31347-N S30111 III. 021027 23/59...
  • Page 24 S30129 S36165 S30106 S33396 134096 S34722 S34702 30mm 24/59...
  • Page 25 134096 S31347-N S30111 25/59...
  • Page 26 328155 S31347-N S30111 26/59...
  • Page 27 S3eeee-N 328157 S3eeee-N 327833 27/59...
  • Page 28 328157 327833 328157 S31347-N S30111 28/59...
  • Page 29 S30106 29/59...
  • Page 30 - SRB – Pre vešanja nameštaja, ili pričvršćivanja ga do zida (radi osiguranja od prevrtanja), treba unapred proveriti vrstu i izdržljivost zida. Treba birati odgovarajuće eksere i vijke prema određenoj vrsti zida. U slučaju sumnje kontaktirati se sa stručnjakom. Montažu mora izvršiti kompetentno lico. NAPOMENA!!! Ukoliko uz proizvod priloženi su rastezni ekseri sa vijcima, to su oni namenjeni samo i...
