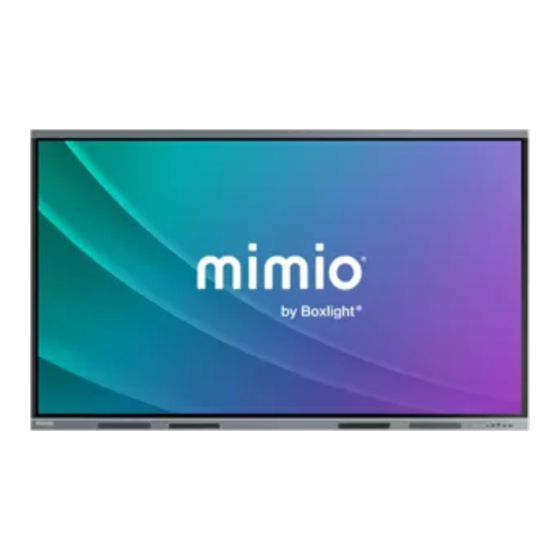

MimioPro 4 Interactive Display

Technical User Manual

Note: All the pictures in this manual are for reference only, subject to

our available products.

www.boxlight.com

©Boxlight 2022

Table of Contents

Need help?

Do you have a question about the MimioPro 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOXLIGHT MimioPro 4

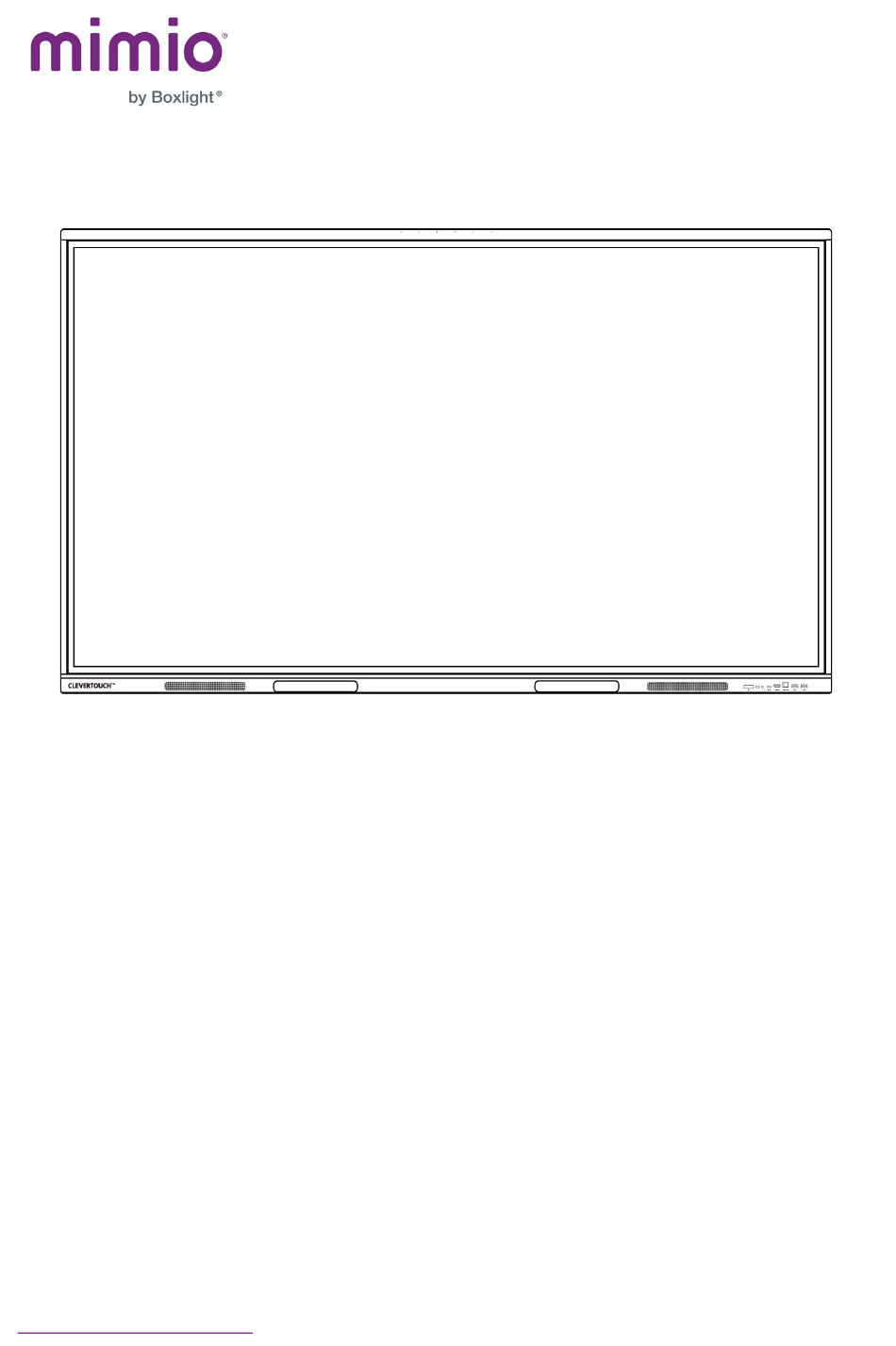

Page 1 MimioPro 4 Interactive Display Technical User Manual Note: All the pictures in this manual are for reference only, subject to our available products. www.boxlight.com ©Boxlight 2022...
Page 2: Table Of Contents
Contents Safety Warning ................... 1 Control Panel ..................6 Connection and Settings ..............17 Simple Troubleshooting..............22 Maintenance ..................27 www.boxlight.com ©Boxlight 2022...
Page 3: Safety Warning
Do not place the unit on an unstable cart, stand, tripod, bracket, • table, or shelf. Do not put any liquid near or on the unit, make sure to not spill • any liquid inside the unit. www.boxlight.com ©Boxlight 2022...
Page 4 Never use any other hard or sharp object to replace the touch • pen. To ensure the best display quality and extend the life of the • product, do not display overly bright images for extended periods of time. www.boxlight.com ©Boxlight 2022...
Page 5 • Ventilation Please put the unit in a well-ventilated place so the heating can • be released easily. Ensure that the unit has enough space for ventilation. Space • requirement: left, right and back >10cm, top> 20cm. www.boxlight.com ©Boxlight 2022...
Page 6 Caution risk of fire or explosion if the battery is replaced by an • incorrect type. Notes for Cleaning There are vents on back cover, so do not use any liquid or spray directly during cleaning. www.boxlight.com ©Boxlight 2022...
Page 7 Power Switch Status “I” means power on, “O” means power off. Notes for Maintenance This machine can only be maintained by a certified engineer. www.boxlight.com ©Boxlight 2022...
Page 9 If the charging power of the electronic device exceeds the rated charging power of this port, please do not directly use this port for charging. www.boxlight.com ©Boxlight 2022...
Page 11 1) Terminal Interface Number Items Function description Serial interface, used for mutual RS232 transfer of data between devices. Connect RJ45 terminals. Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc. www.boxlight.com ©Boxlight 2022...
Page 12 HDMI Connect to the devices with HDMI OUT* input function. Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc. SPDIF Carry multichannel sound via optical signals. www.boxlight.com ©Boxlight 2022...
Page 13 External computer image input. To open or shut down AC power supply. “I” means power on, “O” SWITCH means power off. AC power input, connect AC power AC IN supply. Note: 【*】 indicates partial terminals are optional. www.boxlight.com ©Boxlight 2022...
Page 15 PC's Windows key Space PC's Space key Alt+Tab PC's Alt+Tab key Alt+F4 PC's Alt+F4 key Numeric keys Numeric input Display Display channel information Not Used Input Pop up settings menu Return to Android system main Home screen www.boxlight.com ©Boxlight 2022...
Page 16 Green Enable or disable keys Yellow Enable or disable Touch Pop out or close the screen Blue freezing tools Turn off or turn on the screen backlight PC's Backspace Scroll Up Scroll Left Scroll Right Scroll Down www.boxlight.com ©Boxlight 2022...
Page 17 Return to the last operating Back interface PgUp Page Up PgDn Page Down CH.+/CH.- Not Used VOL+/VOL- Increase/reduce the volume F1-F12 PC's F1 - F12 function keys Note: All computer-related function keys are not available without a built-in computer. www.boxlight.com ©Boxlight 2022...
Page 18 If the battery is replaced by an incorrect type, it may lead to explosion. 4) Range of Remote Control Remote control can work normally within the range of 8 meters distance and 30 degrees left and right from the remote control. www.boxlight.com ©Boxlight 2022...
Page 19: Connection And Settings
USB Type-C cable to connect the computer b. VGA cable to connect to VGA output port of external computer, headphone audio cable to connect to external computer audio output interface, and a USB cable to connect to external computer www.boxlight.com ©Boxlight 2022...
Page 20 Recommended Computer Requirements: 1GB Available Hard Drive • 2.0GHz Processor • 1GB Memory • More than 256 color display cards • VGA OUT / HDMI OUT, Audio-OUT, USB Interface • Support Resolution: 800×600,1024×768, 1920×1080, or • 3840×2160 www.boxlight.com ©Boxlight 2022...
Page 21 After the cable is connected, plug in the power cord, and • switch the power on. Press Power to turn on the equipment. • Switch the input source to the HDMI channel in the main • menu. www.boxlight.com ©Boxlight 2022...
Page 22 (4) RS232 Connection After using the serial port cable to connect the central control equipment and machine, certain functions of the machine can be controlled via central control equipment, such as ON/OFF, and adjustment of sound volume, etc. www.boxlight.com ©Boxlight 2022...
Page 24: Simple Troubleshooting
Check sleep settings. automatically Check whether there is sudden power shut down outage. The system will automatically shut down if the interactive display’s external channel loses signal for 5 minutes. Please check the input and connection for a signal. www.boxlight.com ©Boxlight 2022...
Page 25 Check whether VGA is not well color, color is connected or has quality problem. incorrect Adjust chromatic and brightness or contrast in menu. Select automatic correction in menu. Display format that is not Adjust clock and phase position in supported menu. www.boxlight.com ©Boxlight 2022...
Page 26 Check to make sure that the signal wire No picture and no and the corresponding INPUT are sound firmly plugged in and properly connected. If in the internal computer mode, check whether the internal computer is on. www.boxlight.com ©Boxlight 2022...
Page 27 Check whether other electronic image dithering equipment or power tools are placed around the machine. Adjust chromatic and brightness or No color, color is contrast in menu. weak, or image is weak Check whether signal wire is firmly plugged in. www.boxlight.com ©Boxlight 2022...
Page 28 Only one speaker channel. has sound Check whether audio line is connected correctly. HDMI output Check the connection to the external without sound device. Make sure it is plugged in firmly. www.boxlight.com ©Boxlight 2022...
Page 29: Maintenance
Repeat for several times and pay attention not to squeeze water • on the display while cleaning. Clean Face Frame Please use dry, soft, lint-free cloth to wipe the front of the frame. www.boxlight.com ©Boxlight 2022...
Page 30 When a display will not be used for an extended period, such as holiday or summer break, please make sure to unplug the power cable to prevent any possible dangers caused by power surges, outages, lightning storms, etc. www.boxlight.com ©Boxlight 2022...
