3. Slide the transceiver firmly into the transceiver slot as far as it will go.
The transceiver will "snap" into place, and the transceiver's faceplate
should touch the face of the device. The following illustration shows
the transceiver being installed in an HP ProCurve Switch 2524.
4. Using the flat-bladed or Torx T-10 screwdriver, tighten the retaining
screws on the transceiver until they are secure, but be careful that you
do not overtighten the screws.
5. If the transceiver is installed in a Gigabit Stacking Module, reinstall the
module into the switch and make sure the switch is powered on, or if
the transceiver is installed directly into a switch, reset the switch, if
necessary, to initialize the transceivers. Please see the Installation Notes
on page 2 for information about initializing the transceivers in different
HP ProCurve networking devices.
Connect Network Cables to the Transceiver Port
The network cables identified in the table on the next page should be used
with the HP ProCurve High-Speed Transceivers.
4

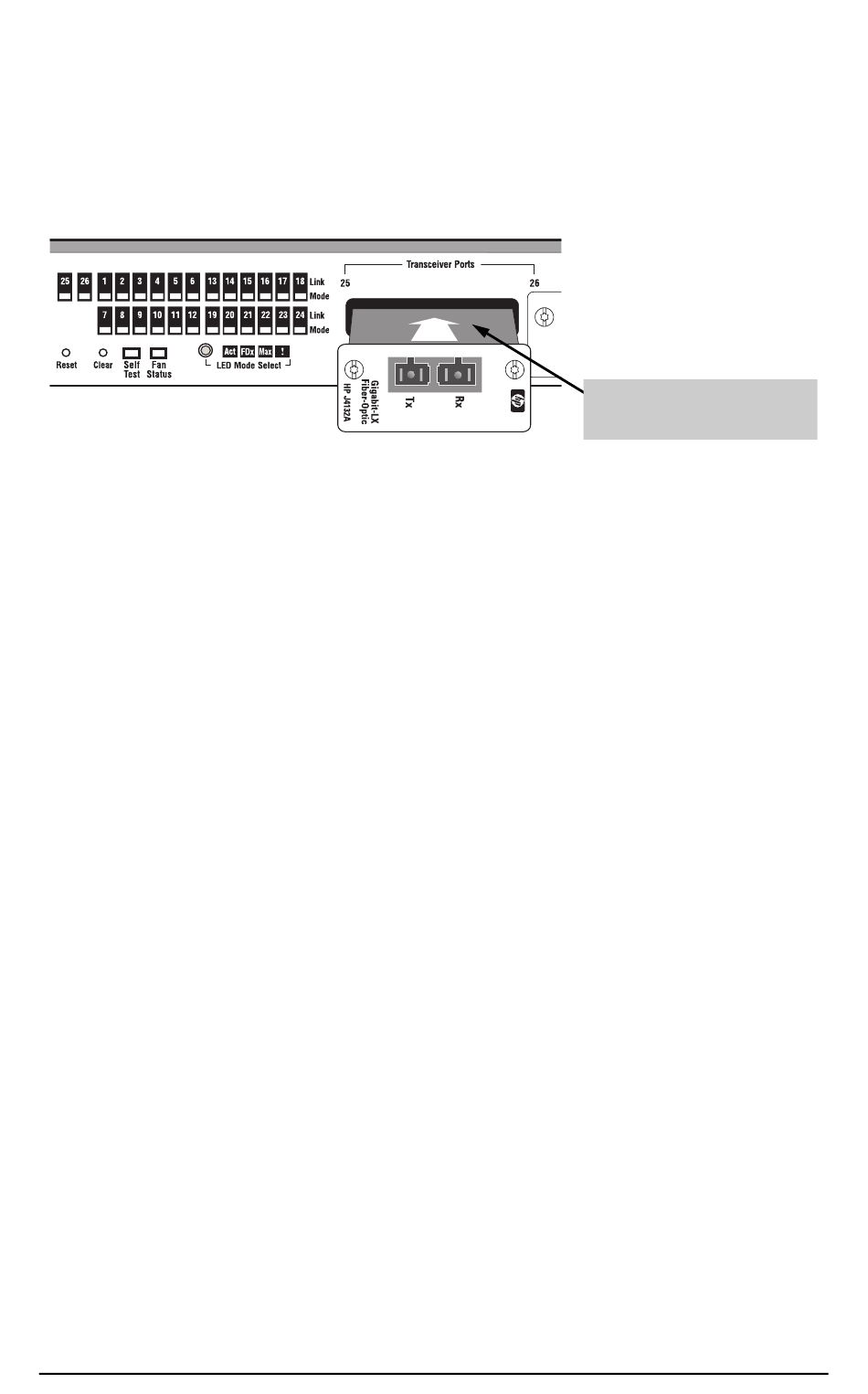

slide the transceiver into the
slot until it snaps into place
