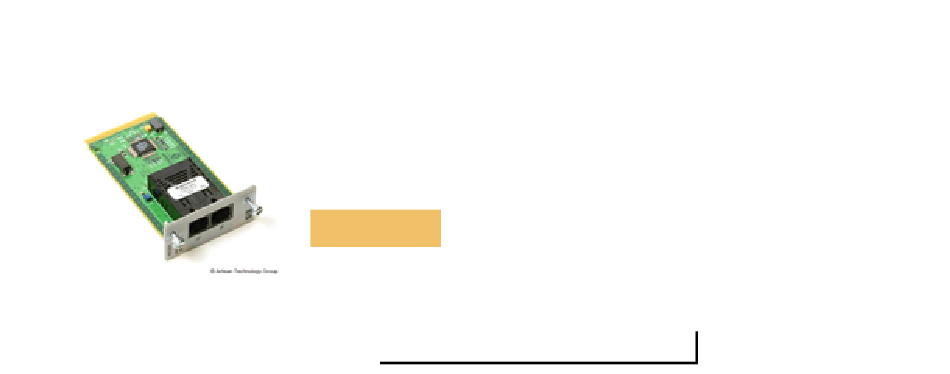

HP J4853A Procurve 100-FX SX Transceiver In Stock New From Surplus Stock Open Web Page https://www.artisantg.com/64257-2 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
Page 2
Page -1 Tuesday, April 2, 2002 3:23 PM installation guide hp procurve high-speed transceivers www.hp.com/go/hpprocurve Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 4
Introduction The HP Procurve High-Speed Transceivers can be installed into a number of HP Procurve networking devices to provide 100 Mbps and 1000 Mbps connections to other compatible network devices. This document describes how to install, verify, and troubleshoot the...
Page 5
Please see the installation guide for the switch or module for more information on installing the transceivers. Note: As of the printing of this manual, the HP Procurve Switch 2424M (J4093A) and its transceiver module, the HP Procurve Switch 2424M Gigabit Stacking Module (J4130A) are obsolete.
Page 6
Page 3 Tuesday, April 2, 2002 3:23 PM Installation Steps To install the HP Procurve High-Speed Transceivers, follow these steps: 1. Fully insert the transceiver into an HP networking device's transceiver slot until the transceiver “snaps” into place, and secure the transceiver with the retaining screws.
Page 7
The transceiver will “snap” into place, and the transceiver's faceplate should touch the face of the switch or module. The following illustration shows the transceiver being installed in an HP Procurve Switch Gigabit Transceiver GL Module. slide the transceiver into the slot until it snaps into place 4.
Page 8
100/1000-T Category 5 or better, 100-ohm UTP 100 meters or STP balanced cable. For 1000 Mbps (gigabit) operation, Category Note: The HP Procurve 100/1000-T 5E cabling or better is Transceiver is compatible with the recommended. IEEE 802.3ab standard including the “Auto MDI/MDI-X”...
Page 9
xcvrs_3-2002.fm Page 6 Tuesday, April 2, 2002 3:23 PM Note on 1000Base-T Cable Requirements. The Category 5 networking cables that work for 100Base-TX connections should also work for 1000Base-T, as long as all four-pairs are connected. But, for the most robust connections you should use cabling that complies with the Category 5E specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/TIA/EIA-568-A-5).
Page 10
xcvrs_3-2002.fm Page 7 Tuesday, April 2, 2002 3:23 PM To connect a fiber-optic cable to a transceiver: 1. For fiber-optic transceivers, notches remove the plastic dust covers from the cable connectors and from the transceiver port. Fiber cable 2. Press the connector into the jack with duplex SC connector so that the tabs on the connector...
Page 11
Complies with Canadian EMC Class A requirements As described on page 2 of this document, these transceivers are designed for operation with HP Procurve networking products with compatible transceiver slots, and are listed in the Declaration of Conformity for those products.
Page 12
xcvrs_3-2002.fm Page 9 Tuesday, April 2, 2002 3:23 PM Mode Conditioning Patch Cord for Gigabit-LX The following information applies to installations in which multimode fiber-optic cables are connected to a Gigabit-LX Transceiver. Unlike Gigabit-SX, which connects to only multimode fiber-optic cabling, Gigabit-LX can use either single-mode or multimode cable.
Page 13
Patch Cords that have been tested and verified to operate correctly with the HP Procurve Gigabit-LX Transceiver. The list is on the HP Procurve web site, http://www.hp.com/go/hpprocurve, in the Technical Support section. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 14
You can use the console interface, or, if you have configured an IP address on the switch, use the web browser interface, or HP TopTools for Hubs & Switches network management software to determine the state of the port and re-enable the port if necessary.
Page 15
For additional troubleshooting, you can also use the device's console interface, the switch’s web browser interface, or HP Top Tools for Hubs & Switches to trouble- shoot and configure the High-Speed Transceiver port. See the switch's Management and Configuration Guide for more information.
Page 17
xcvrs_3-2002.fm Page 14 Tuesday, April 2, 2002 3:23 PM Technical information in this document is subject to change without notice. ã Copyright Hewlett-Packard Company, 2000, 2002. All rights reserved. Reproduction, adaptation, or translation without prior written permission is prohibited except as allowed under the copyright laws.
