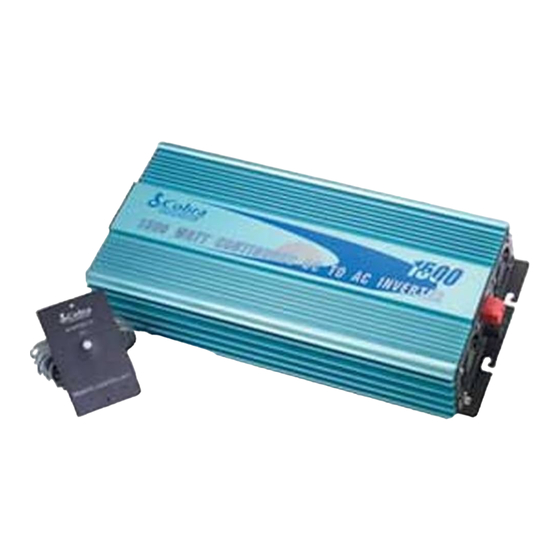

1500 WATT MARINE POWER INVERTER
CPI M1500
Nothing Comes Close To A Cobra
®
Introduction
Thank you for purchasing the CobraMarine
Properly used, this product will give you many years of reliable service.
Operating Instructions
How Your CobraMarine
The CobraMarine
built to take low voltage DC (Direct Current) power from your boat, RV, automobile or
other low voltage power supplies and CONVERT it to standard 115 volt AC (Alternating
Current) power like the current you have in your home. This conversion process
thereby allows you to use many of your household appliances and electronic products
in automobiles, RVs, boats, tractors, trucks and virtually anywhere else.
Customer Assistance
Customer Assistance
Should you encounter any problems with this product, or not understand its many
features, please refer to this owner's manual. If you require further assistance after
reading this manual, Cobra
For Assistance In the U.S.A.
Automated Help Desk English only.
24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators English and Spanish.
8:00 a.m. to 6:00 p.m. CT, Monday through Friday (except holidays)
773-889-3087 (phone).
Questions English and Spanish.
Faxes can be received at 773-622-2269 (fax).
Technical Assistance English only.
www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Printed in China
Part No. 480-077-P
A1 English
English
Our Thanks To You
CPI M1500 Power Inverter.
Power Inverter Works
Power Inverter is an electronic product that has been designed and
®
Electronics offers the following customer assistance services:
© 2003 Cobra
®
Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPI M1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cobra CPI M1500

  • Page 1 Printed in China Part No. 480-077-P A1 English English Our Thanks To You ™ CPI M1500 Power Inverter. ™ Power Inverter Works ™ Power Inverter is an electronic product that has been designed and ® Electronics offers the following customer assistance services: ©...
  • Page 2: Table Of Contents

    Controls/Indicators and Product Features Introduction Features • GFCI Outlet with • Volts and Amps Meters Two AC Receptacles • Remote On/Off Operation • Conformal Coating* • Automatic Thermal • Tinned Wiring* Protection/Shutdown Volts & Amps Meters Overload & Over Temp. Indicators On/Off Power Switch Status Indicator...
  • Page 3: Important Safety Information

    Important Safety Information Introduction Important Safety Information Before installing and using your CobraMarine these general precautions and warnings. Caution and Warning Statements To make the most of this inverter, it must be installed and used properly. Please read the installation and operating instructions carefully before installing and using it.
  • Page 4 Important Safety Information Introduction WARNING Power inverters contain components that may produce arcs or sparks. To prevent fire or explosion, do not install the inverter in areas or compartments containing batteries or flammable materials or in locations that require ignition-protected equipment. WARNING To reduce the risk of fire, do not cover or obstruct the ventilation openings.
  • Page 5: Quick Evaluation Before Installation

    • 1. Turn the inverter Off (see page 15 for details). On/Off Switch to Off If the power source is a DC power supply, switch it Off as well. 2. Connect cables to Power Input Terminals (see page 8 for details).
  • Page 6: Installation

    Installation Requirements Installation Installation Requirements The inverter must be installed in an area that meets all of the following requirements: A. Dry Do not place in an area where water can drip or splash on the inverter. B. Cool Ambient air temperature should be between 30°F and 105°F (0°C and 40°C). The cooler the better.
  • Page 7: Connecting Cables

    To Connect the Cables Between the Inverter and the Battery: 1. Turn the On/Off Switch on the inverter to the Off position. If the power source is a DC power supply, switch it Off as well. Turn On/Off Switch to Off 2.
  • Page 8 Connecting Cables Installation All power connections to your CobraMarine ™ Power Inverter must be Positive To Positive and Negative To Negative. CAUTION Electrical installations must meet local and national wiring codes, and should be performed by a qualified electrician. CAUTION Do not connect the inverter and another AC source (such as a generator or utility power) to the AC wiring at the same time.
  • Page 9: Power Consumption

    100 Watts x 2 hours 115 Watts x 3 hours = 200 Watt-Hours = 345 Watt-Hours 4. Divide the watt-hours by ten (10) to determine how many power supply’s (12 volt) ampere-hours will be consumed. 12 English Installation Ground Wiring •...
  • Page 10: Remote On/Off Switch

    On (see “Installation” page 6). To Turn the Power Inverter On: 1. If a DC power supply is being used as the power source, switch it On. 2. On the left side panel, switch the On/Off Switch to On.
  • Page 11: Remote On/Off Switch

    Remote On/Off Switch Operation NOTE The On/Off Switch turns the control circuit in the inverter On and Off. It does not disconnect power from the inverter. When the switch is in the Off position, the inverter draws no current from battery. When it’s in the On position, but no power is being supplied to the load, the inverter draws less than 500 milliamperes from the battery.
  • Page 12: Power And Protection Indicators

    Power and Protection Indicators Operation Power and Protection Indicators The Power and Protection Indicators include, along with an audible alarm, an over temperature indicator, an amps meter, a volts meter and an overload indicator. Over Temperature Indicator Temperature Overload: The indicator light will turn On, then the inverter will shutdown. The inverter will continue to check for appropriate temperature levels while trying to restart the load.
  • Page 13: Operating Limits

    Operating Limits Operation Operating Limits Power Output The inverter can deliver 1500 watts for about 60 minutes. The inverter must cool for 15 minutes before it can resume operation at 1500 watts. Note: The wattage rating applies to resistive loads. The inverter will operate most AC loads within its power rating.
  • Page 14: Specifications

    Specifications Operation Specifications Continuous output power (1 hour) ........1500w Surge rating (0.1 second) .
  • Page 15: Maintenance

    Maintenance and Product Service Customer Assistance Maintenance Very little maintenance is required to keep the inverter operating properly. The exterior of the unit should be cleaned periodically with a damp cloth to prevent accumulation of dust and dirt. At the same time, tighten the screws on the DC input terminals. Be sure vents and fans are free of dust or debris.
  • Page 16: Accessories And Order Form

    Accessories and Order Form Customer Assistance Name Address (No P.O. Boxes) City Telephone Credit Card Number Amount Shipping/Handling* Customer Signature $10.00 or less ..$3.00 $10.01-$25.00 ..$5.50 $25.01-$50.00 ..$7.50 $50.01-$90.00 .
