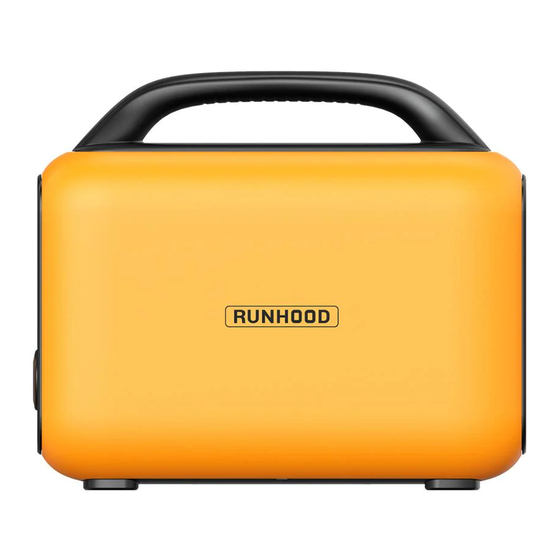

RUNHOOD HE600-B User Manual

Portable power station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
230V 50Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE600-B and is the answer not in the manual?

Questions and answers

Related Manuals for RUNHOOD HE600-B

Summary of Contents for RUNHOOD HE600-B

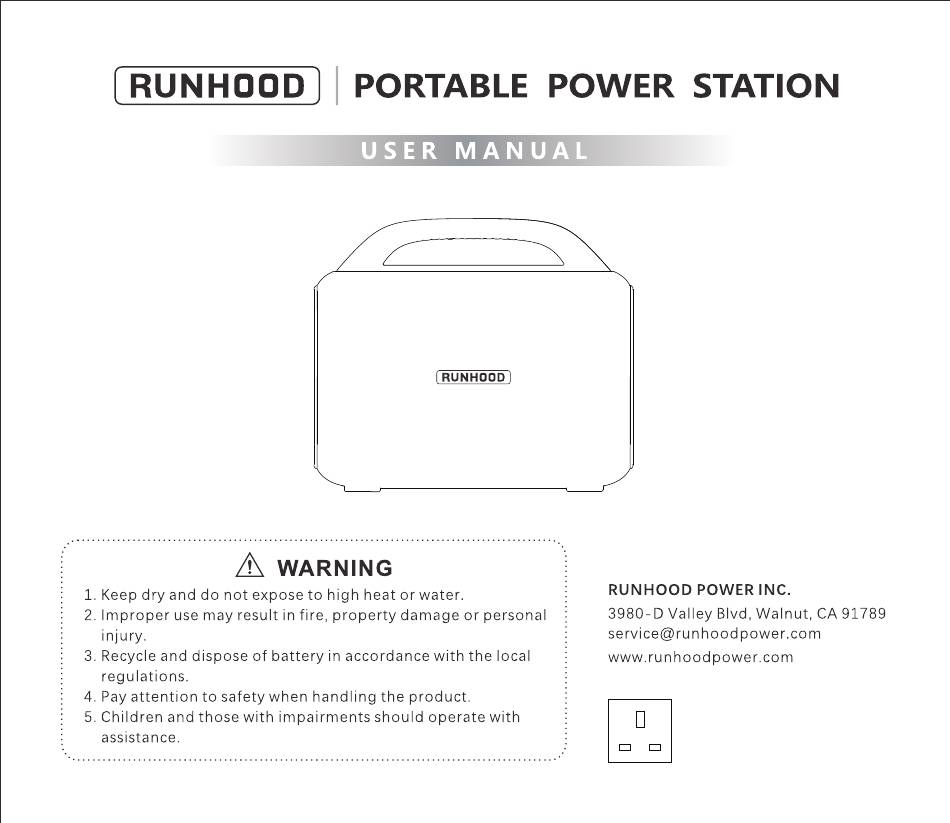

  • Page 1 230V 50Hz...

  • Page 2: Table Of Contents

    AC ENGINE 80 (AE80-B) USB ENGINE 256 (UE256) ENERGY BAR 324 (EB324) ACCESSORIES DIY COMBINATIONS 648Wh 600W (HE600-B * 1 + EB324 * 2) 324Wh 80W (AE80-B + EB324) 324Wh 256W (UE256 + EB324) RECHARGE METHODS INSTRUCTIONS OF RECHARGING EB324 THROUGH HE600-B...

  • Page 3: Product Safety Guidelines

    Please contact our service department for assistance on such occasions. Only use RUNHOOD batteries with this product. RUNHOOD takes no responsibility for any damage caused by non- RUNHOOD Power Station batteries. The discharging temperature of Energy Bar 324 is -68~113°F/-20~45°C, while the charging temperature is 32~104°F/0~40°C.

  • Page 4: Product Charging

    Clean outlets and surfaces to avoid abrasion, energy loss and charging failures. PRODUCT CHARGING Always use RUNHOOD Power Station approved charging cables. RUNHOOD takes no responsibility for any damage caused by using non-RUNHOOD charging cables. When charging, please place the product on the ground with no flammable or combustible materials around. To prevent accidents, never leave the device unattended during charging.

  • Page 5: Runhood Portable Power Station

    NOTICE: Single module DOES NOT have any function unless combined with necessary modules. Combinations are found in the section of "DIY COMBINATIONS" and "RECHARGE METHODS" . INTRODUCTION OF MODULES HOST ENGINE 600 (HE600-B) LED FLASHLIGHT MASTER POWER ON/OFF DC INPUT: ADAPTER/CAR CHARGER/...
  • Page 6 2. MASTER POWER ON/OFF Press and hold the power button to turn RUNHOOD Power Station on or off. Press and hold for 1 s to turn on; Press and hold for 3 s to turn off. When the RUNHOOD Power Station is on, the LCD Display Screen will light up.
  • Page 7 The number indicates remaining charging/discharging time based on current power consumption rate of HE600-B shown in minutes or hours. The remaining charging time is displayed when charging, while the remaining discharging time is displayed when discharging. The remaining discharging time is displayed when it is charging and discharging simultaneously.
  • Page 8 Shows the current output power of HE600-B in watts. ACTIVE ENERGY BAR INDICATOR When EB324 is installed and the battery icon is displayed on HE600-B, it means the EB324 installed is normal. FAN INDICATOR Fan icon is displayed when the fan is working.
  • Page 9 Car and OVERLOAD icons flash together with Car Charger warning buzzer. Disconnect appliances and press Overload DC ON/OFF button to reset. DC and OVERLOAD icons flash together with a DC5521 Round warning buzzer. Disconnect appliances and press Port Overload DC ON/OFF button to reset. AC and OVERLOAD icons flash together with Inverter Output warning buzzer.
  • Page 10 Allow the product to reach operating temperature and reset automatically. If the device does not reset, please contact our product specialists at service@runhood- power.com. When this icon is displayed, there is a major failure. Check for strong static or a magnetic field first, and restart the device.
  • Page 11 When two battery ICONS are displayed simultane- ously, this indicates the batteries of the system are Battery working normally. When one battery icon fails to be displayed, this indicates that only one battery is Warning working normally. The system will limit the total output power of AC and DC within 600W.
  • Page 12 2 * USB-A QC 3.0 28Wmax (5V DC/3A, 9V DC/3A, 12V DC/2.4A), total 56W max. DC Output (496W) 2 * DC 12V 5A 60W, total 120W max. 1 * Car Port 12V 10A 120W max. Discharging -68~113°F / -20 ~45°C Temperature Charging 32~104°F / 0 ~40°C Temperature HE600-B SPECIFICATION...

  • Page 13: Ac Engine 80 (Ae80-B)

    AC ENGINE 80 (AE80-B) AC OUTLET WORKING STATUS INDICATOR 1. AC OUTLET Supports appliances with rated power of 80W or less. It does not support all appliances with rated power over 80W. Please confirm to make sure the appliances are workable before use to avoid negative impact. 2.

  • Page 14: Usb Engine 256 (Ue256)

    USB ENGINE 256 (UE256) USB-C PD 100W INPUT/OUTPUT USB-A FAST CHARGE OUTPUT 28W * 2 USB-C PD 100W OUTPUT 1. USB C PD 100W INPUT OUTPUT Input: USB-C support 100W input. Output: USB-C can charge devices including laptops, tablets, smart phones, and any other devices with USB-C ports.

  • Page 15: Energy Bar 324 (Eb324)

    Model UE256 Net Weight 0.49 lbs. / 0.22 kg approx. Dimension 2.4 * 2.3 * 4.1 in / 6 * 5.7 * 10.3 cm Input 1 * USB-C PD 100Wmax (5V DC/3A, 9V DC 3A, 15V DC/3A, 20V DC/5A) 2 * USB-C PD 100Wmax（5V DC/3A, 9V DC3A, 15V DC/3A, 20V DC/5A), total 200W max.

  • Page 16: Accessories

    Model E 324 Net Weight 3.9 lbs. / 1.77 kg approx. Dimension 10.2 * 2.3 * 4.1 in / 26 * 5.7 * 10.3 cm Capacity 324Wh Battery Li-ion NMC Discharging Temperature -68 -113°F / -20 - 45°C Charging Temperature 32 - 104°F / 0 - 40°C Cycle Life 1000 times (80%)
  • Page 17 DC Y CABLE Notice: with DC 6530 port. SOLAR CHAGRING CABLE（MC4-DC 6530） SOLAR PANEL Notice: highly recommended RUNHOOD's Seri 100W with 15V-23V.

  • Page 18: Diy Combinations

    DIY COMBINATIONS 648Wh 600W (HE600-B * 1 + EB324 * 2) INR22/71[(3P6S) 2P] E /-20+45/80 This is a power station of 648Wh, 600W. It is highly portable with a weight of only 16 lbs. The design of swappable battery provides virtually unlimited durability. With an extra pair of EB324s, it can easily reach the capacity of 1296Wh.

  • Page 19: 324Wh 80W (Ae80-B + Eb324)

    324Wh 80W (AE80-B + EB324) MINI POWER STATION of 324Wh to provide an AC output of 80W. 324Wh 256W (UE256 + EB324) SUPERPOWER BANK of a capacity of 324Wh with 2 USB-C PD 100W outputs and 2 USB-A QC 28W outputs has a maximum total power output of 256W.

  • Page 20: Recharge Methods

    IMPORTANT NOTICE: The rechargeable module is EB324. Other modules are only application interfaces, not a storage of energy. There are two ways to recharge the EB324: one with HE600-B and the other with UE256. You need to combine the EB324 with HE600-B or UE256 for recharging the EB324. We highly recommend to recharge your EB324 in pairs.

  • Page 21: Instructions Of Recharging Eb324 Through Ue256

    INSTRUCTIONS OF RECHARGING EB324 WITH UE256 1. Connect EB324 with UE256. 2. Connect the recharge cable to the USB-C PD 100W IN/OUT port to recharge. 3. When charging, DO NOT remove the EB324 from UE256 4.The USB-C recharge cable and adapter are not included in our product range. Users can purchase the cable and adapter at their own preference from the market.

  • Page 22: Instructions Of Multy Solar Panel Connection

    1. The DC input of HE600-B can reach 200W max. You can use a maximum of two RUNHOOD Solar Panels to recharge. 2. Use the DC Y cable to connect two solar panels in a parallel connection. 3. To recharge with HE600-B and UE256, please refer to the recharge methods instruction above.
