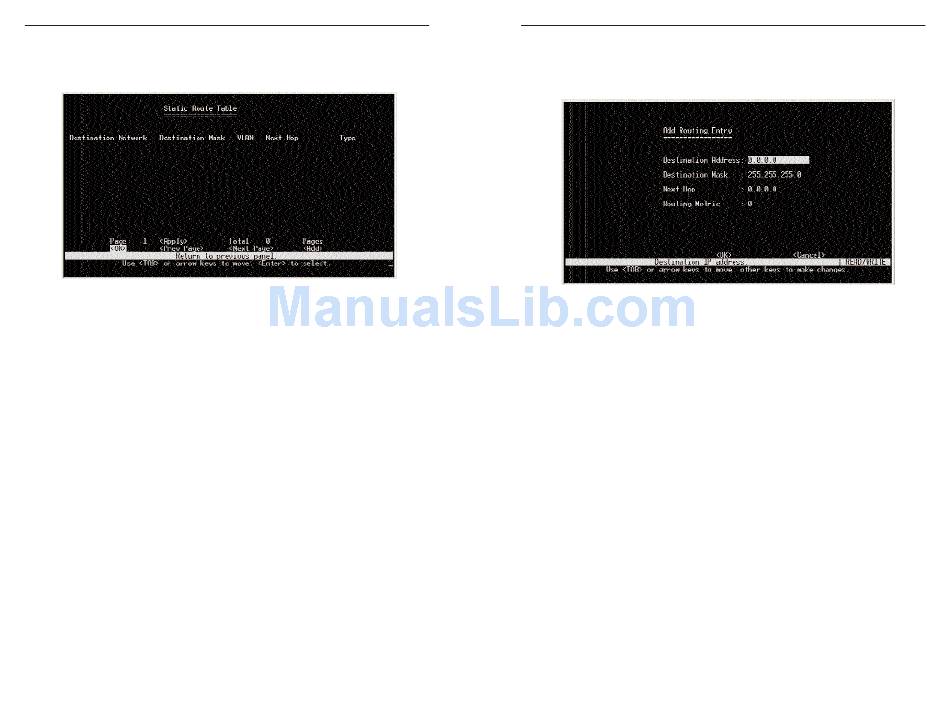

Static Route Table
The Static Route Table screen is used to configure a static route.
• Destination Network - A destination network, subnet, or host.
• Destination Mask - The subnet mask that specifies the bits to match.
A routing entry will be used for a packet if the bits in the address set by
the destination mask match the destination network.
• VLAN - The VLAN within which the gateway or destination address
resides.
• Next Hop - The IP address of the router at the next hop.
• Type - The IP route type for the destination network.
Direct - A directly connected subnetwork
Indirect - A remote IP subnetwork or host address
Myself - A switch IP address on a specific IP subnetwork
Bcast - A subnetwork broadcast address
Mcast - An IP multicast address
Invalid - An illegal IP address to be filtered
Select Apply to make changes. Select OK to return to the previous panel.
Select Prev Page to view the previous page. Select Next Page to view the next
page. To display a specific page, set the page number in the Page field and then
press Apply. Select Add to add a routing entry.
74
Instant EtherFast
Series
®
EtherFast
Layer 3 Management 24-Port 10/100 + 2-Port Gigabit Ethernet Switch
®
Add Routing Entry
The Add Routing Entry screen is used to add a routing entry.
•
IP Address - IP address of static ARP entry.
•
MAC Address - MAC address of static ARP entry.
•
Next Hop - The IP address of the router at the next hop.
•
Routing Metric - Indicate the number of hops to the destination
network.
Select OK to return to the previous panel. Select Cancel to cancel any changes.
75
