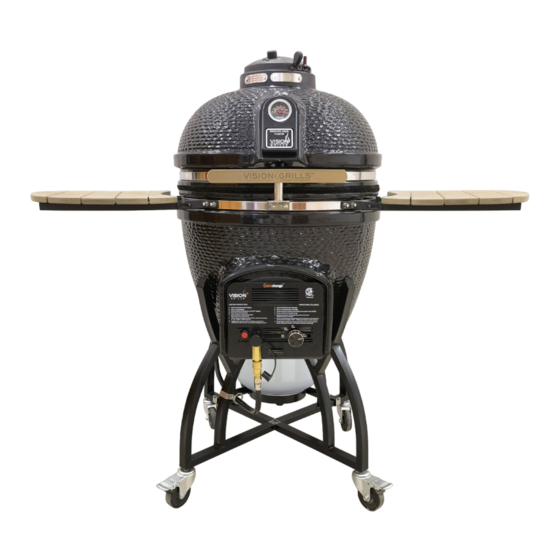

Vision grills PROFESSIONAL C HYBRID Manual

Vision grills PROFESSIONAL C HYBRID Manual

Char-gas ceramic kamado grill

Advertisement

Quick Links

#C-4C1F1-H
In this manual we provide the basics to get you cooking and invite you to our website, www.visiongrills.com,
where we share recipes, detailed Use & Care information and contact information if you need more help. From
our entire team here at Vision Grills, thanks for your purchase and welcome to becoming the destination eatery
in your neighborhood!
Cooking with your Kamado
Your new Vision Grills Kamado is the complete outdoor
cooking appliance that allows you to sear, grill, bake and
smoke all types of food. For best results, we recommend
using natural lump charcoal made from hardwoods.
Compared to briquettes, natural charcoals start faster, burn
cleaner and longer, reach higher temperatures and produce
less ash. Left-over natural charcoal also relights for re-use.
Before re-starting the grill, knock off excess ashes to any
remaining charcoal. Routinely empty ashes, but only empty
ashes when grill is cold. NOTE: USE OF LIGHTER FLUID,
ACCELERANTS OR CHARCOAL BRIQUETTES CONTAINING
ACCELERANTS CAN COMPROMISE THE CERAMIC AND VOID
THE WARRANTY.
Starting your Vision Kamado Grill is simple and fast: Open
grill lid, open top and bottom vents wide open, fill the inner
fire bowl with enough charcoal to just cover the air holes,
then light the charcoal using either an electric starter or
approved grill starters. After several coals are burning,
spread evenly, close lid, adjust top and bottom vents,
and wait for the Kamado to reach your desired cooking
temperature. As needed, add more charcoal by using the flip
grate feature, being careful not to burn yourself with the hot
food or cooking grate.
CHAR-GAS
provides a variety of ways to infuse different tastes into your
foods that turns weekend grillers into neighborhood chefs.
Our Vision Grills Kamado builds on this heritage with fresh
aesthetics, safety and convenience features, easy-lift lid
with spring assist and high quality materials to define a new
industry standard for design and innovation. The thick ceramic
construction of our grill provides superior thermal insulation
allowing you to grill, cook, bake or smoke regardless of the
season, from the hot summer days in our home town of St.
Louis to the cold snowy days in Ottawa, Canada.
Patented
C-SERIES
CERAMIC KAMADO GRILL
Welcome
Welcome to Kamado cooking! Our Vision Grills
Kamado is based on 3,000+ years of clay pot
cooking from around the world. Over generations
our ancestors have continued to refine kamado
techniques for grilling, smoking, baking and
cooking all types of meats, poultry, fish and
vegetables. Kamado cooking locks in moisture and
DANGER
!
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your
fire department.
WARNING
!
• Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
•Any LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL C HYBRID and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision grills PROFESSIONAL C HYBRID

  • Page 1 In this manual we provide the basics to get you cooking and invite you to our website, www.visiongrills.com, where we share recipes, detailed Use & Care information and contact information if you need more help. From our entire team here at Vision Grills, thanks for your purchase and welcome to becoming the destination eatery in your neighborhood!
  • Page 2 GRILL SET-UP Step 1: Cart Assembly Step 3: Grill Assembly STEP 1 STEP 1 STEP 1 STEP 1 STEP 1 STEP 1 STEP 3a Take all parts out of grill before lifting. The grill First remove the bolts, washers and is heavy and will require 2 people to lift it into spring washers from the two “X”...
  • Page 3: Grill Parts

    GRILL PARTS PART NAME PART NUMBER Top Vent VGKP-F SS2 Bakelite Tab with Stopper Pin VGC TV-CA-TSP Ceramic Dome Top VGKP CD-TCD1 Top Ring Assembly VGKP RA-B1 Fire Bowl VGKP FP-1 Bottom Ring Assembly VGKP RA-B2 Right Front Side Shelf Bracket VGKP TPSB-RF Right Back Side Shelf Bracket VGKP TPSB-RB...
  • Page 4: Setting Temperature

    Electric Starter in Lighter Port (Sold Seperately) SETTING TEMPERATURE TOP VENT BOTTOM VENT VISION Grills Kamado cooking temperatures 500º + F are controlled by adjusting the calibrated top SEARING and bottom vents. 260º + C *Caution – Decide if you’re cooking low and slow, then do not let the grill get too hot.
  • Page 5 STARTING GAS INSERT Step 5: Place Heat Diffuser Lava Stone Spread bracket so it makes an “X” shape and lower onto fire bowl, allowing the ATTENTION: The grill needs to be cooled before switching from the bracket to rest on edge of bowl. Lower Lava Stone onto the bracket. Replace Ash Drawer to the Quickchange Gas Insert.
  • Page 6 4. Do not remove your Fire Bowl. Clean ash by brushing excess ash into ash drawer and removing. The purpose of the Fire Bowl is to hold your lump charcoal and will continue to work even if it is cracked. www.visiongrills.com help@visiongrills.com 1-877-917-4273 Vision Grills 1531 Fairview Avenue, Suite B, St. Louis, MO 63132...
  • Page 7: Warranty

    If you cannot register online, contact Vision Grills customer service at (877) 917-4273 or email help@visiongrills.com. If any product covered by this Warranty is defective due to a covered warranty condition, such product will, at the option of Vision Grills, be repaired to its original condition or replaced with a comparable new product or part.
  • Page 8: Maintenance And Troubleshooting

    Handling Code, B149.2. 8) If parts are missing, contact Vision Grills at (877) 917-4273 or contact Vision 2) This outdoor cooking gas appliance shall be used only outdoors and shall not be Grills via e-mail at help@visiongrills.com or through the website at www.
