Tyco AQUAMIST Red-E Mist Supply Skid Manual

AQUAMIST
Red-E Mist Supply Skid
Table of
Contents
Sections
General Description . . . . . . . . . . . . . 1
Training . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Data . . . . . . . . . . . . . . . . . 3
Skid Operation . . . . . . . . . . . . . . . . . 3
System Components . . . . . . . . . . . . 6
Planning . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . 7
Setting the Skid for Service . . . . . . 7
System Reset after Discharge . . . . 8
Care and Maintenance . . . . . . . . . . 9
Limited Warranty . . . . . . . . . . . . . . 10
Ordering Procedure . . . . . . . . . . . . 10
Figures
FIGURE 1
AQUAMIST Red-E Mist Supply Skid
Replacement Parts, Accessories
and Typical Installation Piping . . . . 2
FIGURE 2
Water Supply Tank Assembly
600 Gallon (2271 Liter) . . . . . . . . . . . 3
FIGURE 3
ASME/DOT Nitrogen Supply Skid
600 Model . . . . . . . . . . . . . . . . . . . . . 4
FIGURE 4
ASME/DOT Nitrogen Supply Skid
1200 Model . . . . . . . . . . . . . . . . . . . . 4
FIGURE 5
TPED/CE Nitrogen Supply Skid
600 Model . . . . . . . . . . . . . . . . . . . . . 5
FIGURE 6
TPED/CE Nitrogen Supply Skid
1200 Model . . . . . . . . . . . . . . . . . . . . 5
FIGURE 7
Nitrogen Cylinder with CV-98
Valve and Actuation Stack . . . . . . . 6
Graphs
GRAPH A
Nitrogen Cylinder
Temperature vs . Pressure . . . . . . . . 9
Tables
TABLE A
AQUAMIST Red-E Mist Supply
Skid Part Number Selection . . . . . 10
Page 1 of 10
General
Description

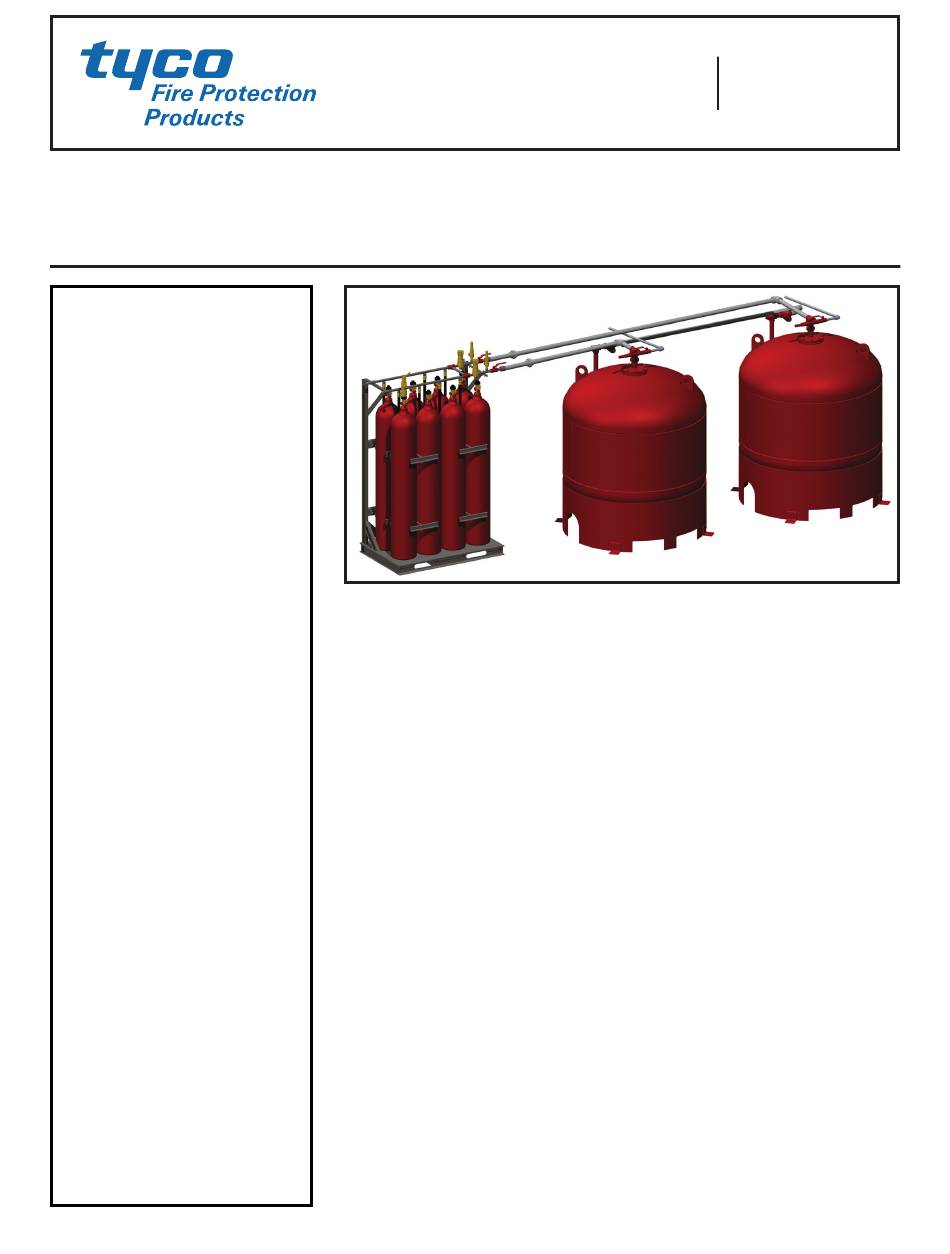

The TYCO AQUAMIST Red-E Mist
Supply Skid is a tank-based nitrogen-
propelled water supply unit for the
Ultra Low Flow AQUAMIST System.
The Red-E Mist Supply Skid consists
of a bank of nitrogen supply cylinders
and one or two water supply tanks. The
nitrogen is regulated to pressurize the
head space inside the tank, pressuriz-
ing the water used to supply the Ultra
Low Flow AQUAMIST System.
The Red-E Mist Supply Skid is avail-
able in two sizes. The Model 600 skid
consists of one 600 gallon (2271 liter)
water supply tank with four nitrogen
supply cylinders. The Model 1200 skid
consists of two 600 gallon (2271 liter)
water supply tanks with eight nitrogen
supply cylinders. Refer to Table A for
the maximum capacity and pressure of
each skid arrangement. The skids can
be ordered in configurations conform-
ing to either ASME/DOT or TPED/CE.
SEPTEMBER 2015
Worldwide
www.tyco-fire.com
Contacts
Training
Training provided by Tyco Fire Protec-
tion Products (TFPP) is mandatory prior
to bidding, designing, procurement of
components, installation, and mainte-
nance of the TYCO AQUAMIST Red-E
Mist Supply Skid. These systems
are unique in their intent and design.
Anyone involved at any level must thor-
oughly understand the limitations and
capabilities of such systems.
TFP2272
